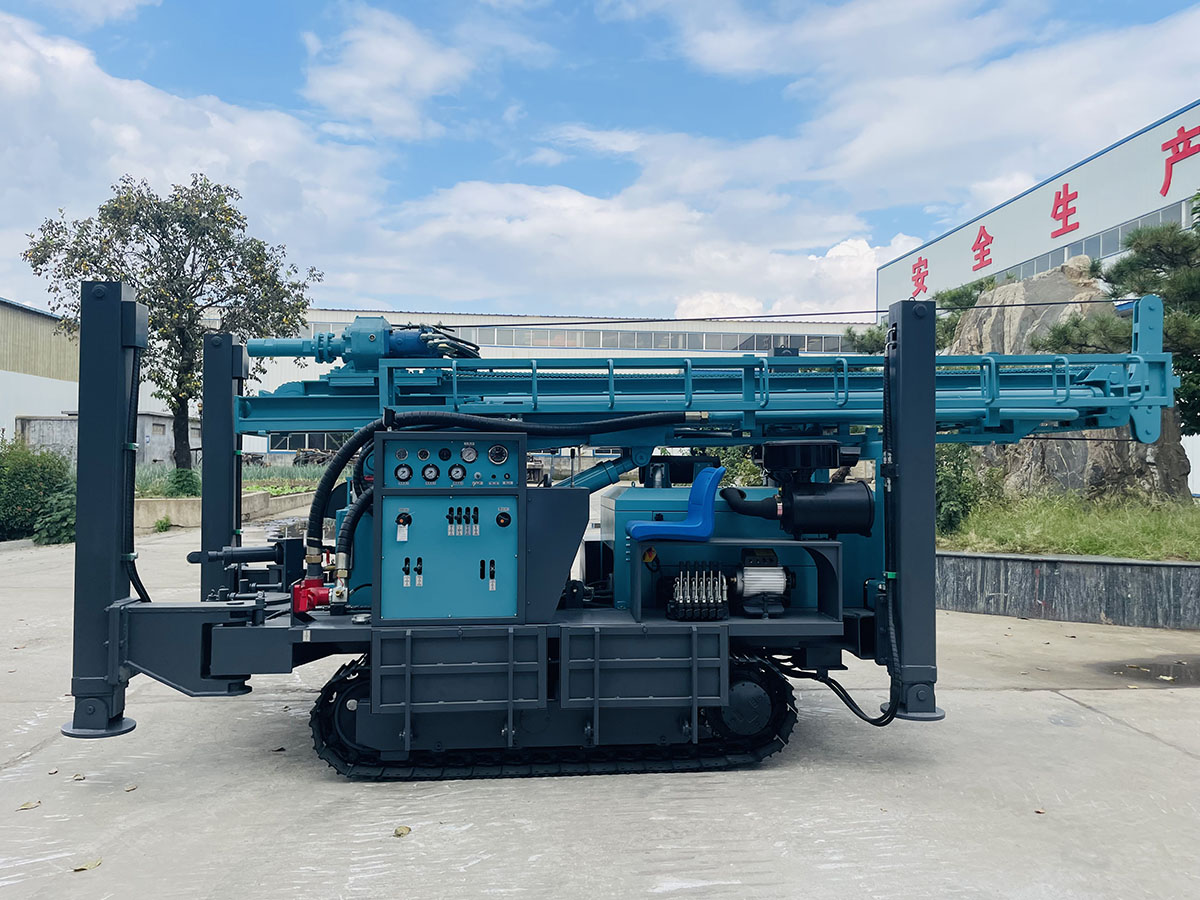

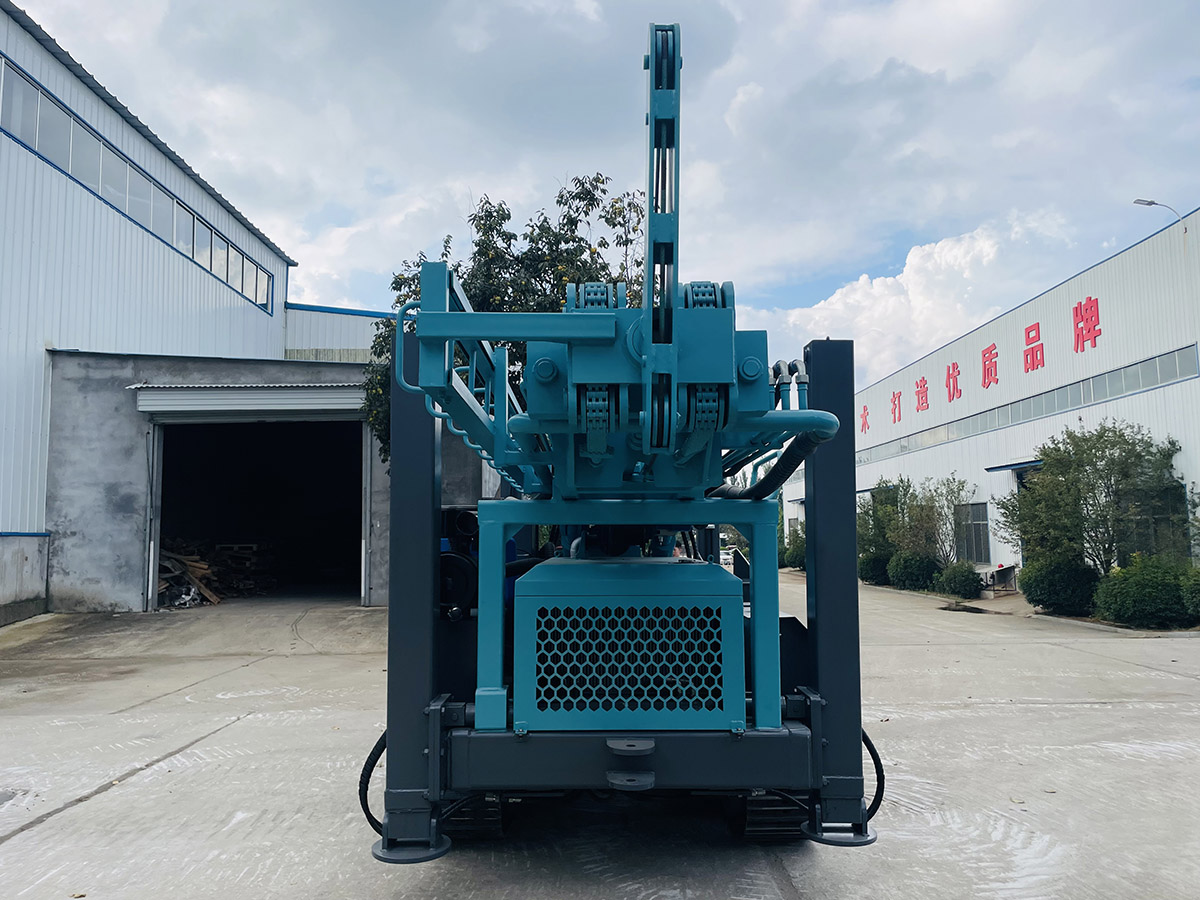

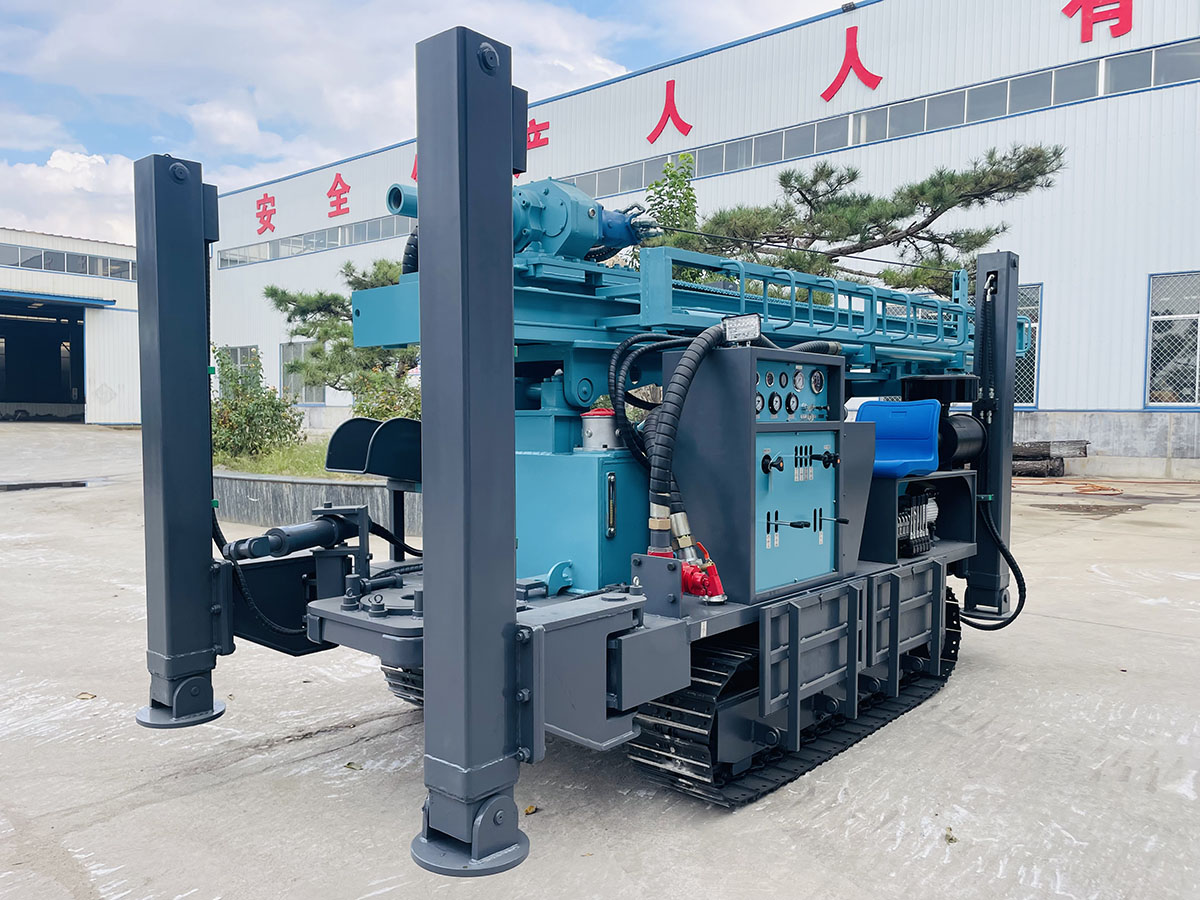

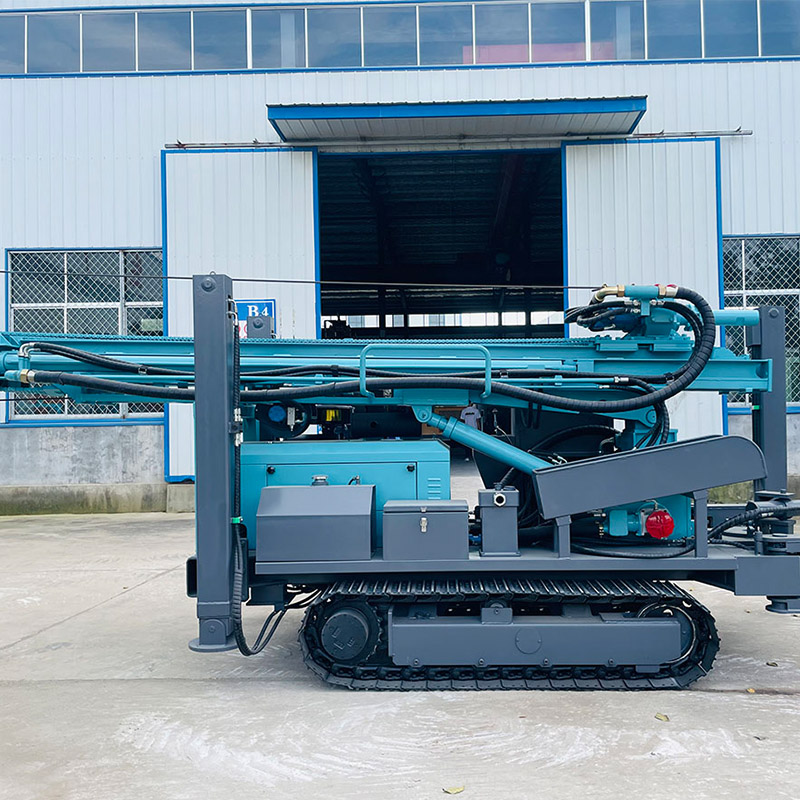

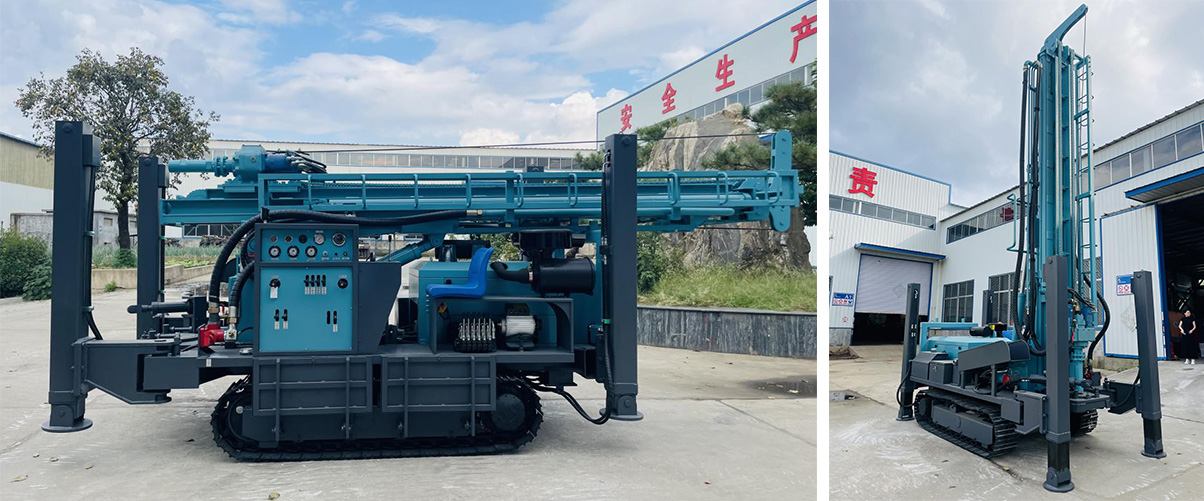

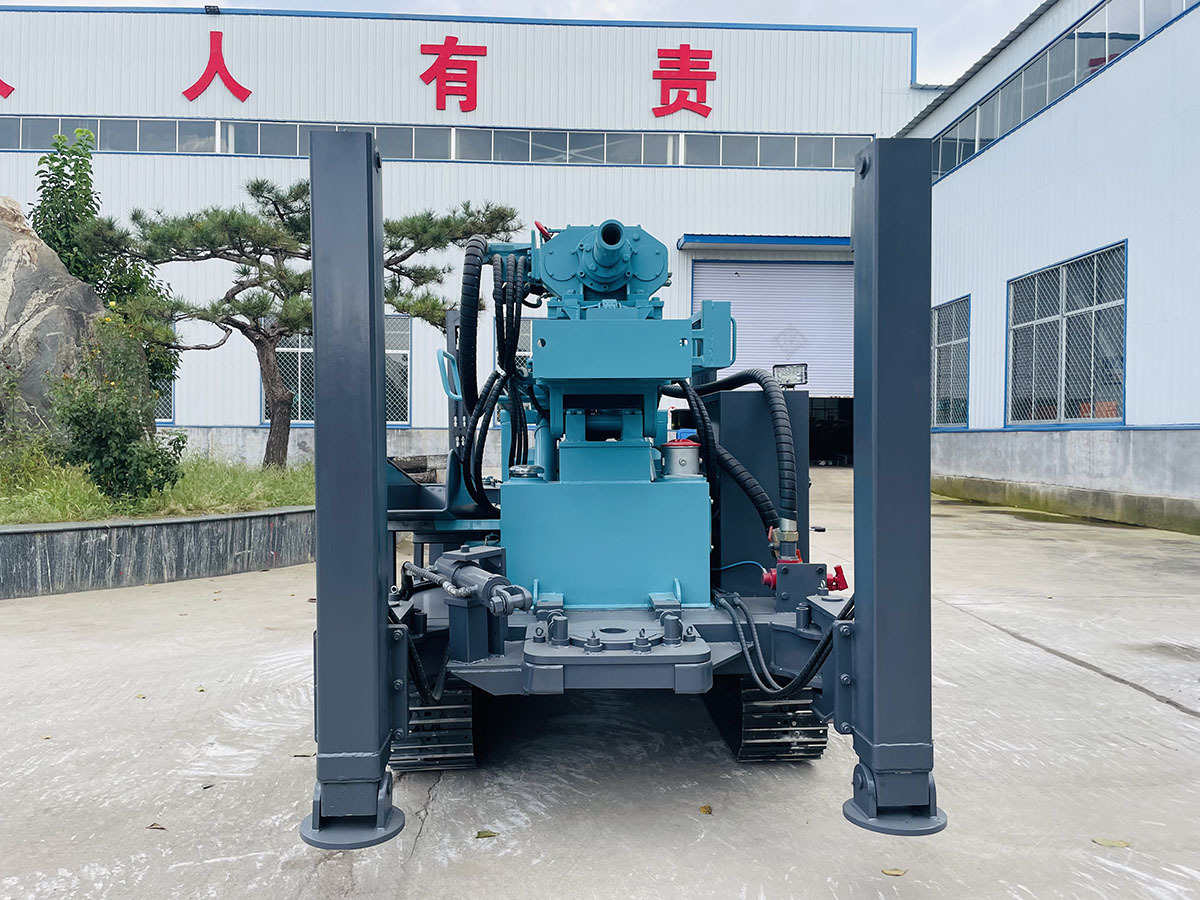

300m Crawler Water Drilling Rig
1. Box-style console for clear layout and easy operation in tight spaces.
2. 85kW Yuchai turbo diesel engine delivers strong, efficient, and consistent performance.
3. 50-50-25 triple pump offers high pressure, large flow, and low energy use.
4. Advanced dual filtration ensures reliable engine performance in tough environments.
5. Stable, low-vibration winch with flexible setup; lifts up to 2 tons.
6. Feida-built high-strength gearbox enables fast tunneling with low fuel consumption.
7. Durable steel tracks handle heavy loads and rough terrain with ease.
8. 24V/22W generator supports welding and various on-site power needs.
9. Steel foldable pedal offers flexible, operator-friendly handling.
10. Reinforced legs enhance stability on uneven or rugged job sites.
Introduction
This 300m crawler water drilling rig is widely applied across five key sectors, including agricultural water conservancy, rural and urban water supply, geothermal energy development, mine exploration, and emergency rescue operations, leveraging its superior mobility, robust terrain adaptability, and efficient drilling performance. In agriculture, it rapidly secures irrigation water sources in arid regions; in remote mountainous areas or post-disaster scenarios, its tracked chassis overcomes road access limitations to provide direct drinking water wells for settlements or temporary shelters. In the energy sector, it supports deep drilling for geothermal resource exploitation; in mining operations, it efficiently constructs hydrogeological exploration holes and integrated prospecting-production boreholes. During extreme environmental crises, it serves as a lifeline for emergency water supply channels in firefighting, geological disaster relief, and other critical scenarios, acting as a versatile tool for subsurface water resource development across industries and scenarios.
Parameter
Type | 300m Crawler Water Drilling Rig | ||
Specification (English) | Value | Specification (English) | Value |
The weight (T) | 8 | Drill pipe diameter (mm) | Φ75, Φ89, Φ102 |
The hole diameter (mm) | 140-325 | Drill pipe length (m) | 1.5, 2.0, 3.0, 6.0 |
Drill depth (m) | 300 | Rig lifting force (T) | 18 |
One-time advance length (m) | 6.6 | Rapid rise speed (m/min) | 22 |
Walking speed (km/h) | 2.5 | Fast feeding speed (m/min) | 40 |
Climbing angle (Max.) | 30 | Width of loading (m) | 2.6 |
Equipped capacitor (kW) | 85 | Hoisting force of winch (T) | 2 |
Working air pressure (MPa) | 1.7-3.0 | Swing torque (N.m) | 5700-7500 |
Air consumption (m3/min) | 17-36 | Dimensions (mm) | 5900*1850*2200 |
Swing speed (rpm) | 40-70 | The penetration efficiency (m/h) | 15-35 |
High leg stroke (m) | 1.4 | The engine brand | Yuchai |
