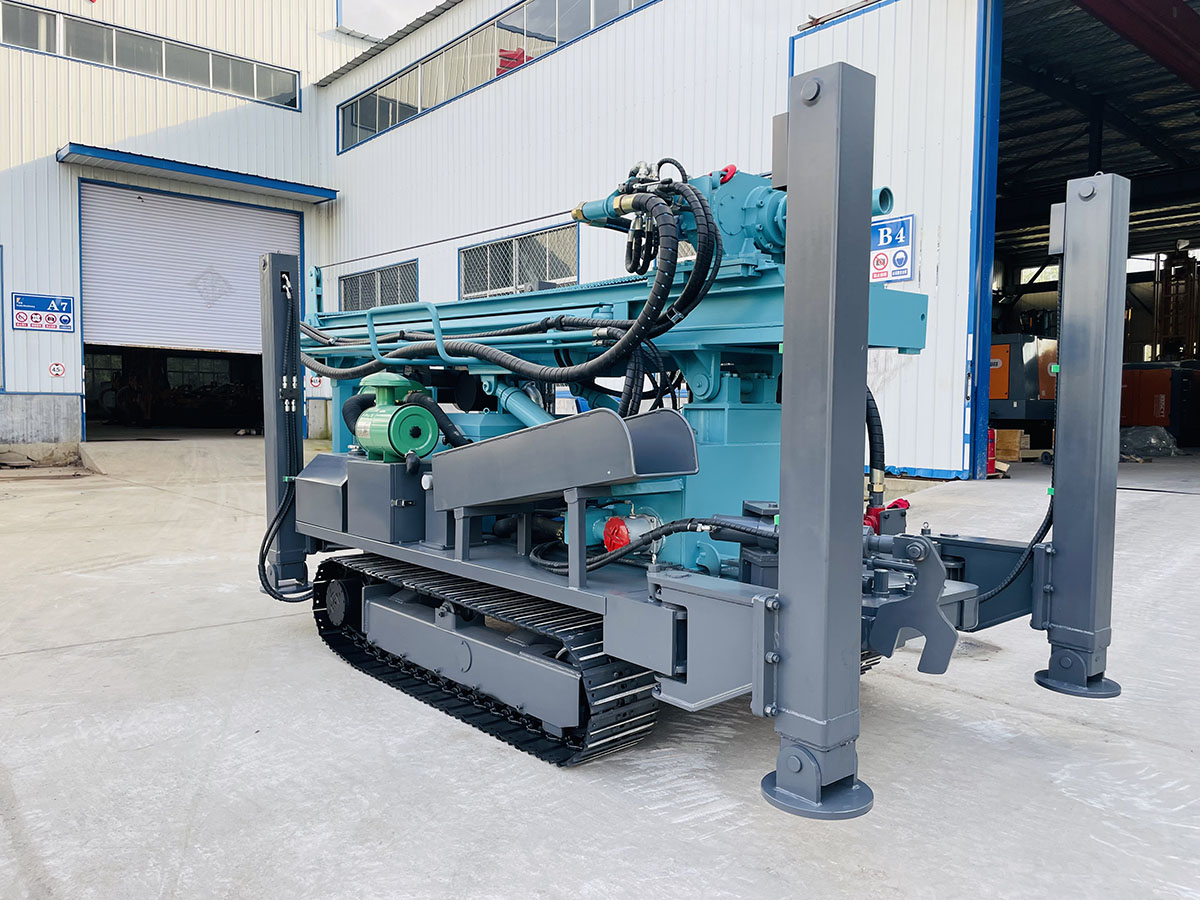

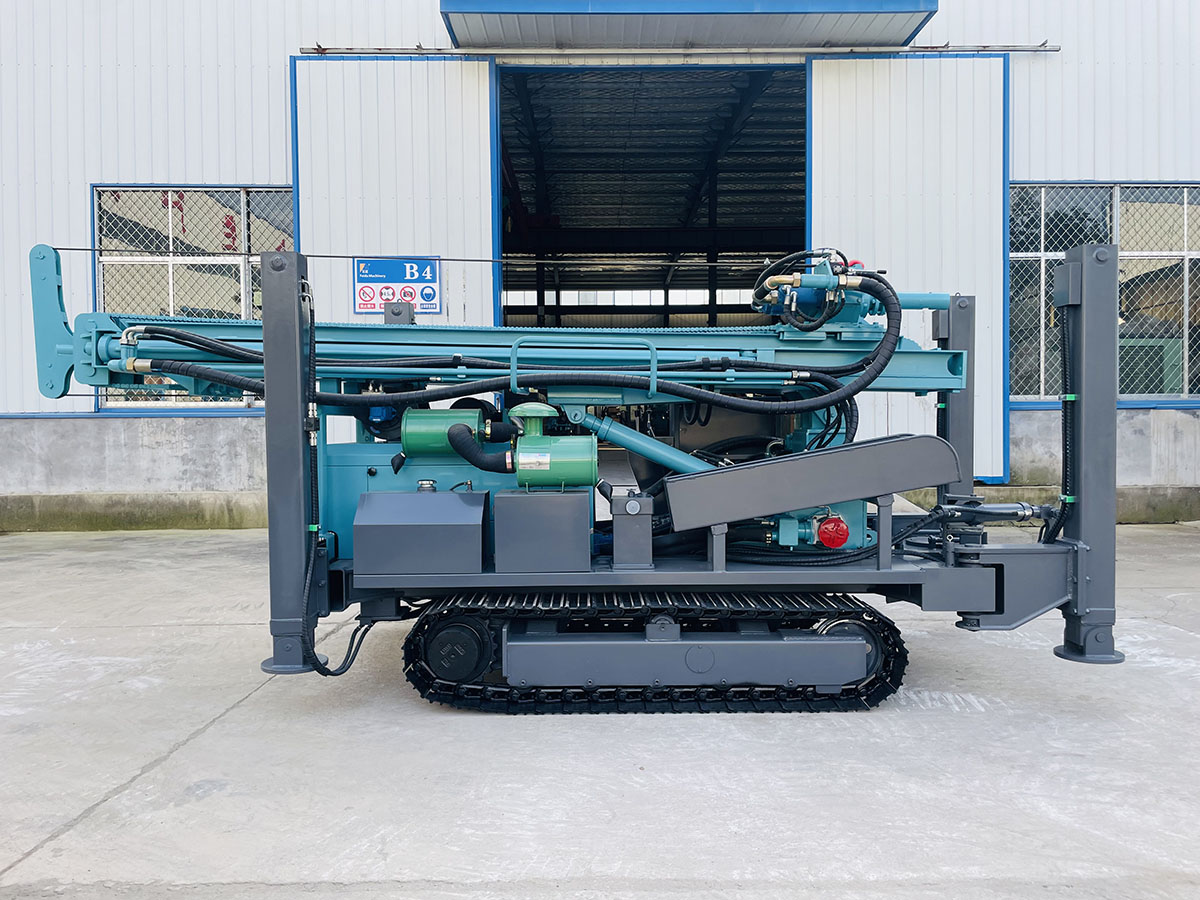

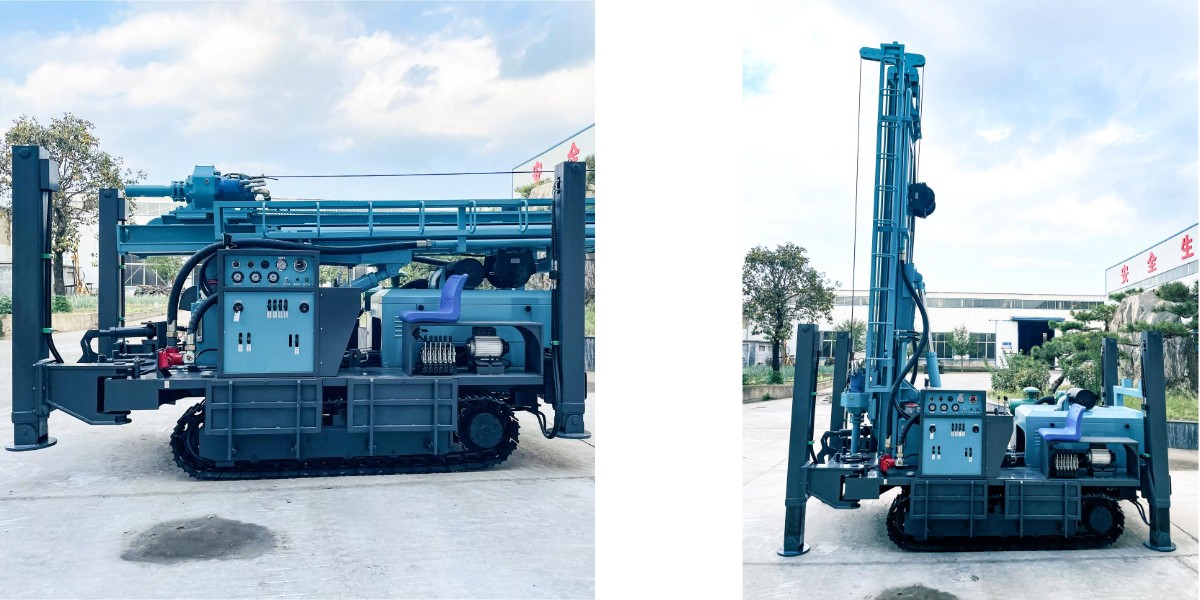

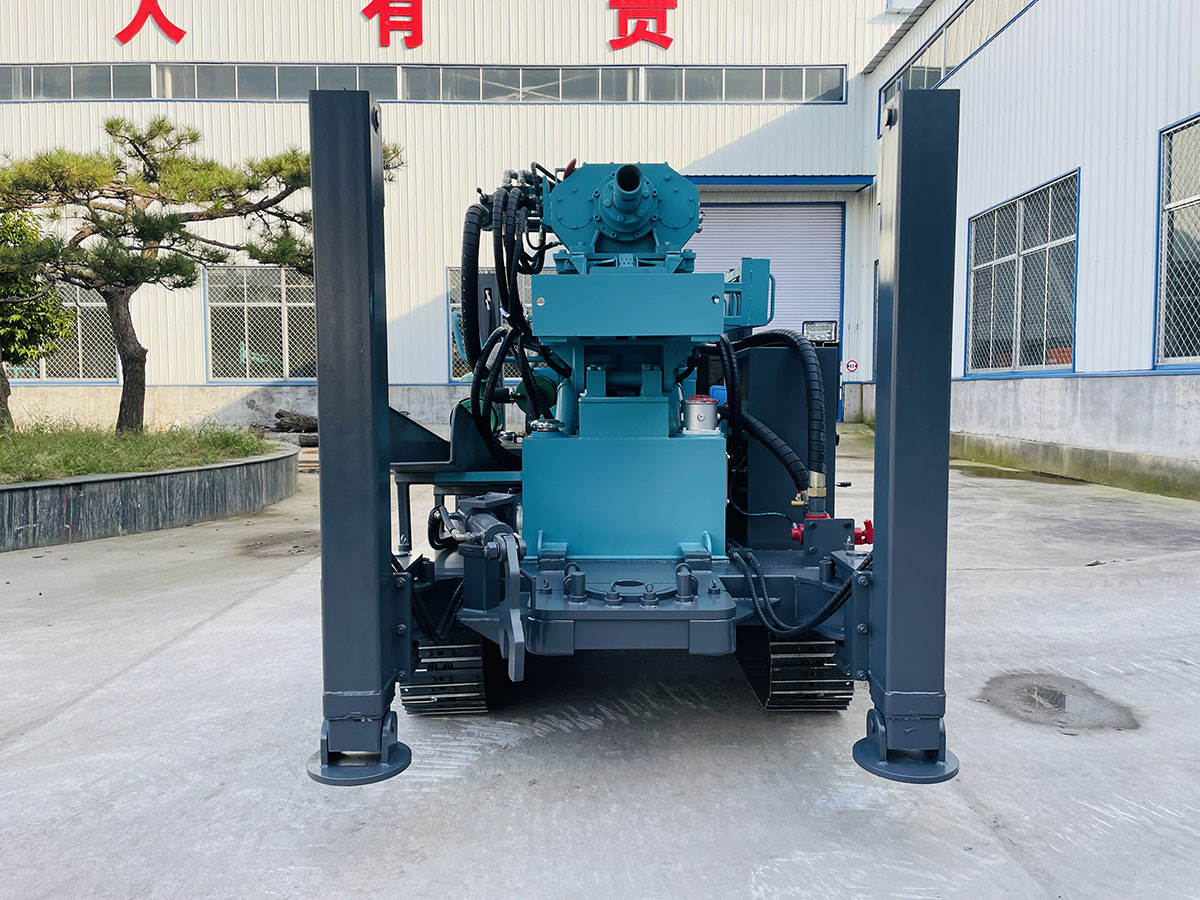

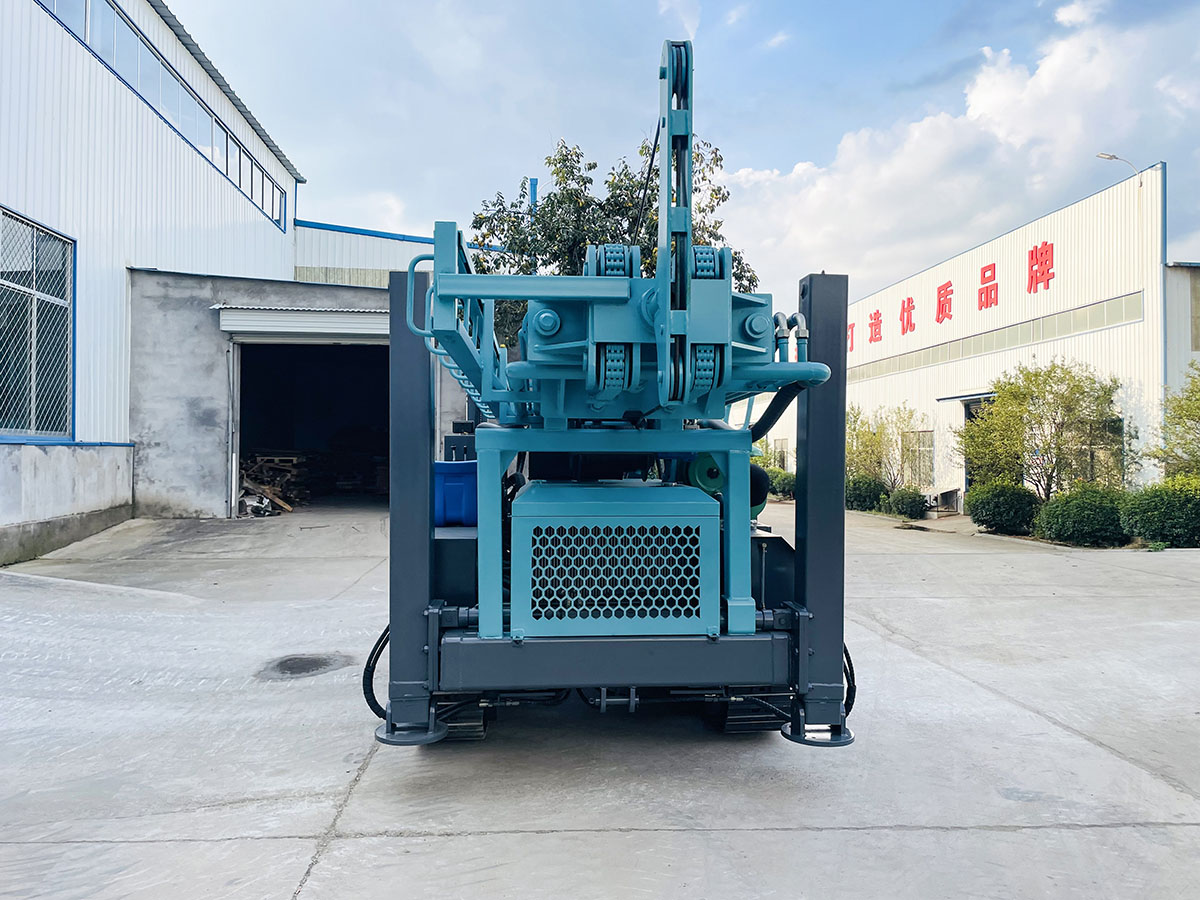

350m Crawler Water Drilling Rig
1. Box-style console with a clear layout for easy, efficient operation in small spaces.
2. 91kW Yuchai turbocharged engine delivers robust, continuous performance with excellent fuel efficiency.
3. 50-50-25 triple pump ensures high pressure, large flow, and low energy consumption.
4. Efficient dual filters guarantee reliable engine performance and reduce maintenance costs.
5. Stable, low-vibration winch with flexible installation; maximum lifting capacity of 2 tons.
6. Feida high-strength gearbox paired with BM6-395L motor for faster tunneling and superior fuel savings.
7. Heavy-duty steel tracks deliver outstanding load capacity and durability for extreme environments.
8. Factory-installed generator provides 24V/22W output to meet diverse fieldwork needs.
9. Movable steel pedal for flexible operation across various work scenarios.
10. Reinforced telescopic legs enhance machine stability across rugged terrains.
11. Strengthened front legs boost stability and adapt to all construction and uneven site conditions.
Introduction
This 350m crawler water drilling rig is widely applied across five key sectors, including agricultural water conservancy, rural and urban water supply, geothermal energy development, mine exploration, and emergency rescue operations, leveraging its superior mobility, robust terrain adaptability, and efficient drilling performance. In agriculture, it rapidly secures irrigation water sources in arid regions; in remote mountainous areas or post-disaster scenarios, its tracked chassis overcomes road access limitations to provide direct drinking water wells for settlements or temporary shelters. In the energy sector, it supports deep drilling for geothermal resource exploitation; in mining operations, it efficiently constructs hydrogeological exploration holes and integrated prospecting-production boreholes. During extreme environmental crises, it serves as a lifeline for emergency water supply channels in firefighting, geological disaster relief, and other critical scenarios, acting as a versatile tool for subsurface water resource development across industries and scenarios.
Parameter
Type | 350m Crawler Water Drilling Rig | ||
Parameter | Value | Parameter | Value |
Weight (T) | 8.6 | Drill pipe diameter (mm) | Φ89/Φ102 |
Hole diameter (mm) | 140-325 | Drill pipe length (m) | 1.5/2.0/3.0/6.0 |
Drilling depth (m) | 350 | Lifting force (T) | 22 |
One-time advance length (m) | 6.6 | Rapid rise speed (m/min) | 18 |
Travel speed (km/h) | 2.5 | Fast feeding speed (m/min) | 33 |
Gradeability (Max.) | 30 | Loading width (m) | 2.7 |
Engine power (kW) | 91 | Winch lifting force (T) | 2 |
Working air pressure (MPa) | 1.7-3.4 | Rotation torque (N.m) | 6200-8500 |
Air consumption (m3/min) | 17-36 | Dimensions (mm) | 6000*2000*2550 |
Rotation speed (rpm) | 66-135 | Penetration rate (m/h) | 15-35 |
High-leg stroke (m) | 1.4 | Engine brand | Yuchai |
