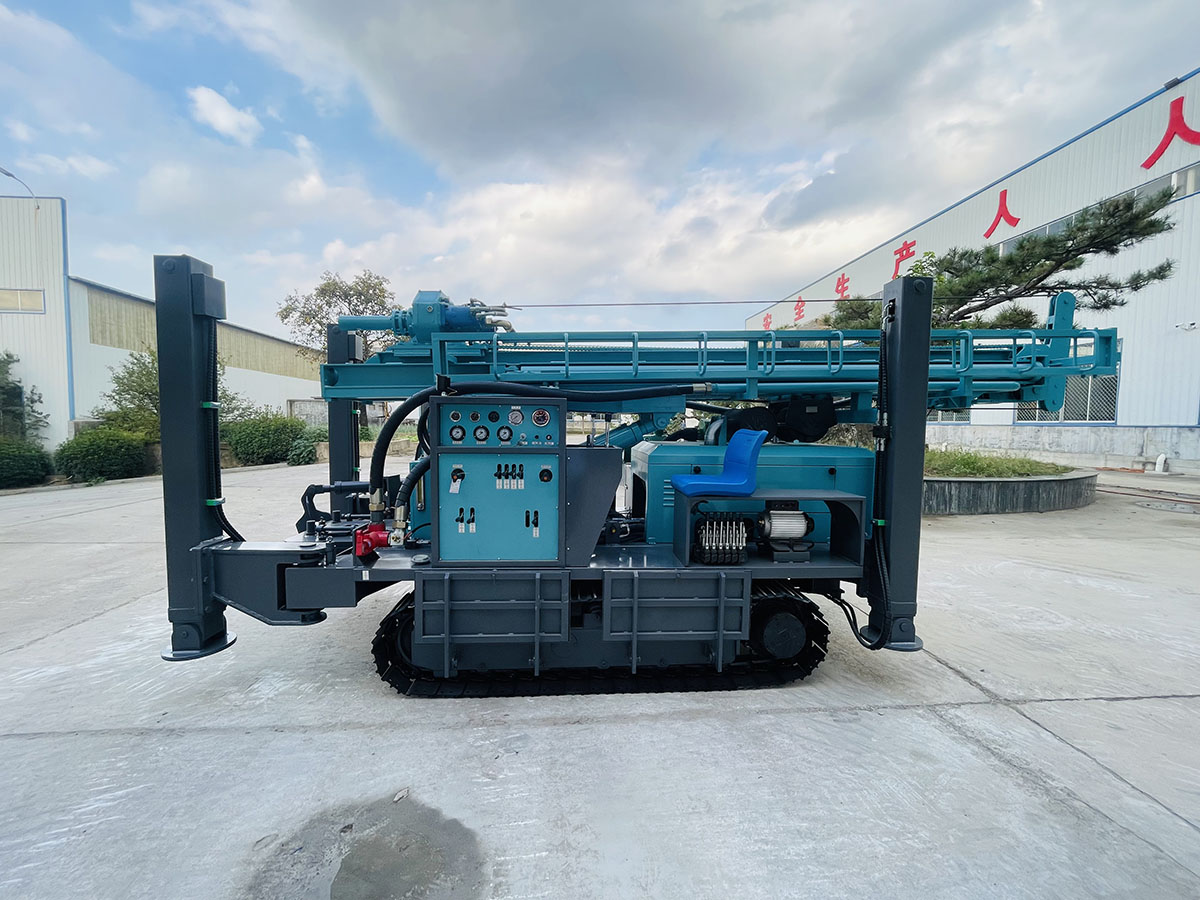

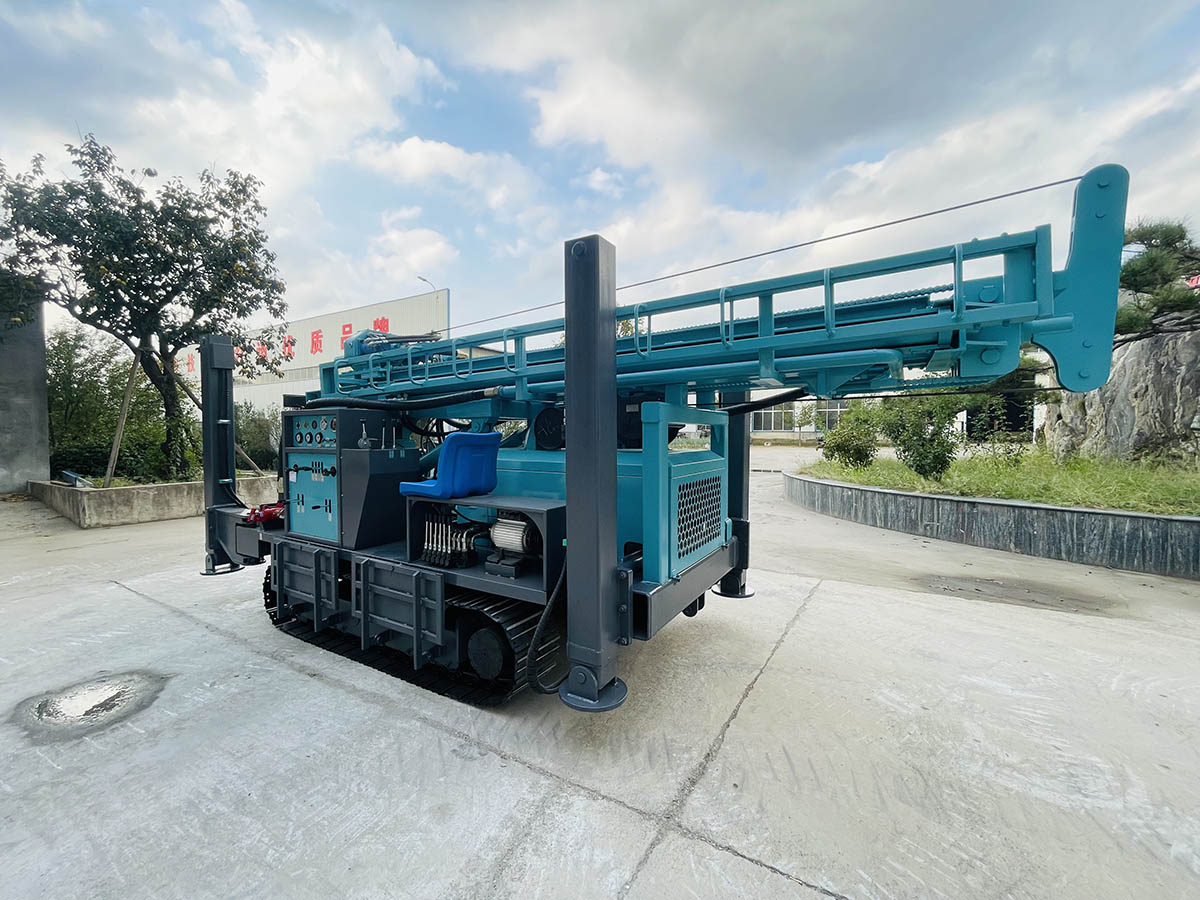

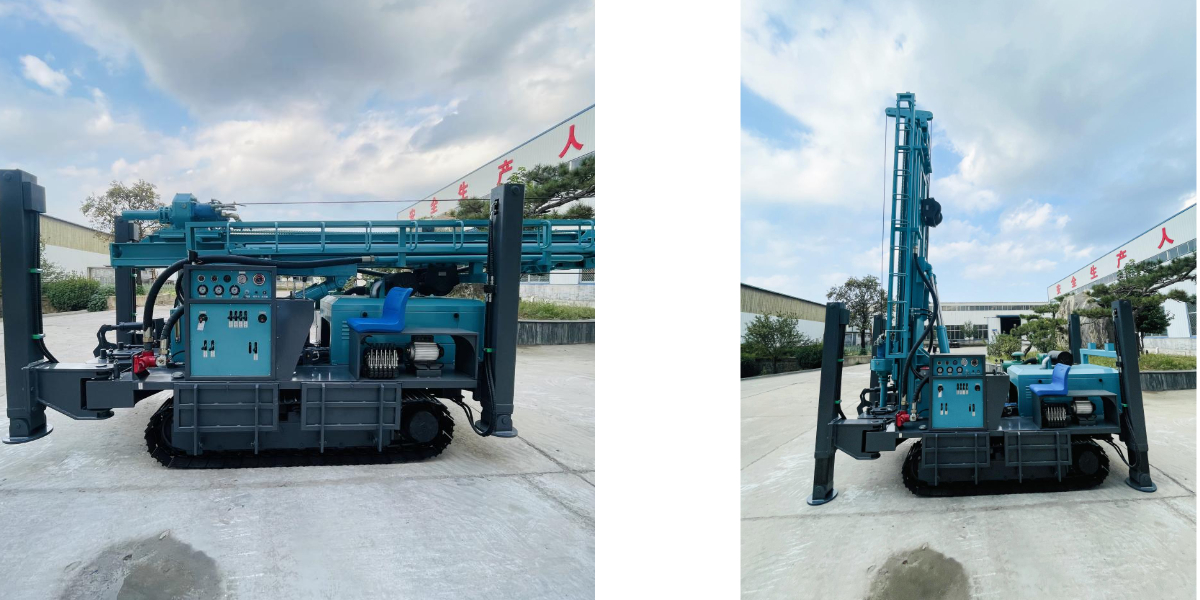

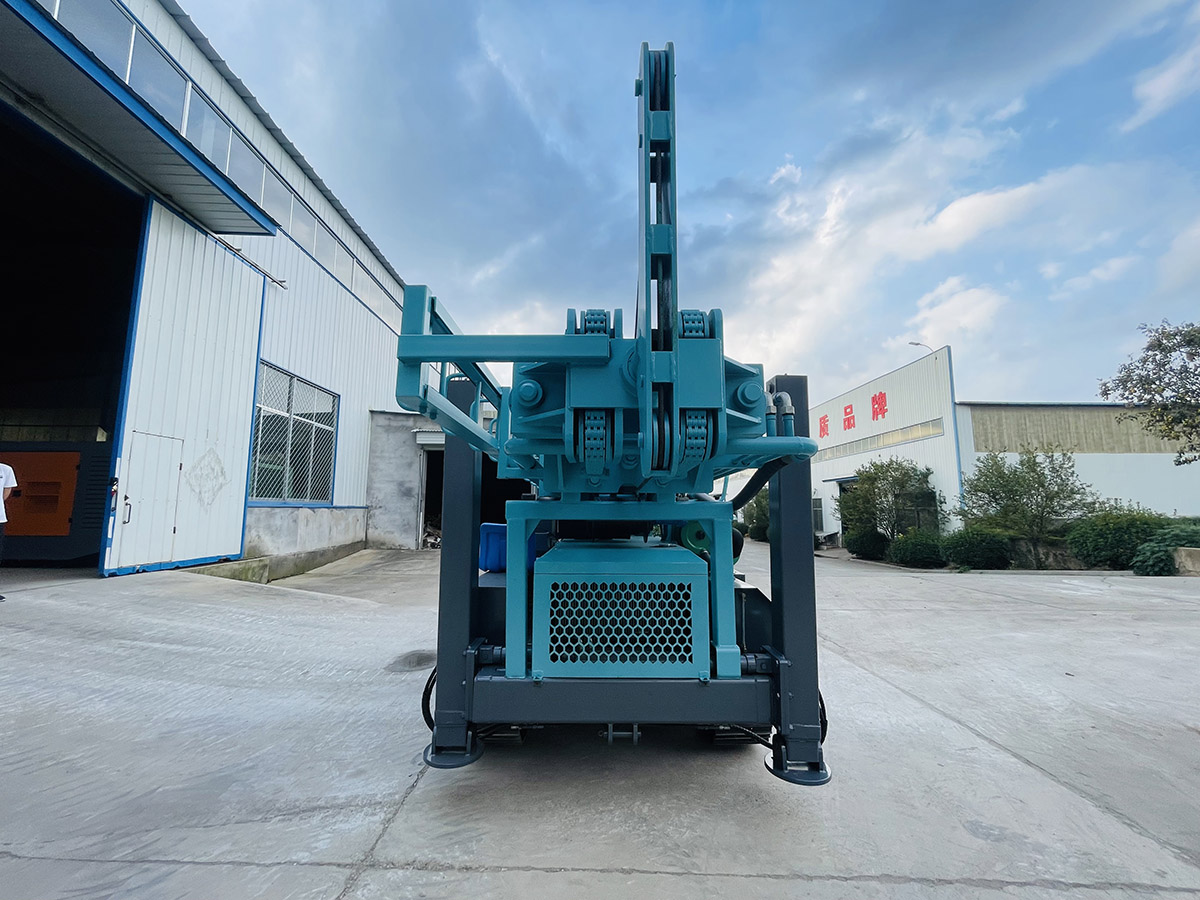

400m Water Drilling Rig
1. Clear and intuitive box-type control panel for easy operation and reduced workload.
2. Equipped with a 92kW Yuchai turbocharged diesel engine for powerful and efficient performance.
3. Triple pump design ensures high pressure, large flow, and low energy consumption.
4. Dual air filtration system ensures stable engine performance in harsh conditions and reduces maintenance costs.
5. High-stability, low-vibration winch with flexible layout and a maximum lifting capacity of 2 tons.
6. Self-developed high-strength slewing gearbox paired with a hydraulic motor for fast and energy-saving excavation.
7. 35cm wide steel tracks offer strong load capacity and wear resistance for challenging terrains.
8. Standard generator supports 24V/220V output, fully meeting various fieldwork needs.
9. Flexible steel pedal platform for easy operation across various working conditions.
10. Reinforced telescopic outriggers enhance machine stability on uneven terrains.
Introduction
This 400m water drilling rig is widely applied across five key sectors, including agricultural water conservancy, rural and urban water supply, geothermal energy development, mine exploration, and emergency rescue operations, leveraging its superior mobility, robust terrain adaptability, and efficient drilling performance. In agriculture, it rapidly secures irrigation water sources in arid regions; in remote mountainous areas or post-disaster scenarios, its tracked chassis overcomes road access limitations to provide direct drinking water wells for settlements or temporary shelters. In the energy sector, it supports deep drilling for geothermal resource exploitation; in mining operations, it efficiently constructs hydrogeological exploration holes and integrated prospecting-production boreholes. During extreme environmental crises, it serves as a lifeline for emergency water supply channels in firefighting, geological disaster relief, and other critical scenarios, acting as a versatile tool for subsurface water resource development across industries and scenarios.
Parameter
Type | 400m Water Drilling Rig | ||
Weight (T) | 9.2 | Drill Pipe Diameter (mm) | Φ89 / Φ102 |
Hole Diameter (mm) | 140–325 | Drill Pipe Length (m) | 1.5 / 2.0 / 3.0 / 6.0 |
Drill Depth (m) | 400 | Rig Lifting Force (T) | 24 |
One-Time Advance Length (m) | 6.6 | Rapid Rise Speed (m/min) | 18 |
Walking Speed (km/h) | 2.5 | Fast Feeding Speed (m/min) | 33 |
Gradeability (Max.) | 30 | Width of Loading (m) | 2.7 |
Engine Power (kW) | 92 | Hoisting Force of Winch (T) | 2 |
Working Air Pressure (MPa) | 1.7–3.4 | Swing Torque (N·m) | 6500–9000 |
Air Consumption (m³/min) | 17–36 | Dimensions (mm) | 6000 × 2000 × 2550 |
Swing Speed (rpm) | 66–135 | Penetration Efficiency (m/h) | 15–35 |
High Leg Stroke (m) | 1.4 | Engine Brand | Yuchai |
