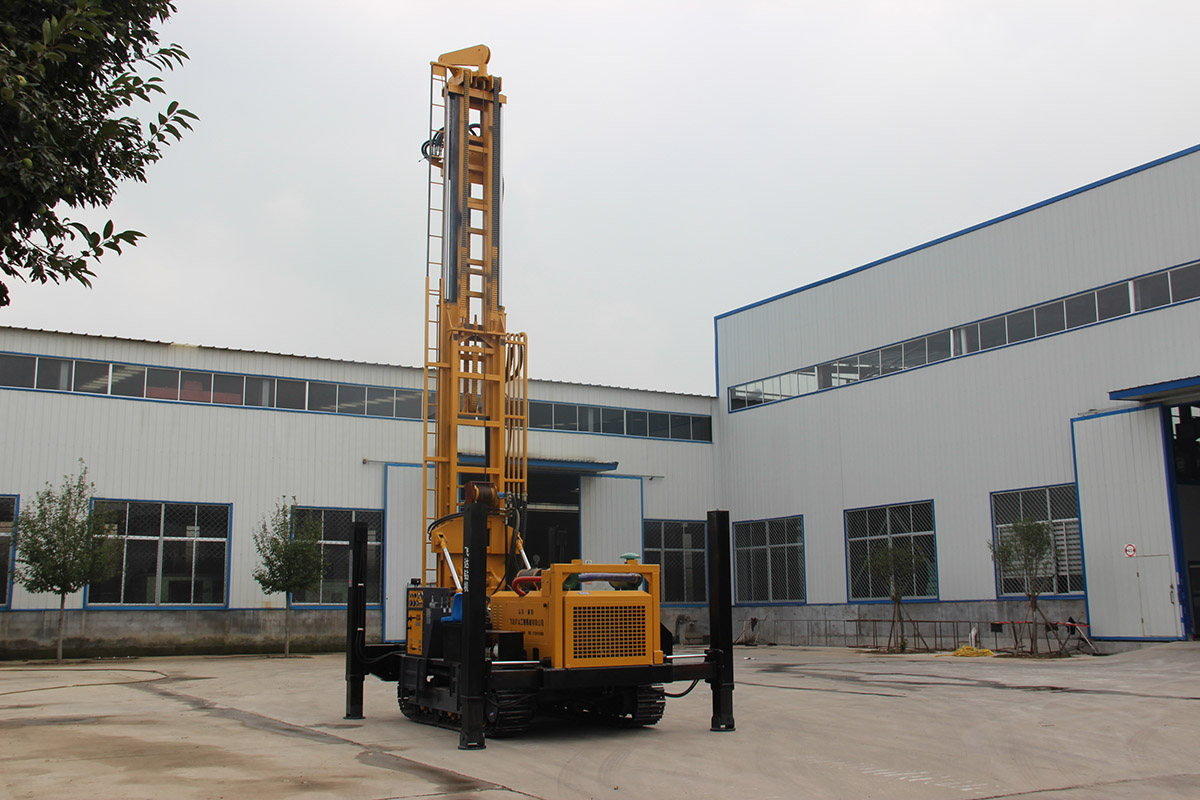

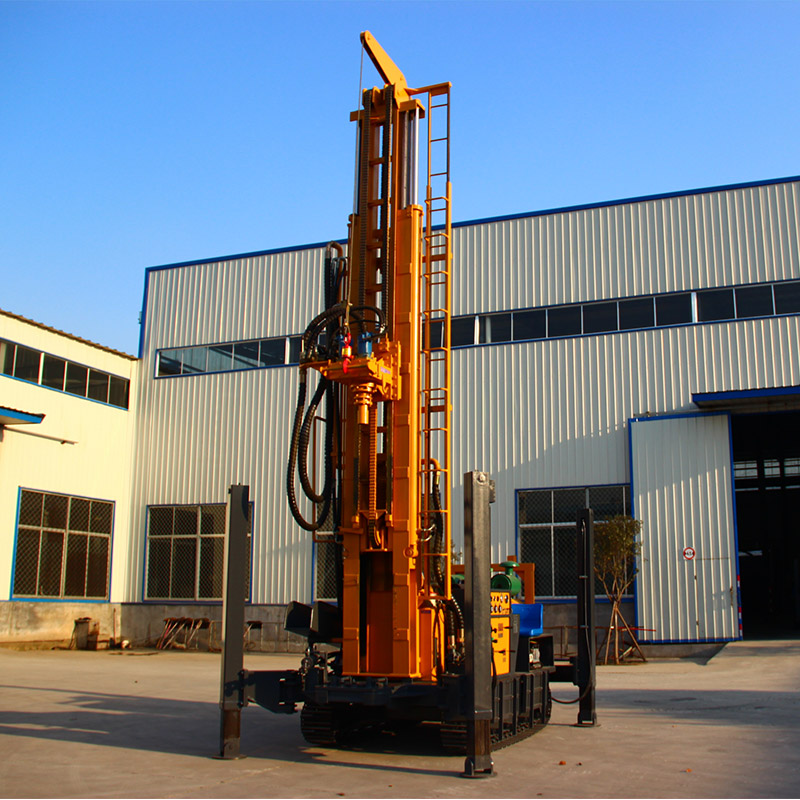

600m Water Drilling Rig
1. Equipped with a powerful 153KW Cummins six-cylinder turbocharged engine, providing strong performance and long service life.

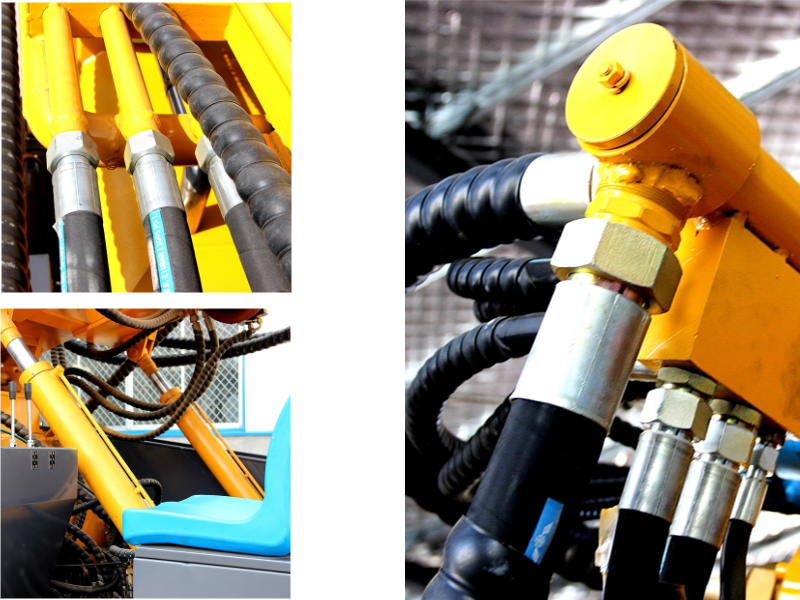

2. Features a patented compound boom design with dual oil cylinders and a reinforced tower for improved lifting capacity and structural stability.
3. Includes three high-efficiency oil pumps (one imported from Italy), along with a foam pump, winch, multifunction generator, and front outrigger swing arm cylinder for versatile operation.
4. Each rig is fitted with a protective baffle on the main arm to safeguard the oil cylinder from damage.
5. Capable of drilling large-diameter and deep holes with fast penetration speed, enhancing work efficiency.

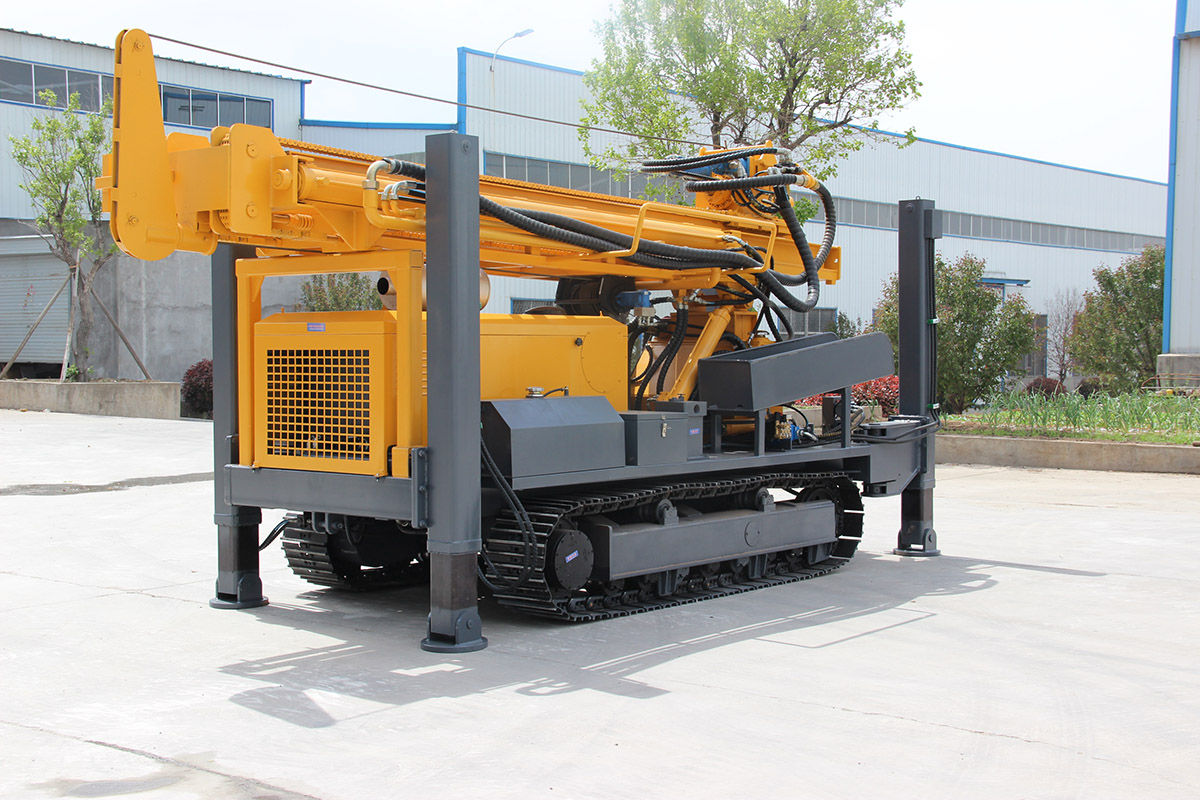

6. Built on a reinforced steel crawler chassis with a large frame, wide chain plates, and high load-bearing capacity, offering superior durability and stability.
7. Designed with a parallel transmission system that ensures powerful output, balanced distribution, a unique hydraulic layout, and low maintenance costs.
8. Utilizes an independent dual cooling system combining hydraulic oil temperature control and traditional air cooling to extend engine life.
9. Supports dual operational systems: an air power system with air compressor and a mud pump system with integrated mud pump for flexible drilling applications.
Introduction
This 600m water drilling rig is powered by a high-performance 153KW Cummins six-cylinder turbocharged engine, ensuring reliable and strong power output along with extended service life. It adopts a patented compound boom structure that integrates dual lifting cylinders and a reinforced tower, significantly enhancing stability and lifting efficiency during operations.
The hydraulic system is engineered for versatility and performance, featuring three efficient oil pumps—one of which is imported from Italy—alongside a foam pump, winch, multifunctional generator, and a front outrigger swing arm cylinder. Each unit is also equipped with a protective baffle on the main arm, designed to shield the oil cylinder and extend its service durability.
With the ability to drill large-diameter and deep holes at high speed, the rig excels in both productivity and adaptability. Its chassis is constructed from reinforced steel and built with a large frame, wide track plates, and high load capacity, making it exceptionally durable and suitable for heavy-duty terrain.
The rig’s parallel transmission design delivers balanced power output and efficient energy distribution through a uniquely structured hydraulic system that is easy to maintain and cost-effective. To ensure consistent operation, it incorporates an independent dual cooling system that combines hydraulic oil temperature regulation with traditional air cooling, which helps protect the engine and prolong its lifespan.
Additionally, the rig supports two operational systems: an air-powered system that includes an air compressor, and a mud system equipped with a reliable mud pump, providing flexible functionality for various drilling conditions.
Parameter
Power Type | Diesel |
Dimension(L*W*H) | 6200*2200*2650mm |
The Weight | 11500KG |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Pump, Engine |
Key Selling Points | Competitive Price |
Drilling Depth | Max.680m |
Mobility | move by crawler |
drill pipe diameter(mm) | 102mm 108mm 114mm |
the hole diameter(mm) | 140-400mm |
drill pipe length(M) | 1.5m 2.0m 3.0m 6.0m |
one-time advance length(m) | 6.6m |
walking speed(km/h) | 2.5km/h |
equipped capacitor(kw) | cummins 153kw |
using air pressure(MAP) | 1.7-3.5MAP |
swing speed(rpm) | 45-140rpm |
the penetration efficiency(m/h) | 15-35m/h |
Show details

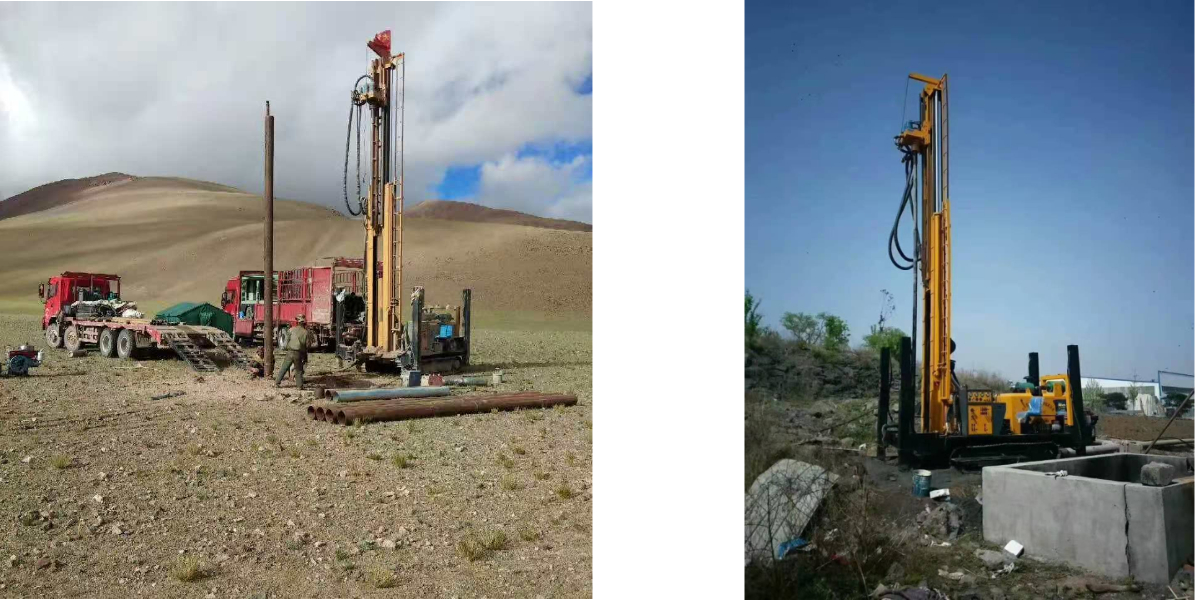

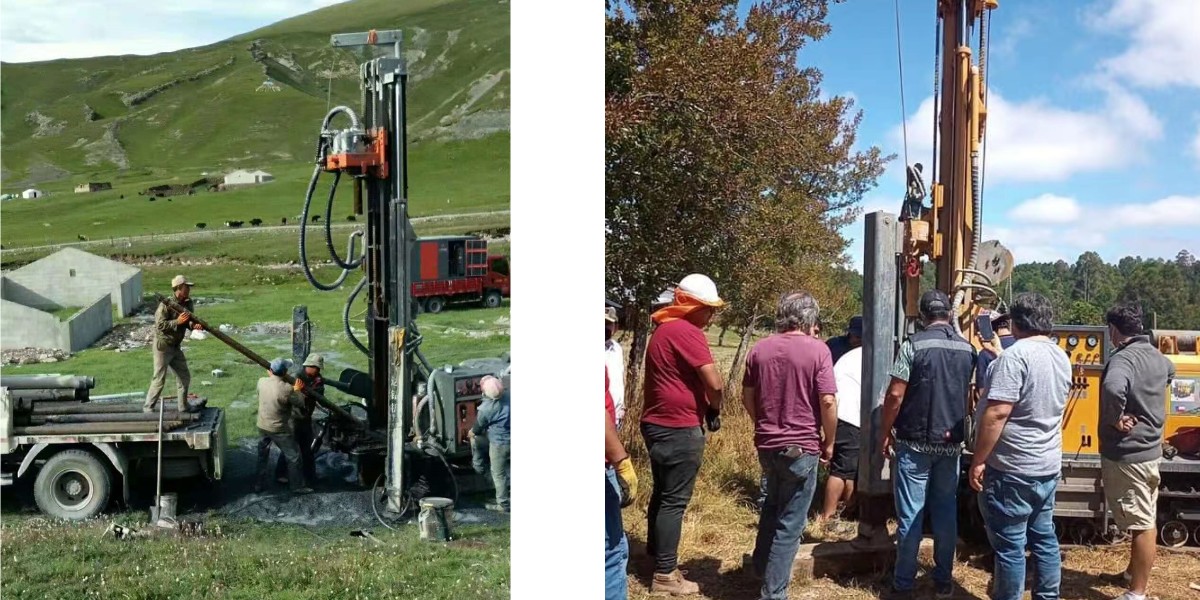

Application
