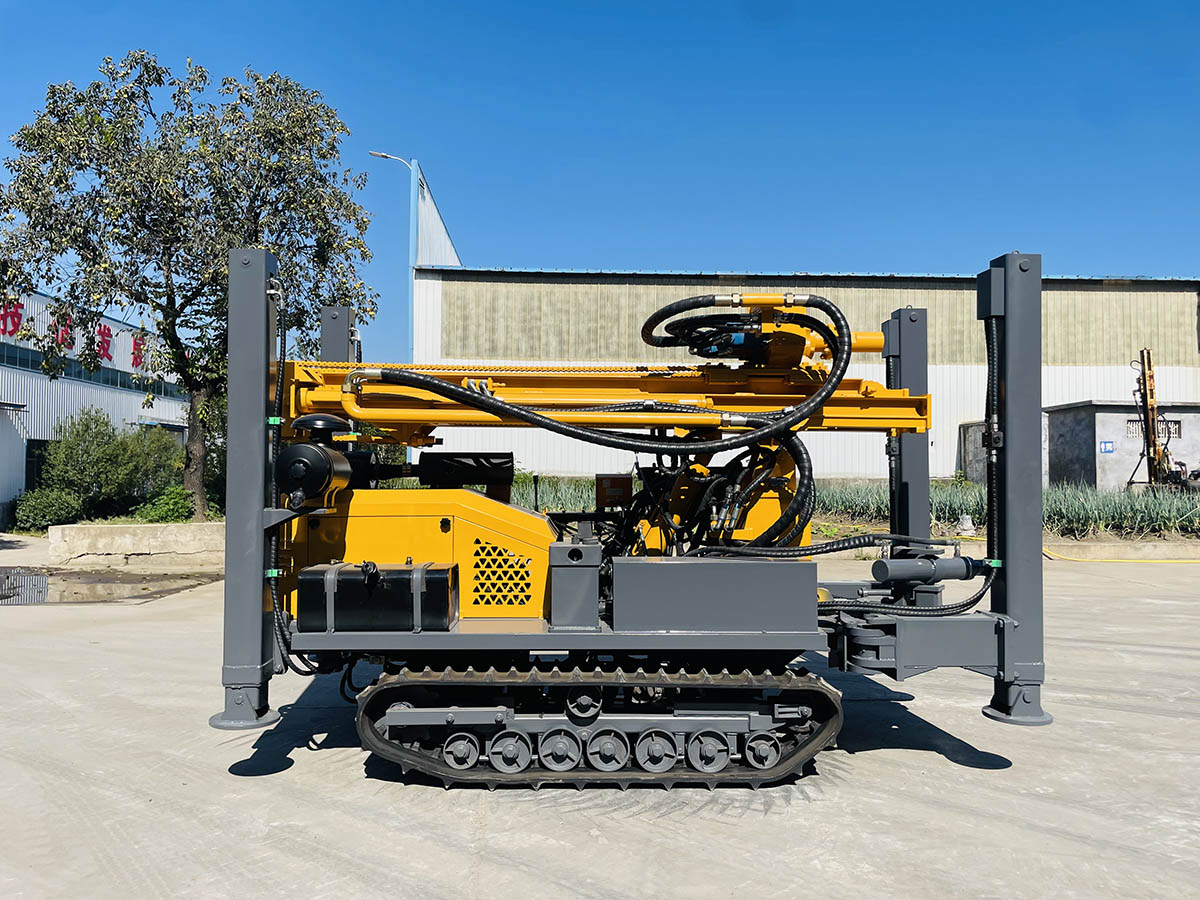

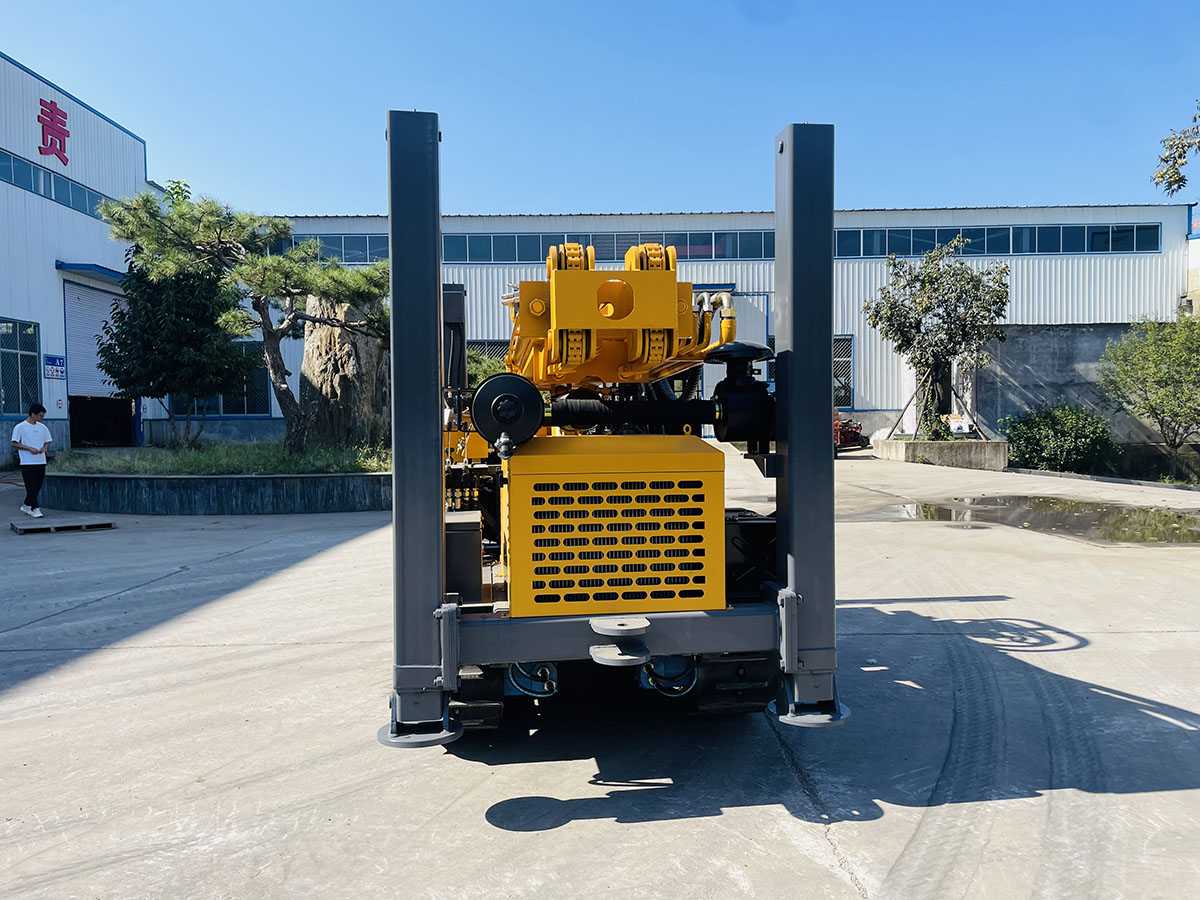

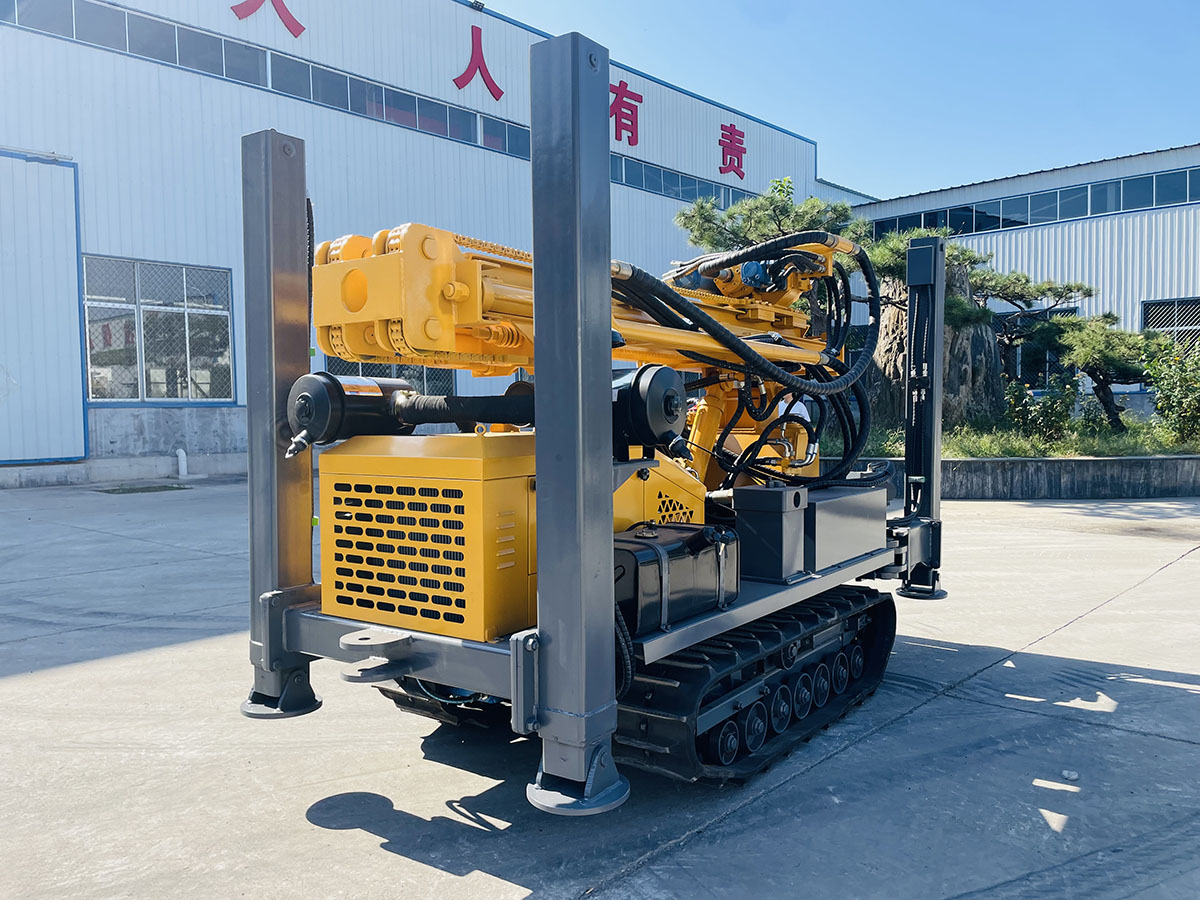

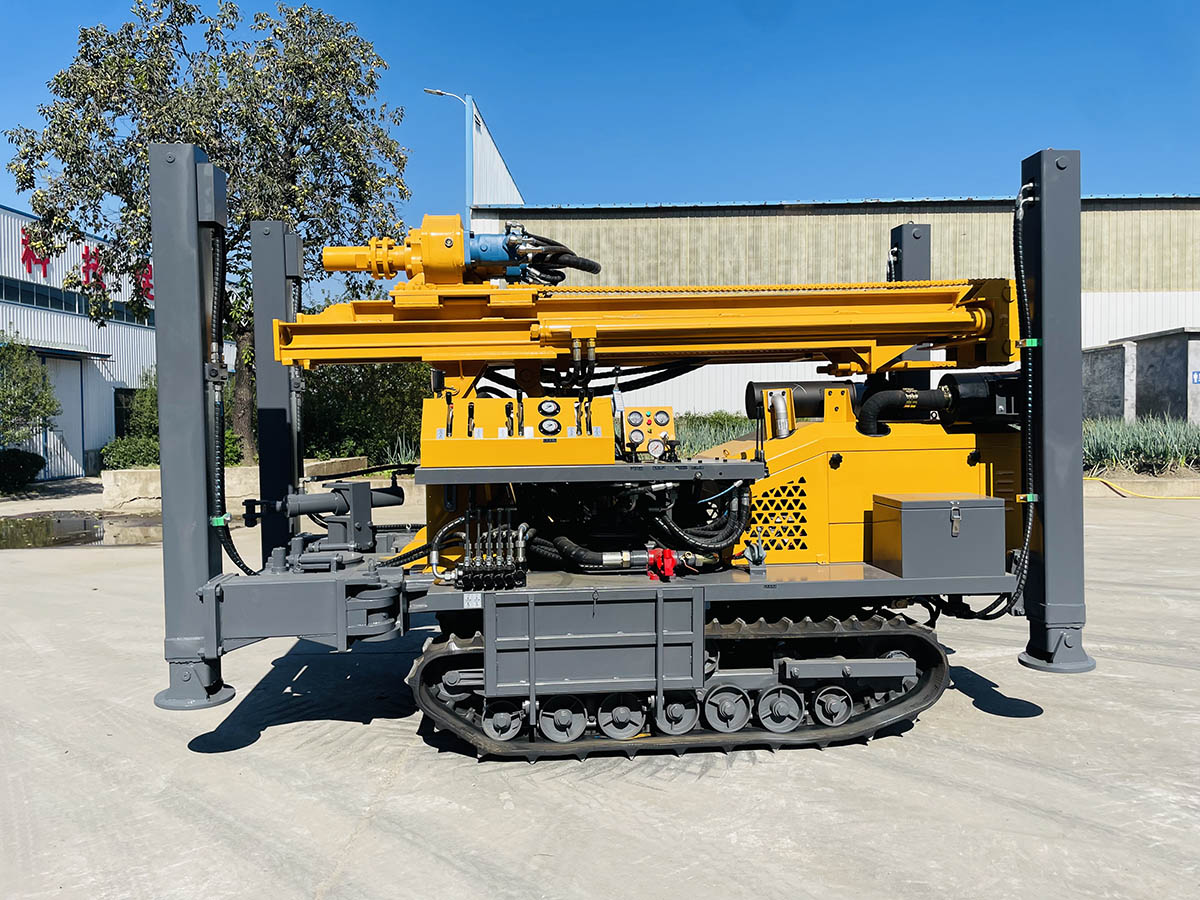

300m Crawler Lightweight Water Drilling Rig

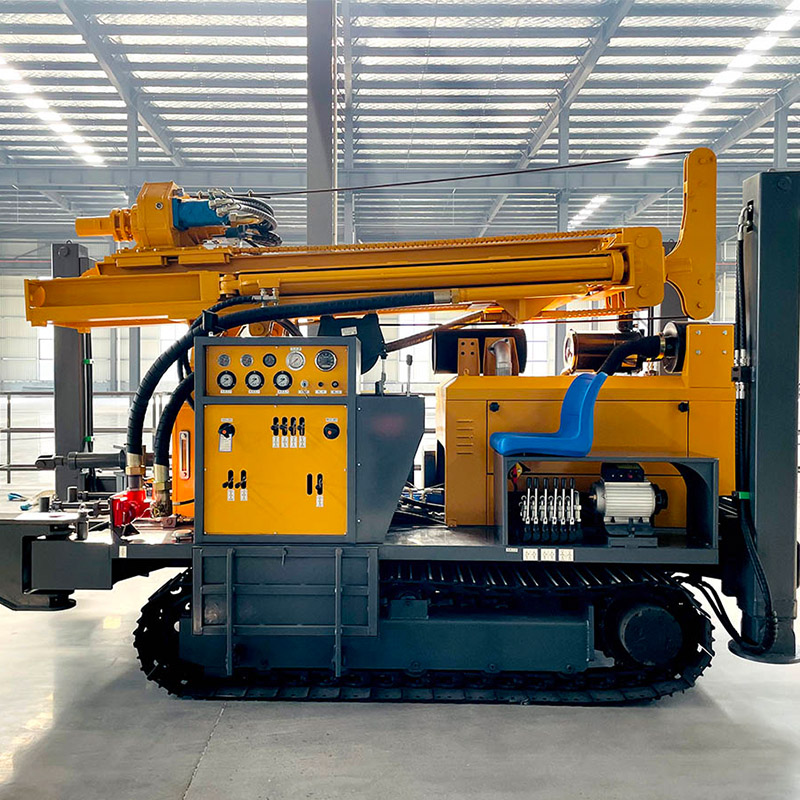

1. Intuitive Control Panel
Box-style console with a clear layout. Easy to operate and manage in tight spaces, significantly reducing operator workload.
2. Strong Turbocharged Engine
Powered by an 85kW Yuchai turbocharged 4-cylinder diesel engine. Delivers continuous, powerful performance with excellent fuel efficiency.
3. High-Pressure Triple Pump
Features a 50-50-25 triple pump system. High oil pressure, strong flow, low energy consumption.
4. Dual Air Filtration System
Ensures smooth engine operation in harsh environments. Easy maintenance greatly reduces service costs.
5. Heavy-Duty Winch
Stable and smooth with low vibration. Flexible installation to meet different needs. Max lifting capacity: 2 tons.
6. Reinforced Rotary Gearbox
Built by Feida with BM6-245 hydraulic cycloidal motor. Enables high-speed tunneling with strong torque and low fuel usage.
7. Steel Tracks
Heavy-duty steel tracks provide superior load capacity and wear resistance—ideal for rough, challenging terrain.
8. Built-in Generator
Factory-equipped generator outputs 24V/22W. Supports welding and multi-functional use for off-grid job sites.
9. Foldable Steel Pedal
Durable, movable pedal design for easier operation. Adapts to various job scenarios.
10. Telescopic Rear Support Legs
Reinforced telescopic legs improve stability on uneven terrain. Built for all types of rugged construction environments.
Introduction
This 300m crawler lightweight water drilling rig is widely applied across five key sectors, including agricultural water conservancy, rural and urban water supply, geothermal energy development, mine exploration, and emergency rescue operations, leveraging its superior mobility, robust terrain adaptability, and efficient drilling performance. In agriculture, it rapidly secures irrigation water sources in arid regions; in remote mountainous areas or post-disaster scenarios, its tracked chassis overcomes road access limitations to provide direct drinking water wells for settlements or temporary shelters. In the energy sector, it supports deep drilling for geothermal resource exploitation; in mining operations, it efficiently constructs hydrogeological exploration holes and integrated prospecting-production boreholes. During extreme environmental crises, it serves as a lifeline for emergency water supply channels in firefighting, geological disaster relief, and other critical scenarios, acting as a versatile tool for subsurface water resource development across industries and scenarios.
Parameter
Type | 300m crawler lightweight water drilling rig | ||
Specification (English) | Value | Specification (English) | Value |
The weight (T) | 6.8 | Drill pipe diameter (mm) | Φ76, Φ89 |
The hole diameter (mm) | 140-325 | Drill pipe length (m) | 1.5, 2.0, 3.0 |
Drill depth (m) | 300 | Rig lifting force (T) | 18 |
One-time advance length (m) | 3.3 | Rapid rise speed (m/min) | 22 |
Walking speed (km/h) | 2.5 | Fast feeding speed (m/min) | 40 |
Climbing angle (Max.) | 30 | Width of loading (m) | 2.6 |
Equipped capacitor (kW) | 85 | Hoisting force of winch (T) | 2 |
Working air pressure (MPa) | 1.7-3.0 | Swing torque (N.m) | 5700-7500 |
Air consumption (m3/min) | 17-36 | Dimensions (mm) | 4100*2000*2260 |
Swing speed (rpm) | 40-70 | The penetration efficiency (m/h) | 15-35 |
High leg stroke (m) | 1.4 | The engine brand | Yuchai |
