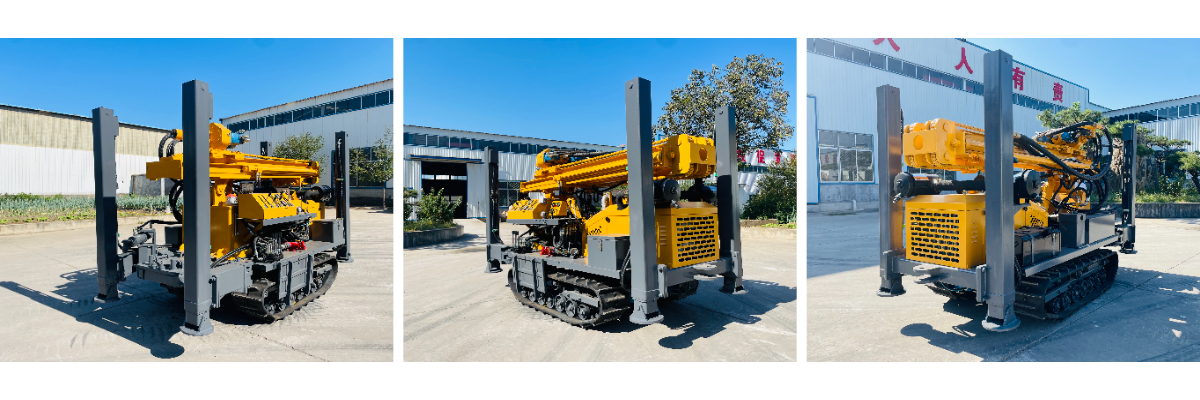

180m Crawler Type Water Well Drilling Rig
1. Intuitive Control Panel
Parallel-style console with a clean layout. Easy to operate in tight spaces, reducing operator fatigue.
2. Compact but Powerful Engine
Powered by a 55kW Quanchai four-cylinder diesel engine. Small size, strong output—your reliable partner for consistent performance and fuel efficiency.
3. High-Pressure Double Oil Pump
Equipped with a 32-32 twin pump. Delivers high pressure, large flow, low energy use, and excellent heat resistance.
4. Dual Air Filtration System
Ensures stable engine performance in tough environments. Easy maintenance, reduced downtime, and lower servicing costs.
5. Durable Rubber Tracks
Exceptional shock absorption protects the machine and surface. Ideal for projects requiring ground care and reduced vibration.
6. Reinforced Rotary Gearbox
Developed by Feida with a BM6-245 hydraulic motor. Enables faster tunneling and better fuel economy under heavy loads.
Introduction
180m crawler type water well drilling rig is a light weight, high efficiency, multi-function full hydraulic drilling machine, monitoring Wells and other hole exploration projects, widely used in drilling Wells，especially for ground source heat pump air conditioning hole drilling in urban buildings.
Parameter
Type | 180m Crawler Type Water Well Drilling Rig | ||
Specification (English) | Value | Specification (English) | Value |
The weight (T) | 4.5 | Drill pipe diameter (mm) | Φ76, Φ89 |
The hole diameter (mm) | 140-254 | Drill pipe length (m) | 1.5, 2.0, 3.0 |
Drill depth (m) | 180 | Rig lifting force (T) | 12 |
One-time advance length (m) | 3.3 | Rapid rise speed (m/min) | 20 |
Walking speed (km/h) | 2.5 | Fast-feeding speed (m/min) | 40 |
Climbing angle (Max.) | 30 | Width of loading (m) | 2.4 |
Equipped capacitor (kW) | 55 | Hoisting force of winch (T) | -- |
Working air pressure (MPA) | 1.7-2.5 | Swing torque (N.m) | 3200-4600 |
Air consumption (m3/min) | 17-31 | Dimensions (mm) | 3950*1630*2250 |
Swing speed (rpm) | 45-70 | The penetration efficiency (m/h) | 10-35 |
High leg stroke (m) | 1.4 | The engine brand | Quanchai |
