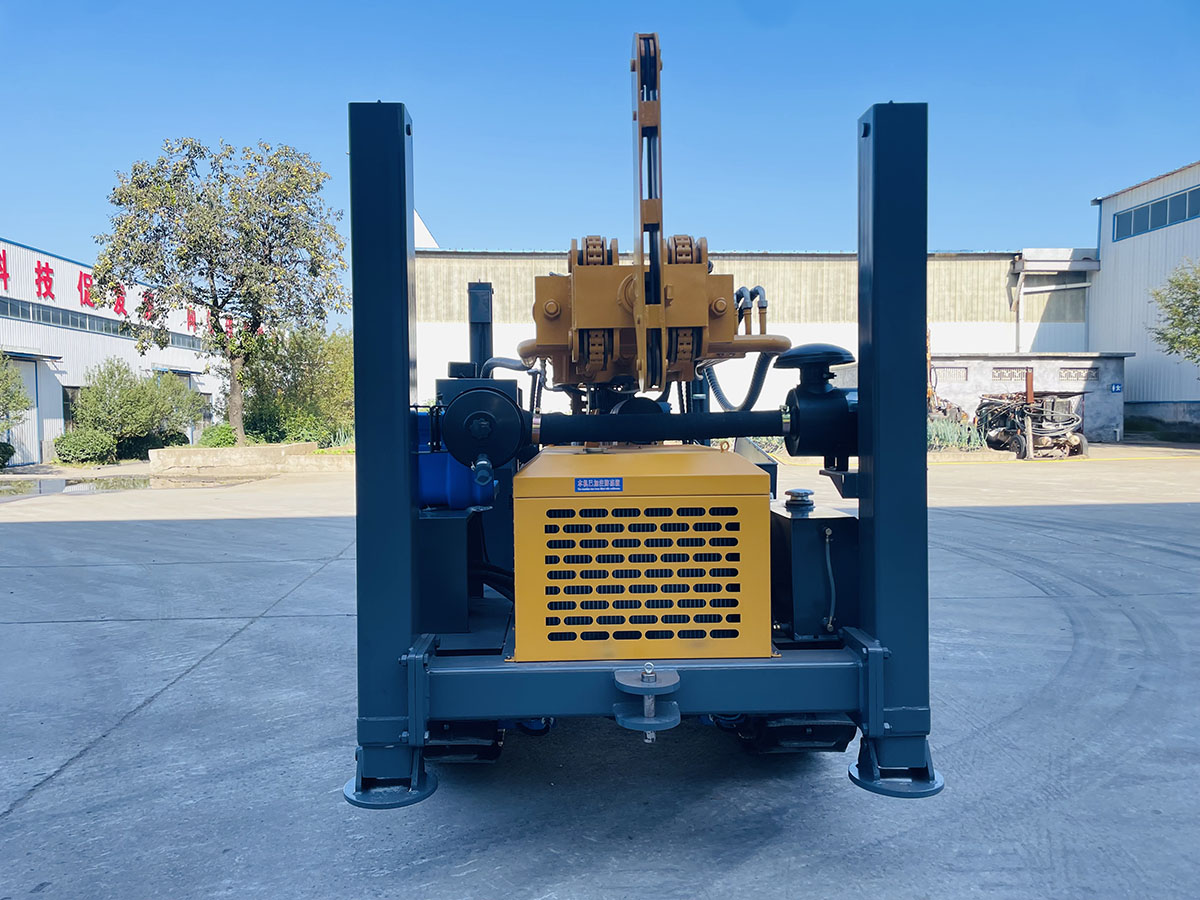

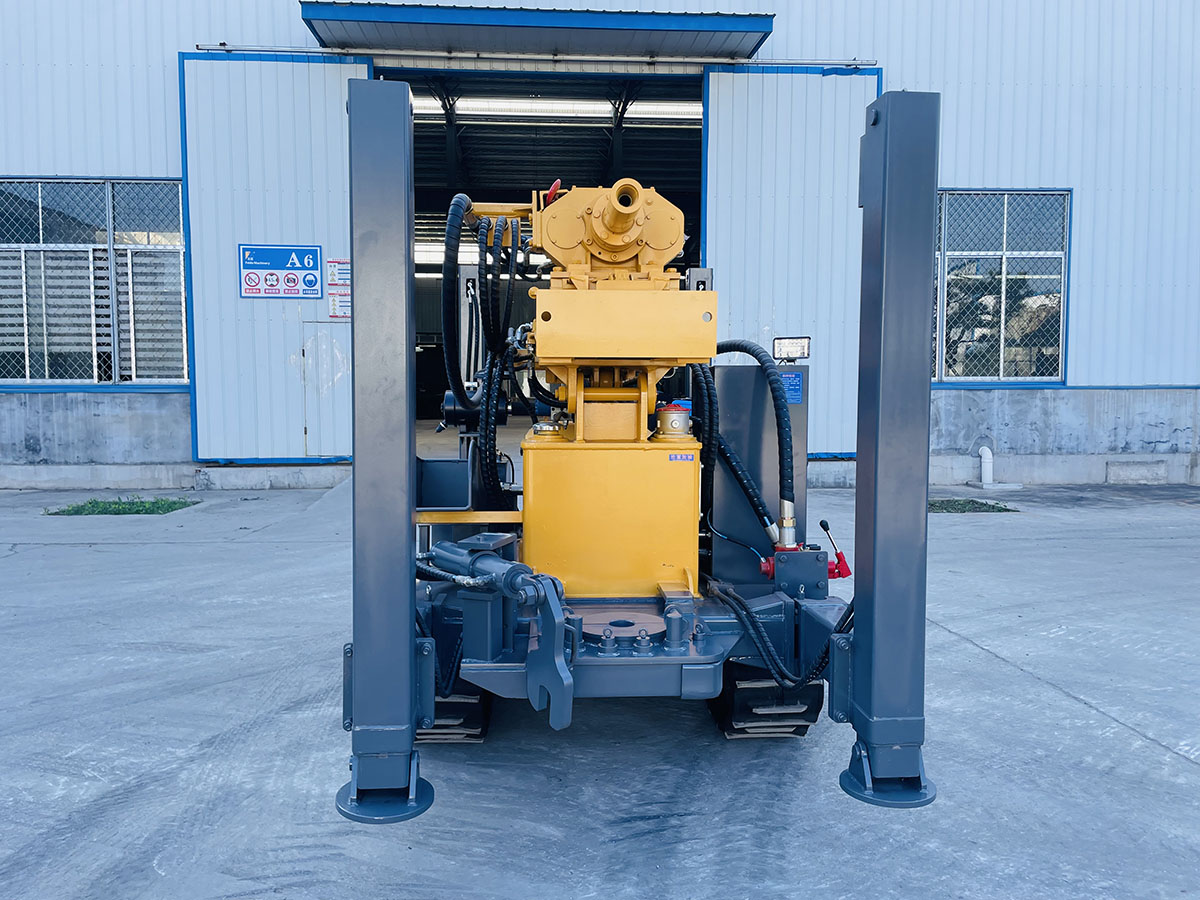

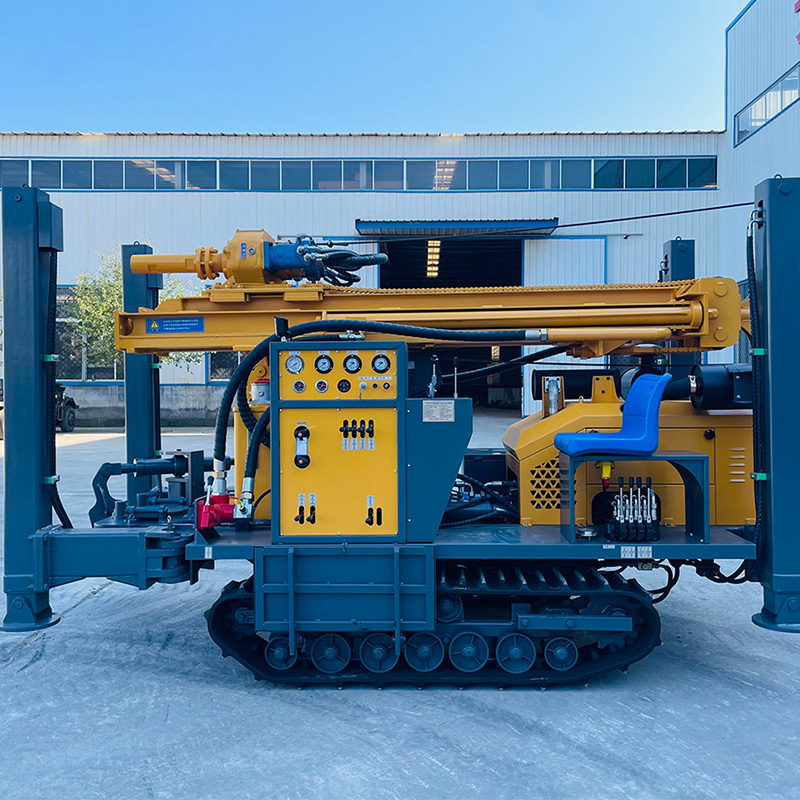

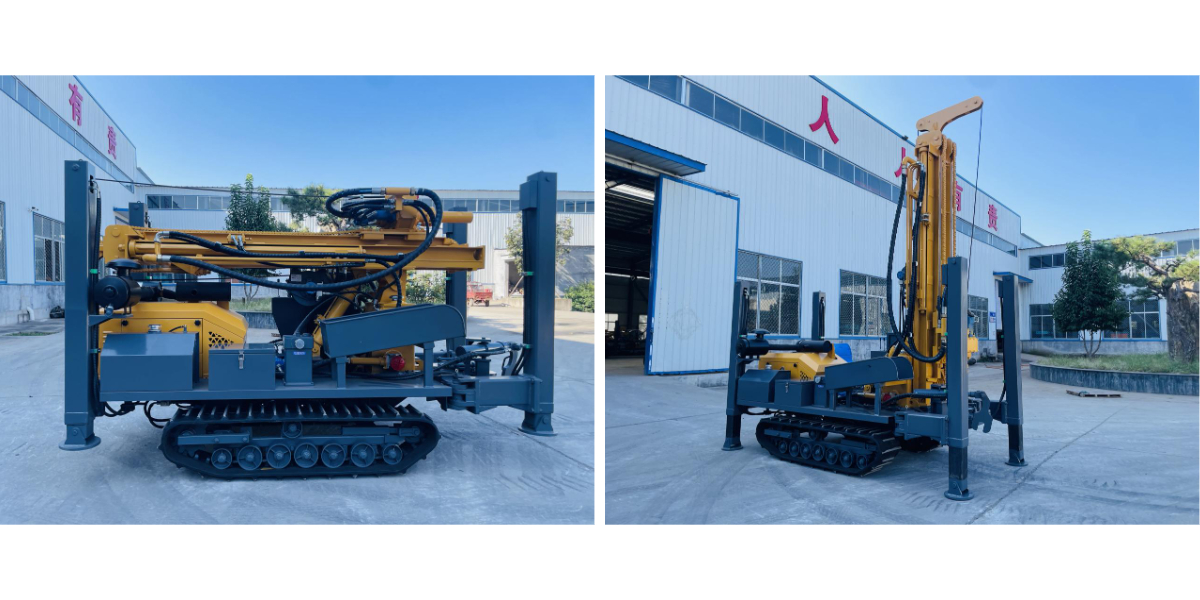

200m Crawler Type Water Well Drilling Rig
1. Easy Control Panel
Compact box design, intuitive layout, easy to operate. Reduces workload and boosts efficiency in tight spaces.
2. Powerful Engine
Equipped with a 58kW turbocharged Yuchai diesel engine. Delivers strong, continuous power with excellent fuel efficiency.
3. High-Pressure Oil Pump
35-35-20 triple pump system. Features high pressure, large flow, and low energy consumption.
4. Dual Air Filters
Enhanced filtration ensures reliable engine performance even in harsh environments, while reducing maintenance costs.
5. Heavy-Duty Winch
Smooth and stable operation with flexible installation. Lifting capacity up to 1.5 tons.
6. High-Strength Rotary Gearbox
Custom Feida gearbox with BM6-245 motor. Delivers fast drilling, strong power, and outstanding fuel savings.
7. Durable Rubber Tracks
Superior shock absorption protects the machine and minimizes ground damage — ideal for sensitive construction sites.
Introduction
This 200m crawler type water well drilling rig is widely applied across five key sectors, including agricultural water conservancy, rural and urban water supply, geothermal energy development, mine exploration, and emergency rescue operations, leveraging its superior mobility, robust terrain adaptability, and efficient drilling performance. In agriculture, it rapidly secures irrigation water sources in arid regions; in remote mountainous areas or post-disaster scenarios, its tracked chassis overcomes road access limitations to provide direct drinking water wells for settlements or temporary shelters. In the energy sector, it supports deep drilling for geothermal resource exploitation; in mining operations, it efficiently constructs hydrogeological exploration holes and integrated prospecting-production boreholes. During extreme environmental crises, it serves as a lifeline for emergency water supply channels in firefighting, geological disaster relief, and other critical scenarios, acting as a versatile tool for subsurface water resource development across industries and scenarios.
Parameter
Technical Parameters of FYX200 Crawler type water well drilling rig | |
Type | FYX200 |
Parameter | Value |
The weight (T) | 4.7 |
Drill pipe diameter (mm) | Φ76 Φ89 |
The hole diameter (mm) | 140-254 |
Drill pipe length (m) | 1.5 / 2.0 / 3.0 |
Drill depth (m) | 200 |
Rig lifting force (T) | 13 |
One-time advance length (m) | 3.3 |
Rapid rise speed (m/min) | 30 |
Walking speed (km/h) | 2.5 |
Fast feeding speed (m/min) | 60 |
Gradeability (Max.) | 30 |
Width of loading (m) | 2.6 |
Equipped capacitor (kw) | 58 |
Hoisting force of winch (T) | 1.5 |
Working air pressure (MPA) | 1.7-2.5 |
Swing torque (N.m) | 3400-4700 |
Air consumption (m³/min) | 17-31 |
Dimensions (mm) | 3950×1750×2250 |
Swing speed (rpm) | 45-70 |
The penetration efficiency (m/h) | 10-35 |
High leg stroke (m) | 1.4 |
The engine brand | Yuchai |
