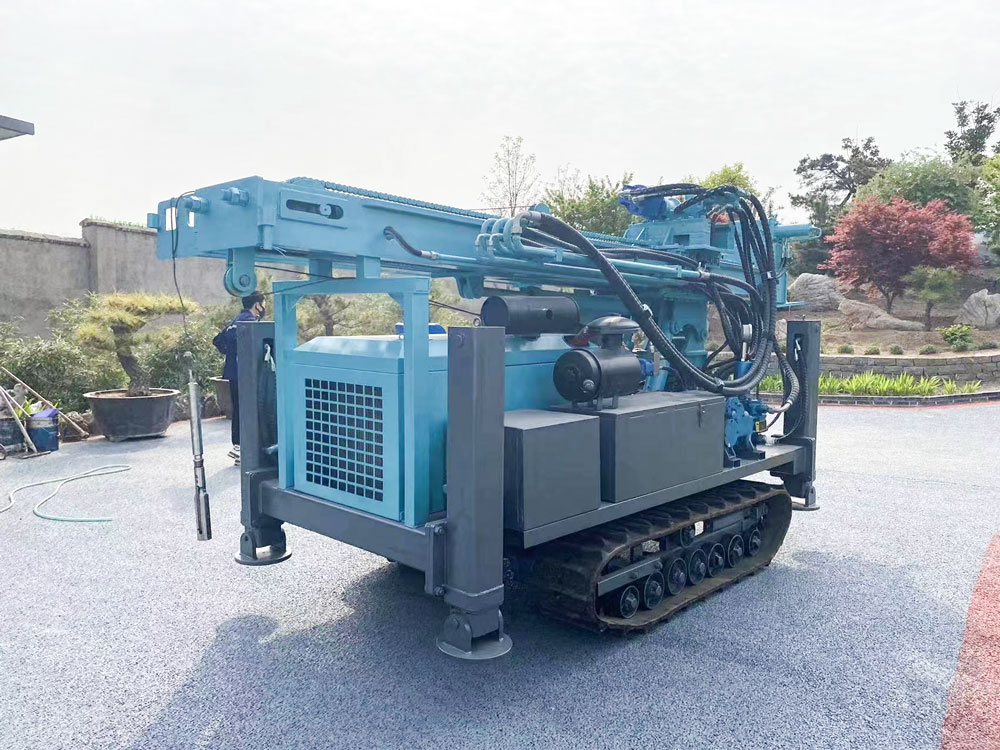

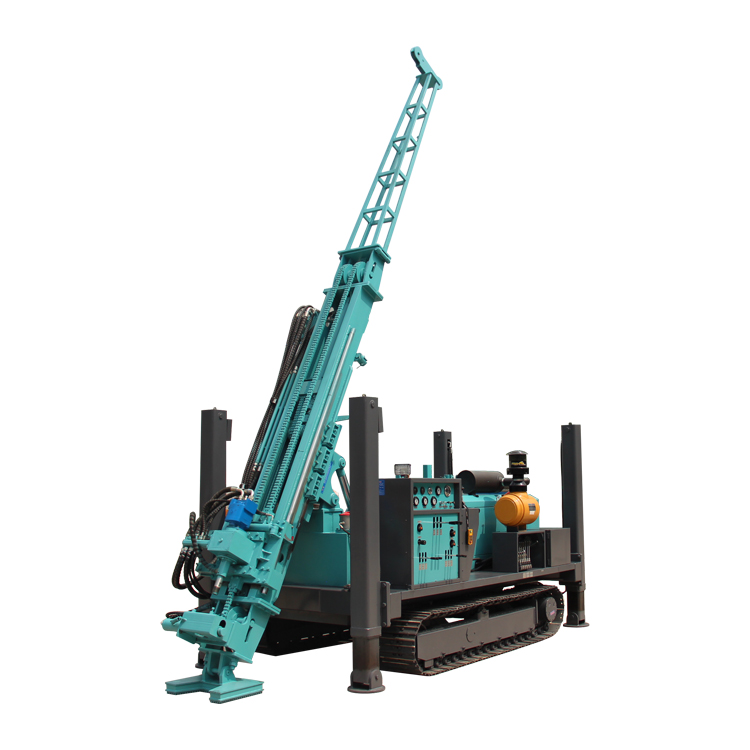

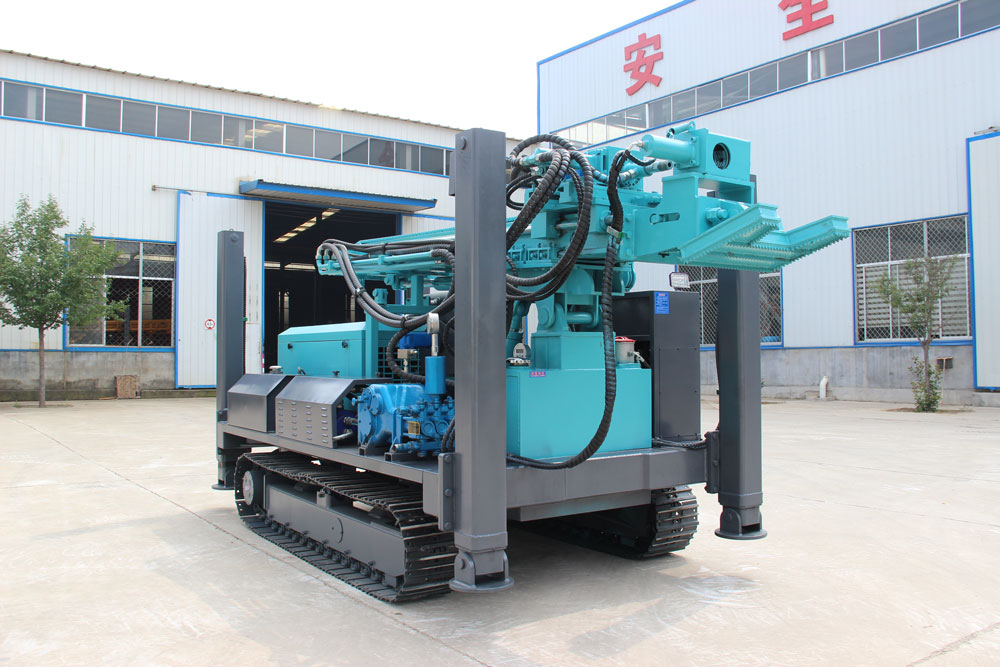

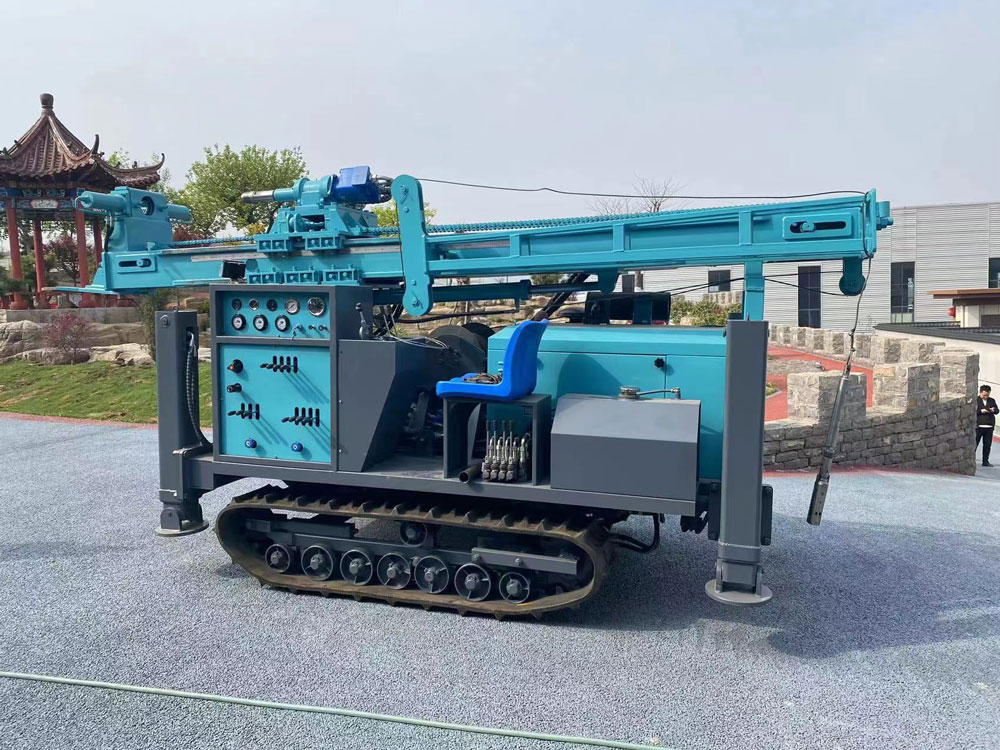

Core Drilling Machine
1.Steel tracks are durable, last longer and protect the machine.
2.It can satisfy both straight and inclined drilling.
3.Large diameter of geological coring and exploration coring, small resistance, fast coring speed and high efficiency.
4.The thickened steel plate protects the drilling rig in all aspects, making it more stable and efficient.
5.Built-in mud pump makes work easier and saves user costs.
1.Introduction of the product
"FD series" integrates the latest technology of Feida, which can be customized according to user needs and adapt to various working environments. The hydraulic clamping system can easily complete the drilling task of 45°-90° drilling angle. The drilling rig is equipped with a high-performance hydraulic oil pump, which makes the machine neater, more flexible and more stable.
"FD series" adopts steel structure and overall thickened steel plate, which increases the stability of the machine and makes it more durable. The operating system has been debugged by Feida engineers for many generations, and it is easy to learn and operate.
The drilling rig power head adopts the industry's advanced manufacturing technology and is suitable for high-torque and high-speed drilling operations. It has a compact structure and strong power.
The unique balanced pressure drilling system in the industry can effectively balance the weight of the drill string and precisely control the drilling pressure, so that the drilling rig can better adapt to the complex formation environment and the requirements of deep hole drilling technology.
The industry's unique electro-hydraulic central control system realizes that all power operations and drilling operations are centralized on the operating console, and at the same time comprehensively monitors the machine status, which is convenient for operation and fault diagnosis.
The drill pipe gripper is equipped with automatic pressure holding and holding function, which can realize synchronous control with the chuck type power head, and the response is rapid, safe and reliable.
Feida's proprietary drilling mud pump handling system, using custom high-pressure mud pumps, light weight, low pulse, can handle high solid phase mud and circulating mud.
2.Parameter
Total Weight（T） | 6.5 |
Drilling diameter(mm) | 60-110 |
Drill pipe specification/drilling depth | NTW/300 |
Drill pipe specification/drilling depth | HTW/200 |
Engine power(kw) | 75 |
Mud Pump Model | BW90-3 |
Gradeability(°) | 30 |
Walking speed（km/h） | 2.5 |
Drill pipe length（m） | 1.5 |
Lifting force(T) | 10 |
Swing speed(rpm) | 0-1200 |
Drilling angle(°) | 45-90 |
Dimension(mm) | 4800*1700*2280 |
