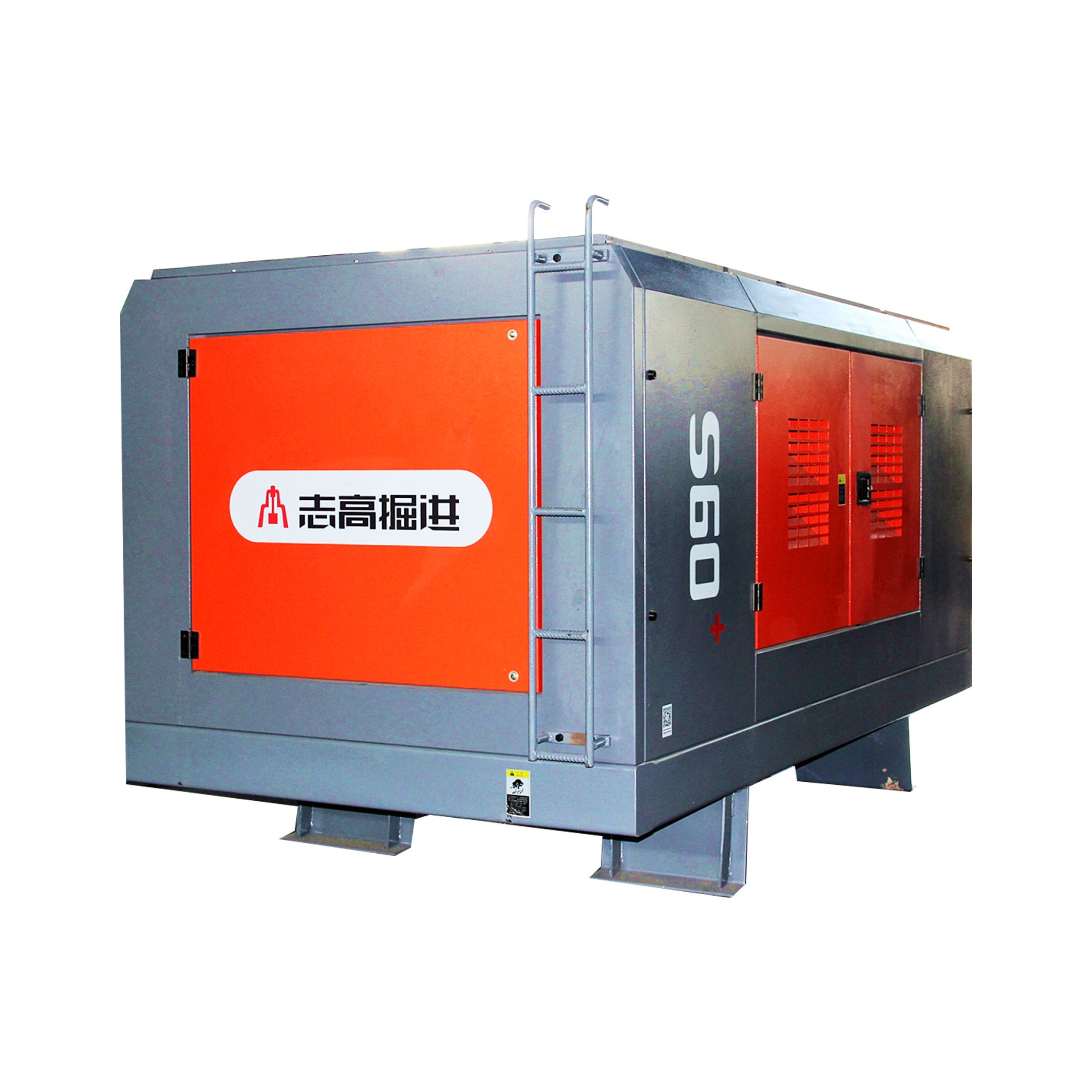

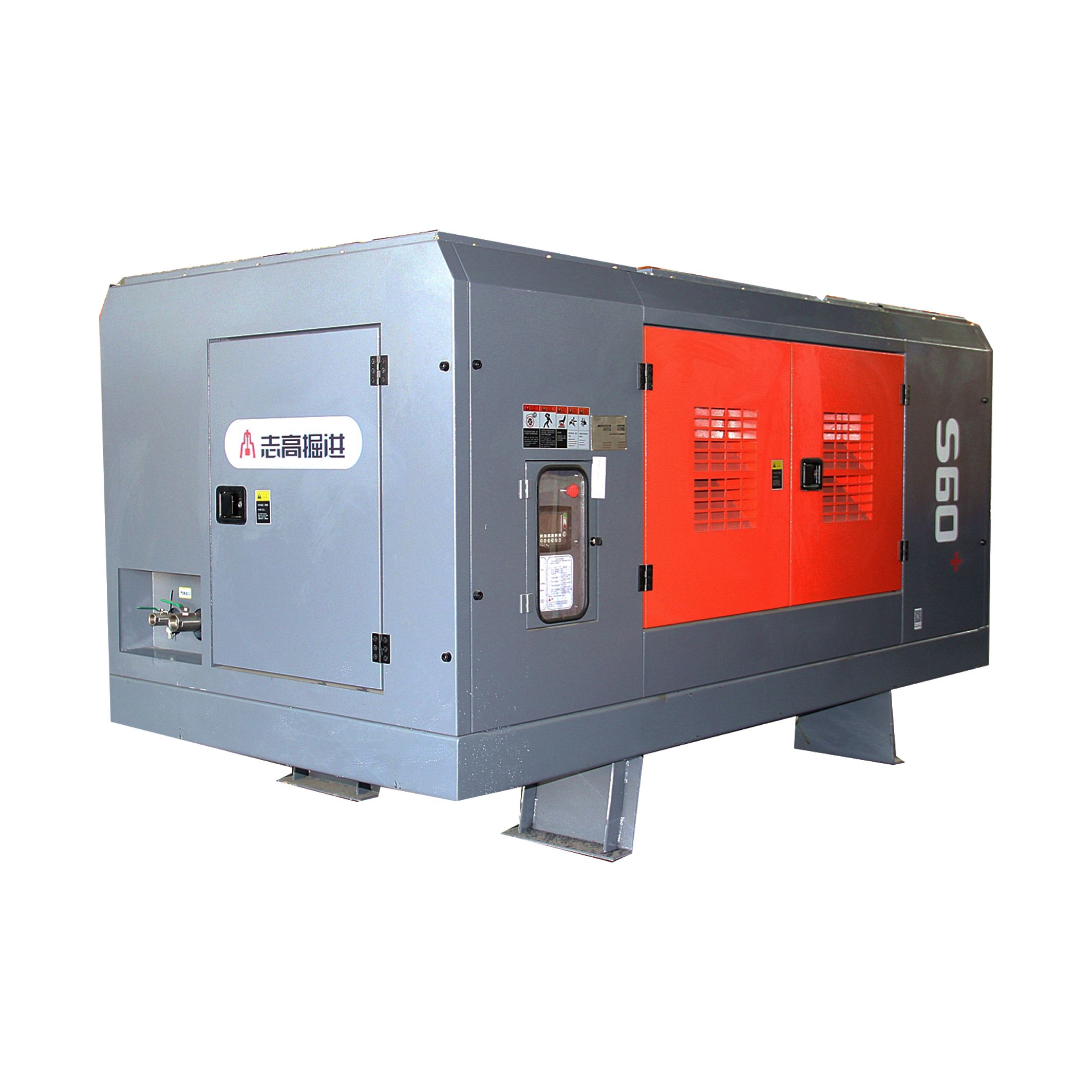

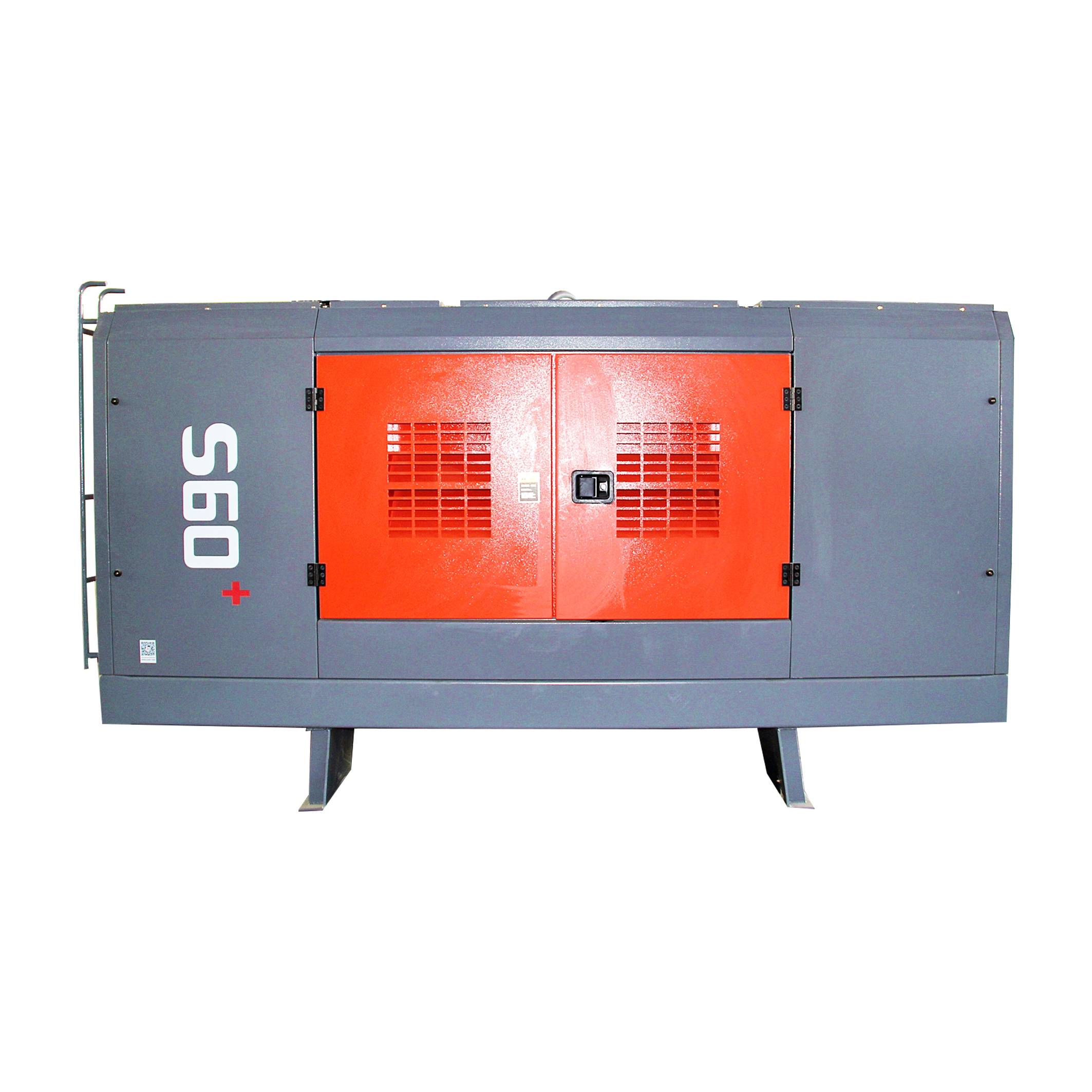

Screw Air Compressor
1.Yuchai or Cummins engines
2.Automatic control and protection system
3.Error free capacity control
4.Deluxe micro-computer florescence control panel
5.All weather models for high altitude operations
6.High quality filtration system with safety filters
1.Introduction of the product
The Screw Air Compressor delivers greater fuel efficiency and energy savings, ensuring cost-effective operation for industrial applications. Designed for demanding environments, it features an advanced air filtration system with vacuum indication, effectively preventing dust ingress and maintaining optimal performance even in harsh conditions.
To maximize reliability, the Screw Air Compressor is equipped with compressor oil and engine coolant coolers, which regulate temperatures to enhance performance and extend engine life. Additionally, its efficient compressor oil filter ensures clean lubrication, reducing wear and tear.
For fuel system protection, this compressor includes a fuel filter with water separator, preventing contamination and ensuring smooth operation. The easy-to-remove, translucent PE fuel tank allows for quick refills and convenient monitoring of fuel levels, minimizing downtime.
Built for durability and ease of maintenance, the Screw Air Compressor is the ideal choice for industries requiring consistent, high-performance compressed air.
2.Parameter
Model | S60+ |
The whole machine | |
Nominal volume flow m³/min | 18 |
Rated exhaust pressure bar | 18 |
maximum traction speed | 20km/h |
maximum working Angle | 12° |
Noise power level | 110dBA |
The unit weight | 3300kg |
Length*Width*Height | 3600*1750*2290 |
Working altitude | |
Maximum removal height | 2000m |
Diesel Engine | |
Manufacturer | YUCHAI |
Rated Power KW | 162 |
Electrical system working voltage | 24V |
Rated capacity of incense battery | 200Ah/ea |
Compressor | |
Quantity and specification of air supply valve | G2 G1-1/2 |
