Second Hand Borewell Drilling Machine
High Drilling Efficiency
Top-drive rotation system powered by a 65KW diesel engine delivers strong torque and fast drilling performance.
All-Terrain Mobility
Mounted on a self-propelled chassis or tractor, it offers excellent maneuverability on complex roads and rough terrain.
Wide Application Scope
Ideal for hydrological exploration, geothermal wells, coalbed methane, and rescue operations in coal mines.
Durable & Easy to Operate
Built with a robust design for long service life, integrated automation, and user-friendly controls for efficient loading, unloading, and operation.

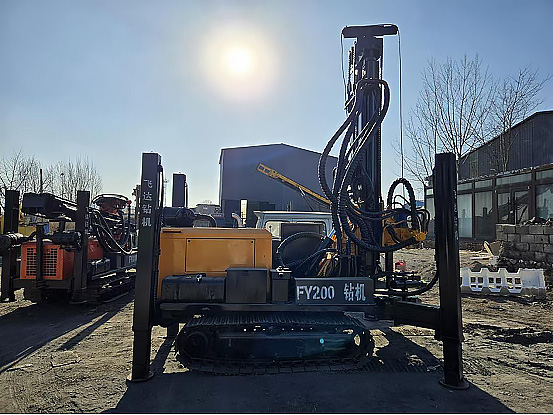

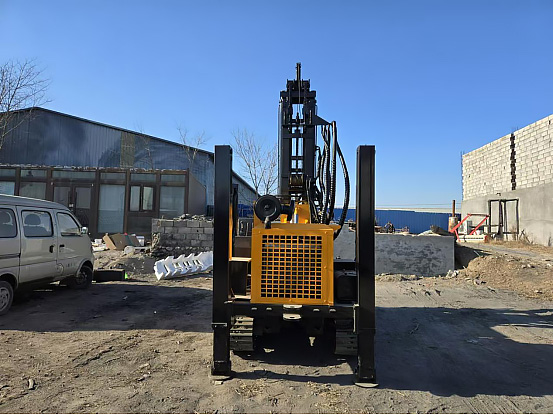

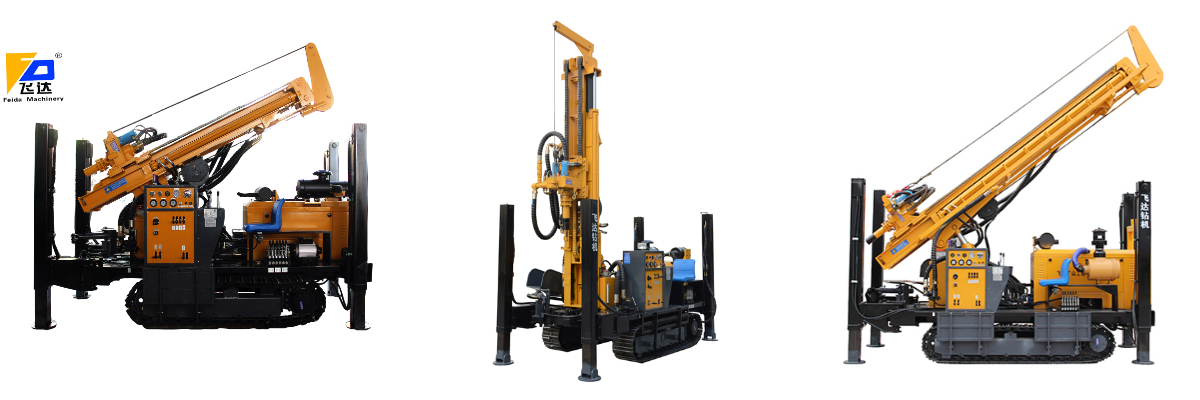

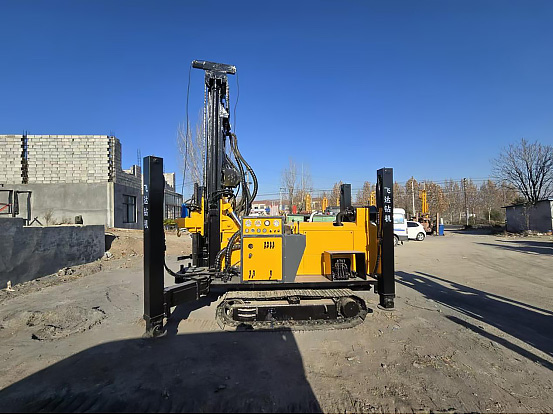

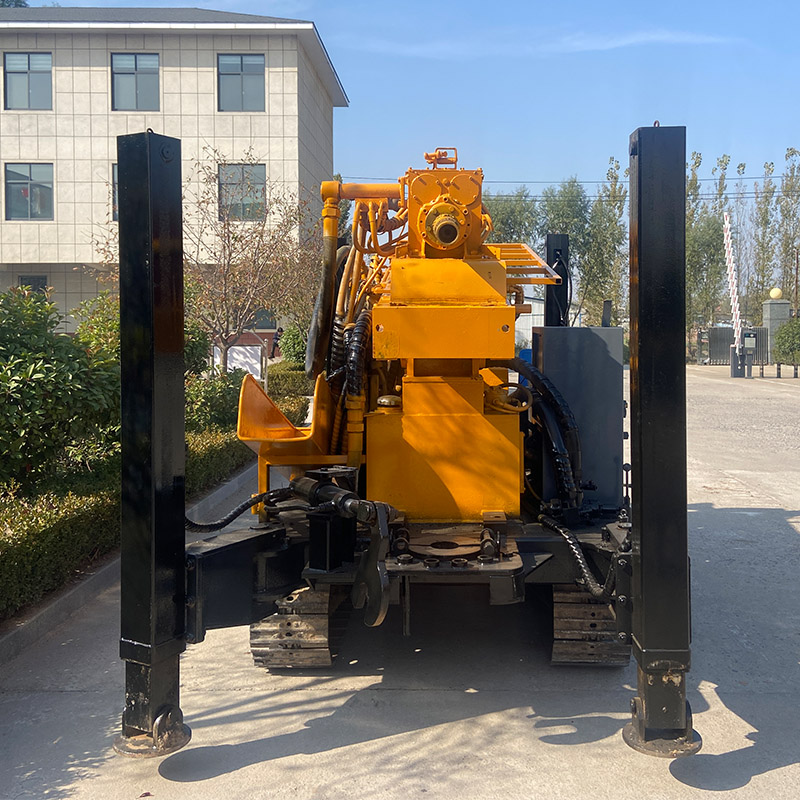

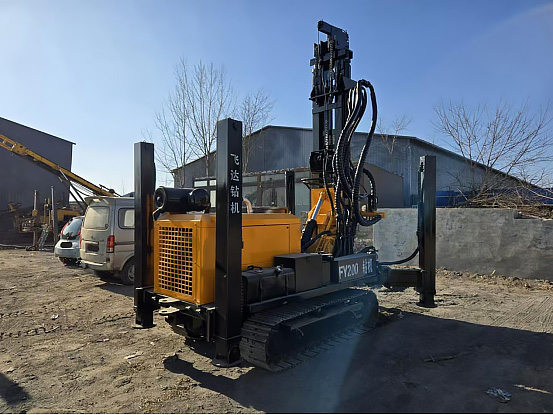

FY200METER USED WATER WELL DRILLING RIG
1.This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling
efficiency.
2. Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
3.The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
3. Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
FEATURES AT A GLANCE
1.High drilling efficiency, power provided by 65KW diesel engine
2.High efficiency, large rotary torque 3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating
|
|
PRODUCT SPECIFICATIONS
Item | Data |
Power | 37.5KW |
Dimension | 4000*17500*2450mm |
The hole diameter | 140-305mm |
Drilling depth | 200m |
Rig lifting force | 12T |
Tipping load | 60kN |
Swing speed | 45-70rpm |
Swing torque | 3500-4800N.m |
