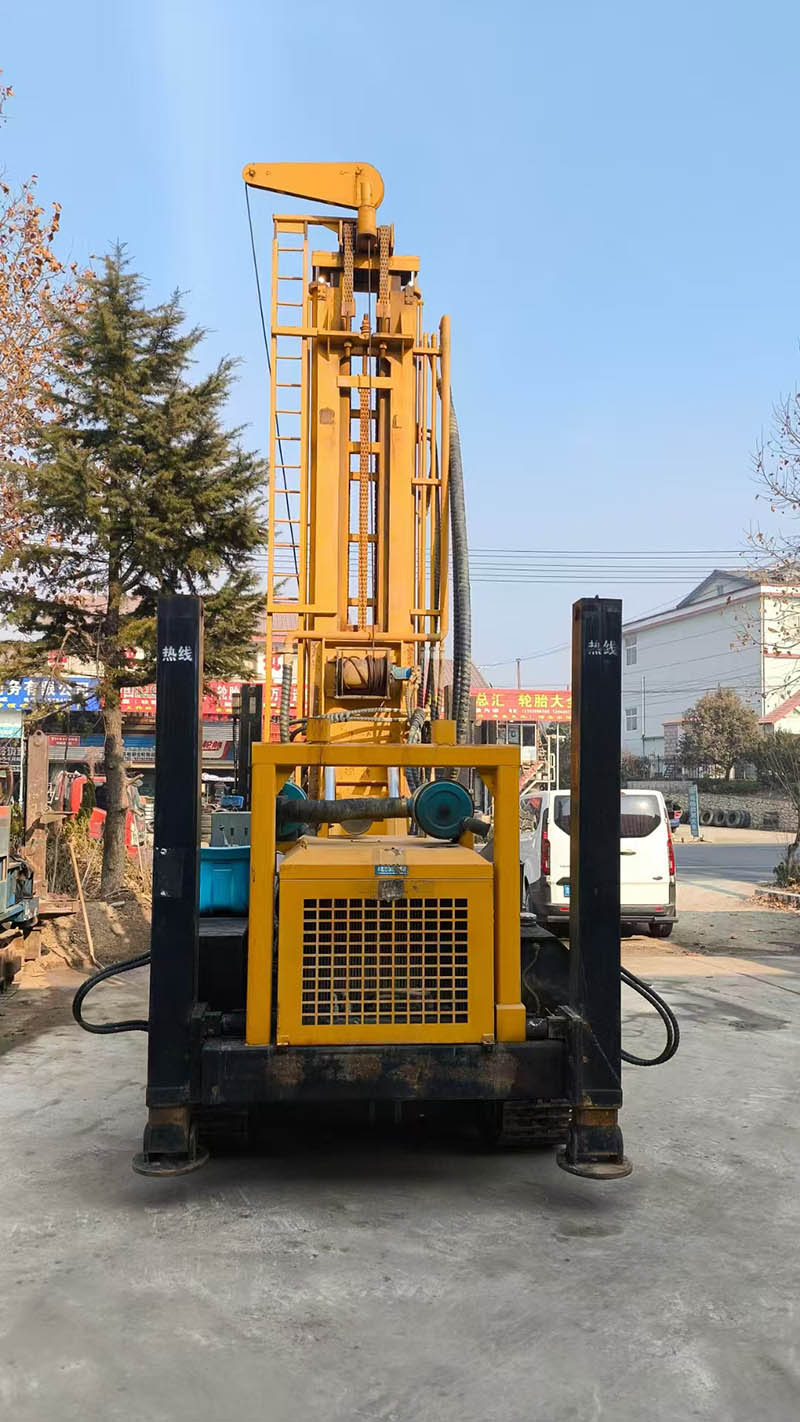

Used Borehole Drilling Machine
Drills up to 350m – Ideal for deep wells and geothermal use.
Strong Top-Drive Power – High torque for fast, efficient drilling.
Multi-Method Support – Works with mud, air, and foam drilling.
Crawler Mobility – Handles tough, uneven terrain with ease.
Durable & Low Maintenance – Built to last, cost-effective to operate.

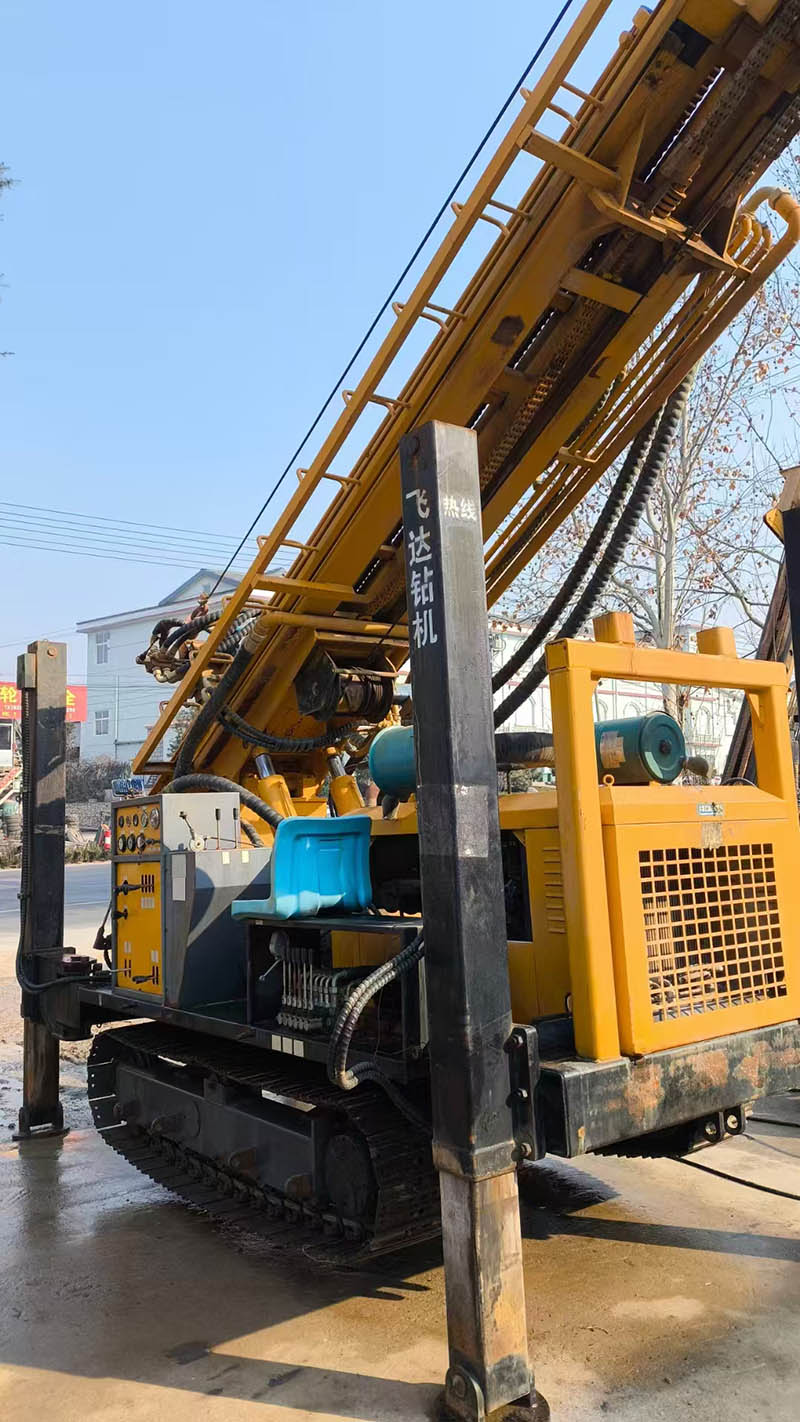

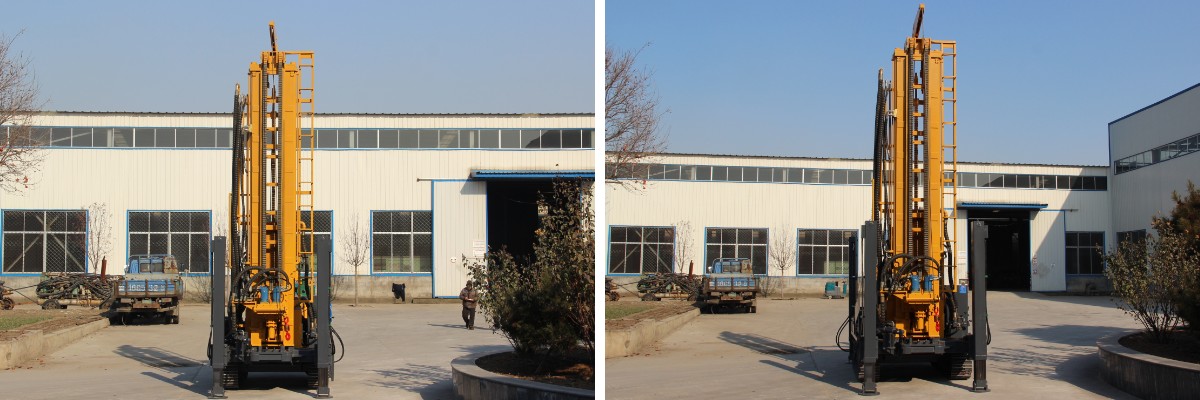

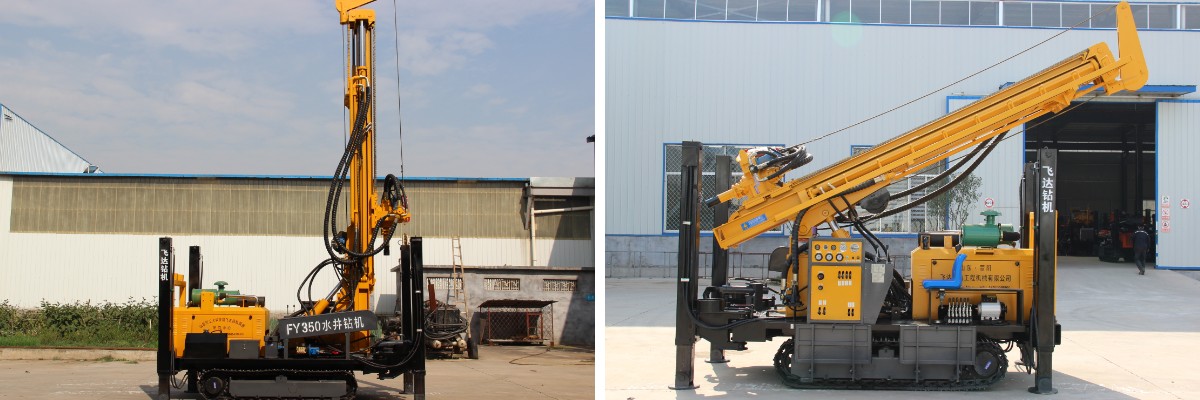

FY350METER USED WATER WELL DRILLING RIG
The FY350meter Used Water Well Drilling Rig is a powerful and reliable drilling solution designed for efficient water well construction in various geological formations. With a drilling depth capacity of up to 350 meters, this rig is ideal for deep well drilling, geothermal heating, agricultural irrigation, and industrial water supply projects.
Equipped with a high-torque top-drive hydraulic system, the FY350 delivers strong rotational force and fast penetration rates, significantly improving drilling efficiency. Its crawler-type chassis ensures excellent mobility across tough terrain, while the fully hydraulic control system simplifies operations and enhances stability during drilling.
The rig supports multiple drilling methods, including mud rotary drilling, air drilling, and foam drilling, making it highly adaptable to different soil conditions. With a durable frame and low maintenance design, the FY350 is not only cost-effective but also built to perform in demanding environments.
Specification
item | value |
Applicable Industries | Farms, Home Use, Retail, Construction works , Energy & Mining |
Showroom Location | None |
Condition | New |
Power Type | Diesel |
Place of Origin | China |
Shandong | |
Brand Name | Feida Machinery |
Usage | Water Well |
Voltage | diesel engine |
Dimension(L*W*H) | 6000*2000*2550mm |
Weight | 8600KG |
Marketing Type | Other |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Pump, Engine |
Key Selling Points | Competitive Price |
Drilling Diameter | 140mm-325mm |
Drilling Depth | Max.350m |
Mobility | yes |
drill pipe diameter(mm) | 89 102 |
the hole diameter(mm) | 140-325 |
drill pipe length(M) | 1.5 2.0 3.0 6.0 |
one-time advance length(m) | 6.6 |
walking speed(km/h) | 2.5 |
equipped capacitor(kw) | 91 |
using air pressure(MPA) | 1.7-3.4 |
swing speed(rpm) | 66-135 |
the penetration efficiency(m/h) | 15-35 |
Engine brand | yuchai engine |

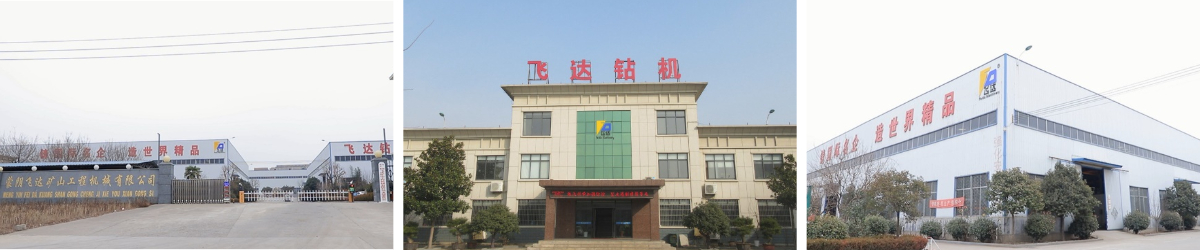

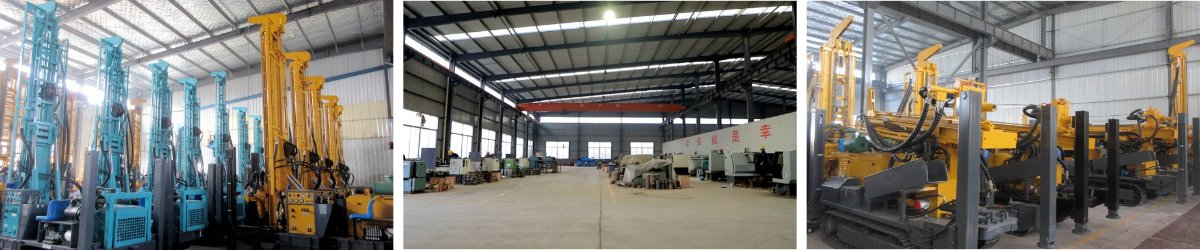

Company Profile
Mengyin Feida Mine Engineering Machinery Co., Ltd.. is located in Linyi City, Shandong Province.Mengyin Feida Mining Engineering Machinery Co., Ltd. is the largest manufacturer of water well drilling rig and DTH drilling rig in Shandong Province.Founded for more than 20 years, the company is committed to developing the professional production of DTH drilling rig, water well drilling rig, drilling tool and air compressor.Feida company has independently developed a new generation of kqz-100, kqz-200 and FY series water well drilling rigs, and the company has won a number of national intellectual property rights patents.Feida drilling rig has passed ISO9001 international quality management system certification, and has established "Feida drilling rig equipment research center" with Shandong University of Technology to provide better guarantee for product R & D and product quality.We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
