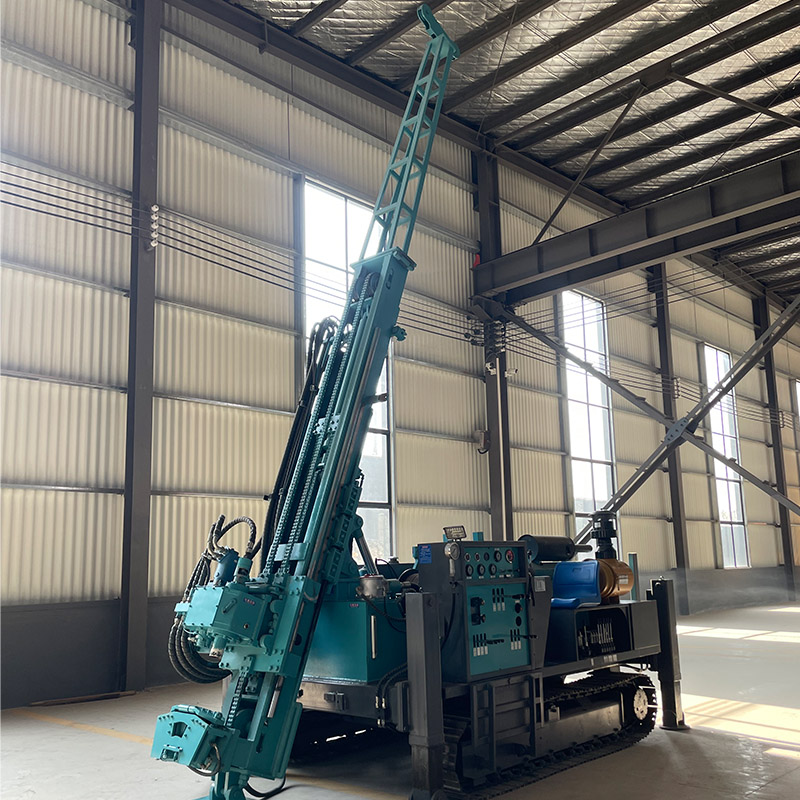

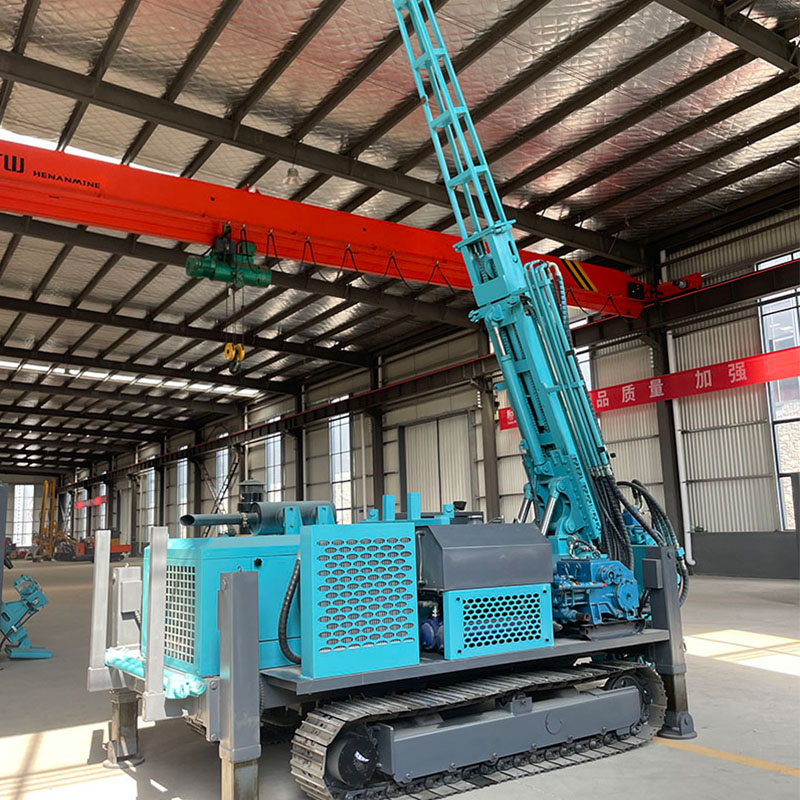

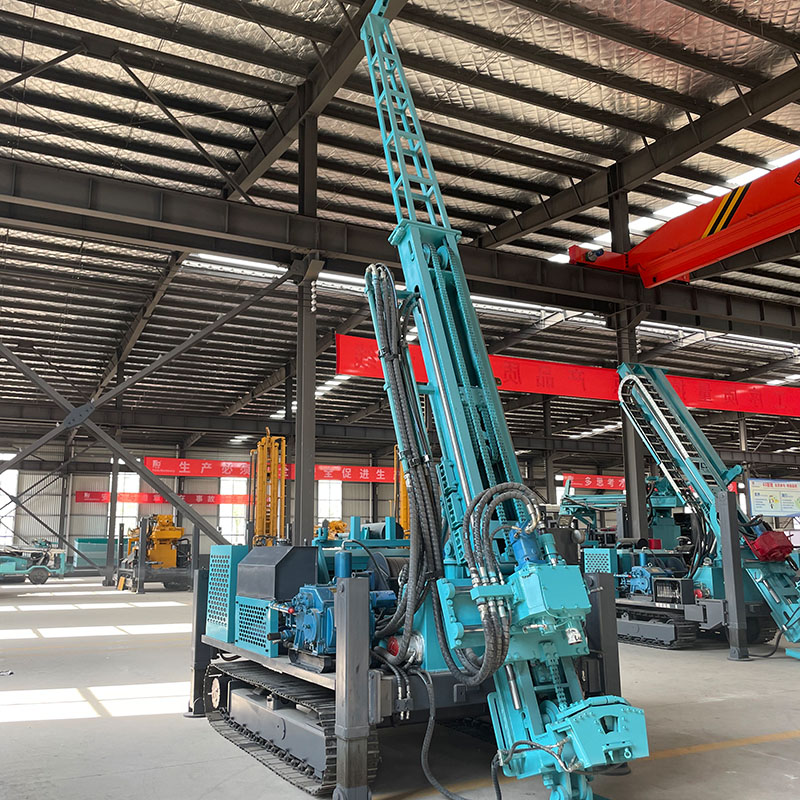

Core Drilling Machine for Mining
Fully Hydraulic Operation
Smooth drilling at 45°–90°, ideal for deep core drilling.
High-Torque Power Head
Strong, compact, and built for tough formations.
Centralized Control System
One console for full control and real-time monitoring.
Heavy-Duty Steel Build
Durable, stable, and easy to operate.
Efficient Mud System
High-pressure pump handles thick and recycled mud.

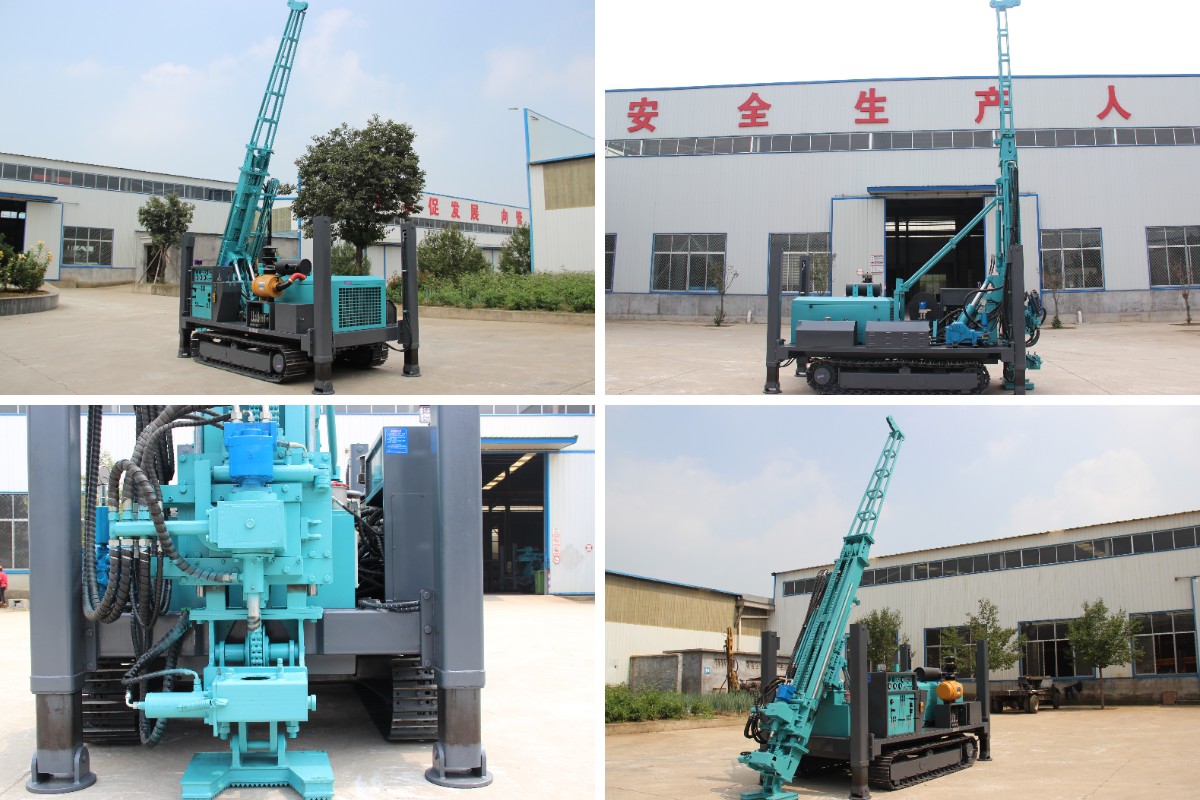

Product Description of FD800 Core Drilling Rig:
Core drilling rig features:
Fully Hydraulic Core Exploration Drilling Rig "FD series" is the latest fully hydraulic rope core exploration drilling rig developed by Feida. It can be customized according to the needs of users to adapt to various working environments. The hydraulic clamp system makes it easy to complete the drilling task with a drilling angle of 45°-90°. The machine comes with a mud dyeing pump to make the work easier and save user costs. The drilling rig is equipped with a high-performance hydraulic oil pump to make the machine more flexible and stable "FD series" adopts steel structure and thickened steel plate as a whole to increase the stability of the machine and make it stronger and more durable. The operating system has been debugged by Feida engineers for many generations, which is easy to learn and easy to operate.
Core drilling rig features:
The power head of the drilling rig is made of the industry's advanced manufacturing technology, which is suitable for high-torque, high-speed, and high-speed drilling operations. It has strong power while ensuring a compact structure. The unique balanced pressure drilling system in the industry can effectively balance the weight of the drill string and precisely control the drilling pressure, so that the drilling rig can better adapt to the complex formation environment and the technical requirements of deep hole drilling. The industry's unique electro-hydraulic central control system realizes all power operations and drilling operations in a centralized manner on the operator's console, and at the same time fully monitors the machine status to facilitate operator fault diagnosis. The drill pipe holder has the function of automatic pressure maintaining and clamping, and can be used with the chuck type power head Realize synchronous control, quick response, safe and reliable. Feida's proprietary drilling rig mud treatment system adopts a customized high-pressure mud pump, which is light in weight and small in pulse, and can handle high solid phase mud and circulating mud.
Specification of FD800 Core Drilling Rig:
Overall weight (T) | 7.5 | Dimension (mm) | 5500*2000*2300 |
Drilling diameter (mm) | 60-110 | Drilling depth (m) | 600 |
Traveling speed (km/h) | 2.5 | Climbing ability (max) | 30° |
Mud pump model | BW90-3 | Drilling angle (°) | 45°-90° |
Drill pipe length (m) | 1.5 | Main machine power (kw) | 118kw |
Lifting force (T) | 12 | Slewing speed (rpm) | 0-1200 |
Application of FD800 Core Drilling Rig:

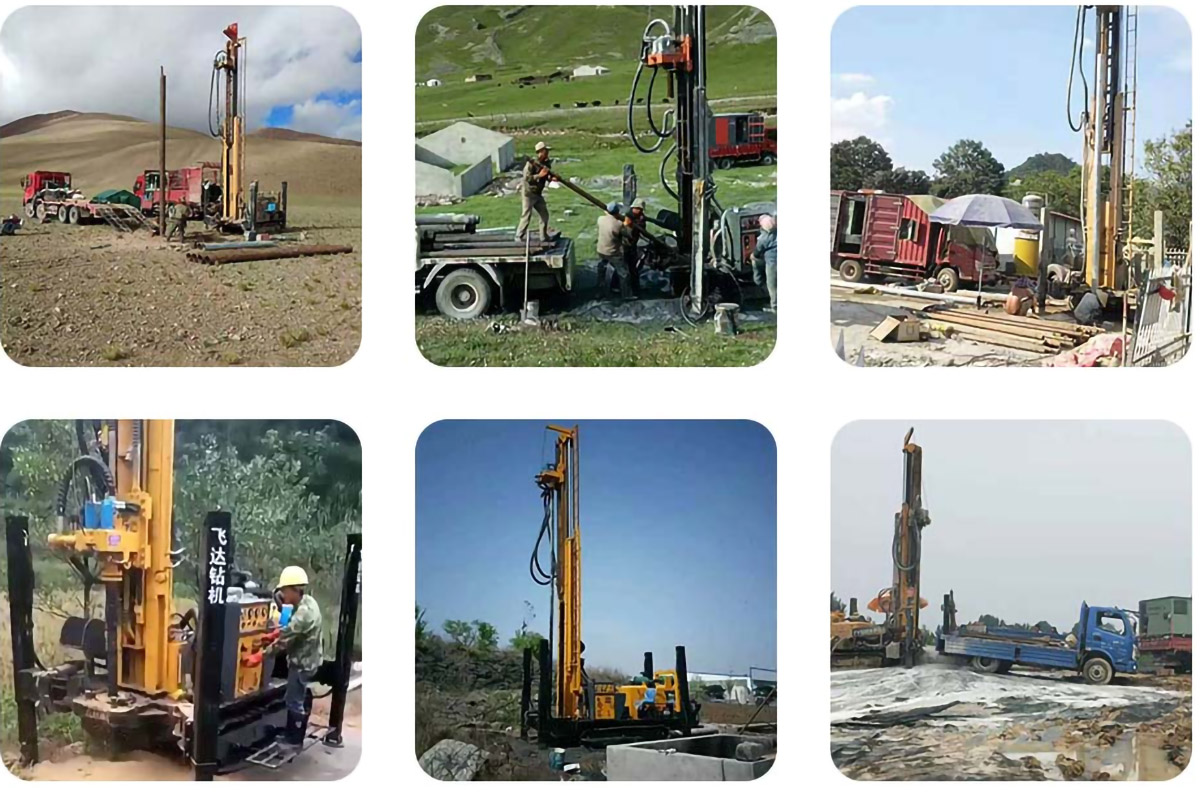

The following are feedback pictures from customers of water well drilling rigs, which are suitable for various working conditions

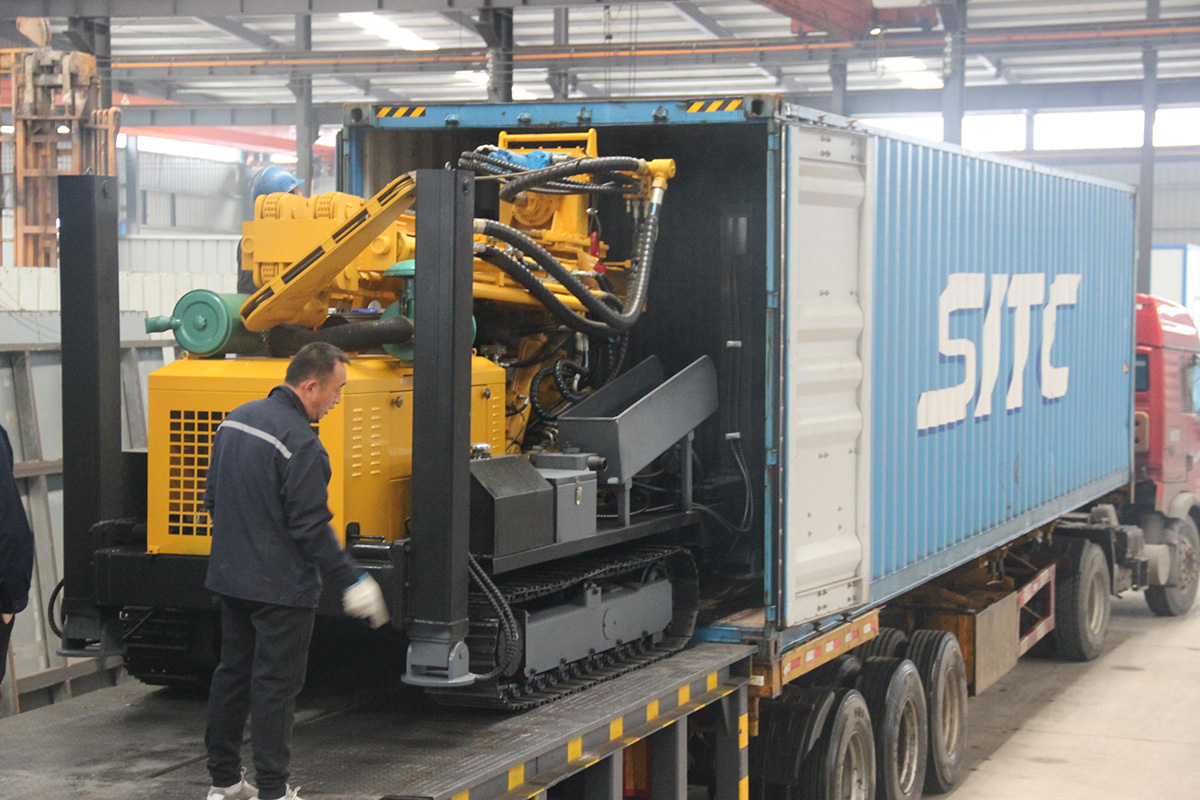

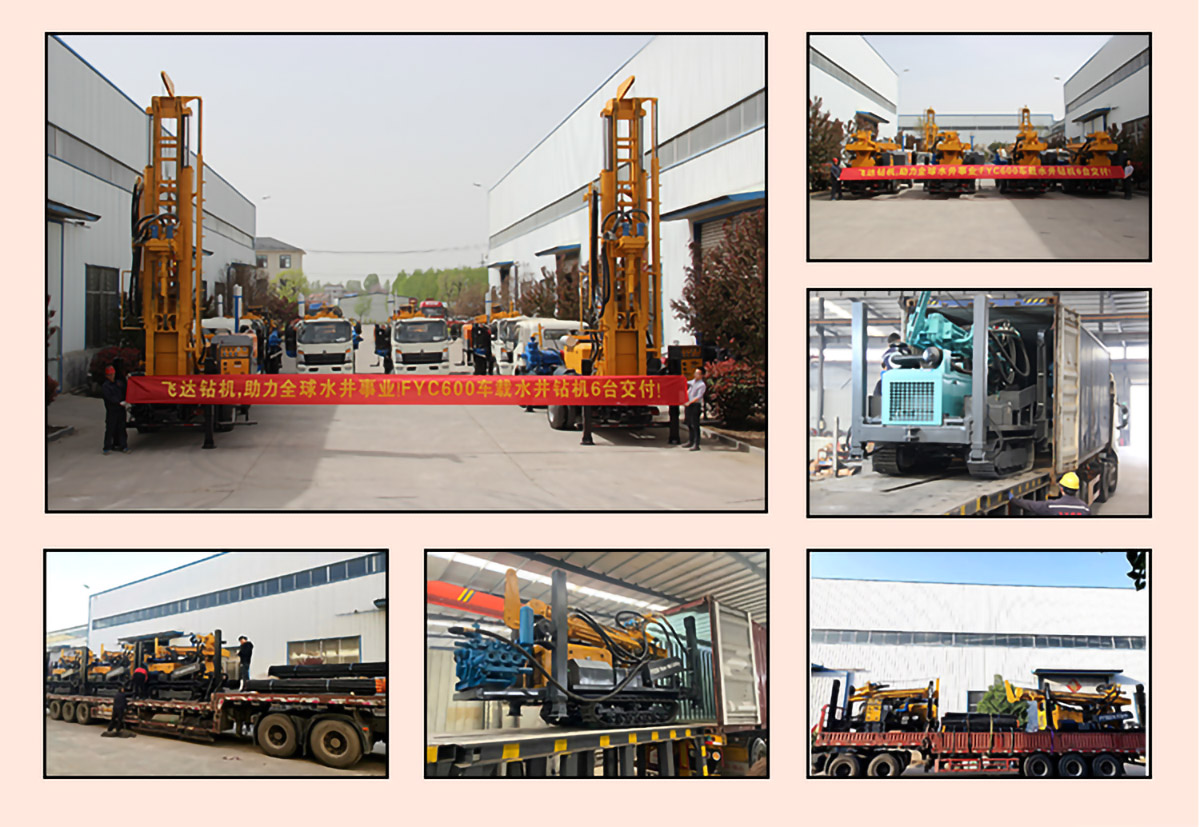

Packing & Delivery
