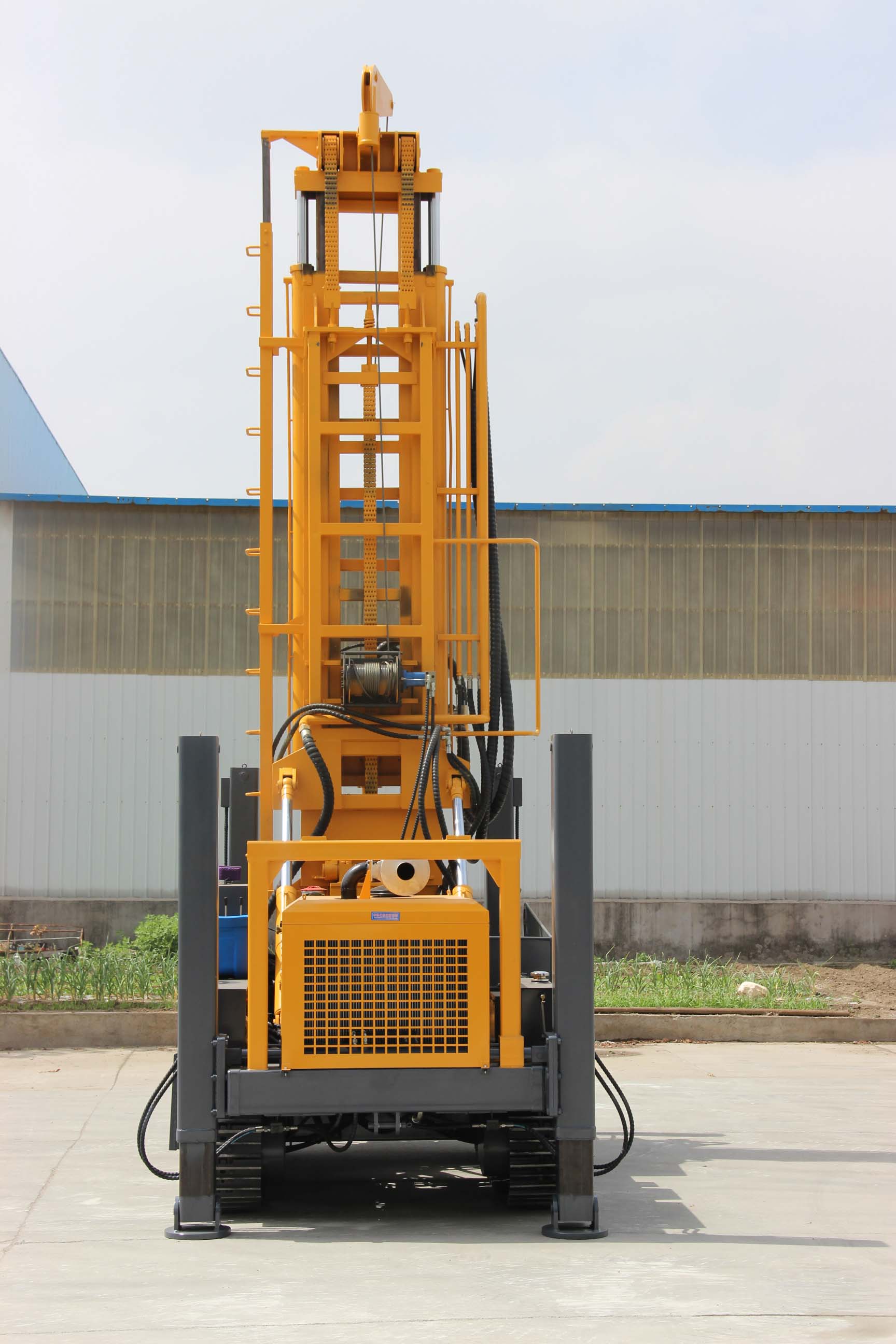

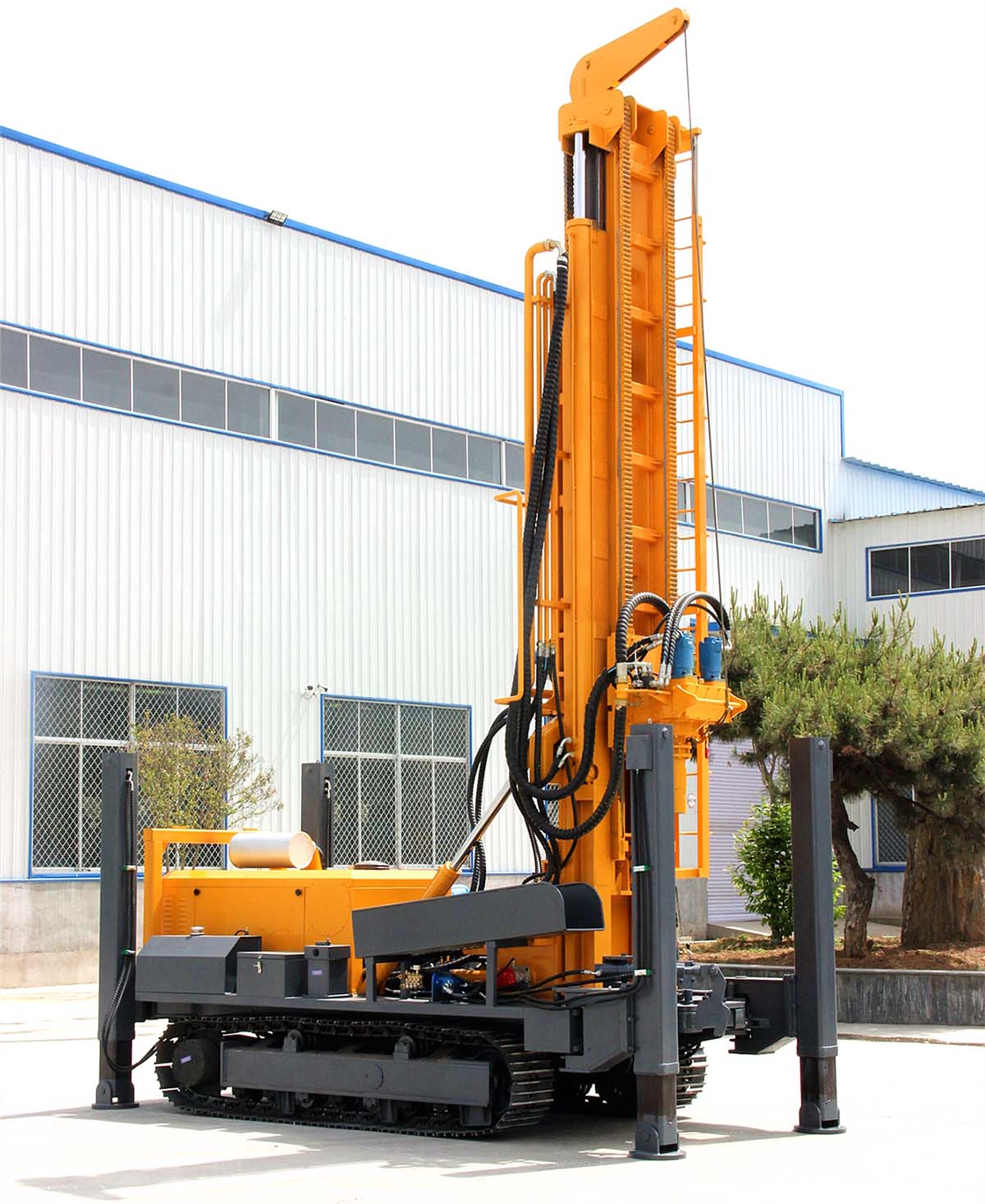

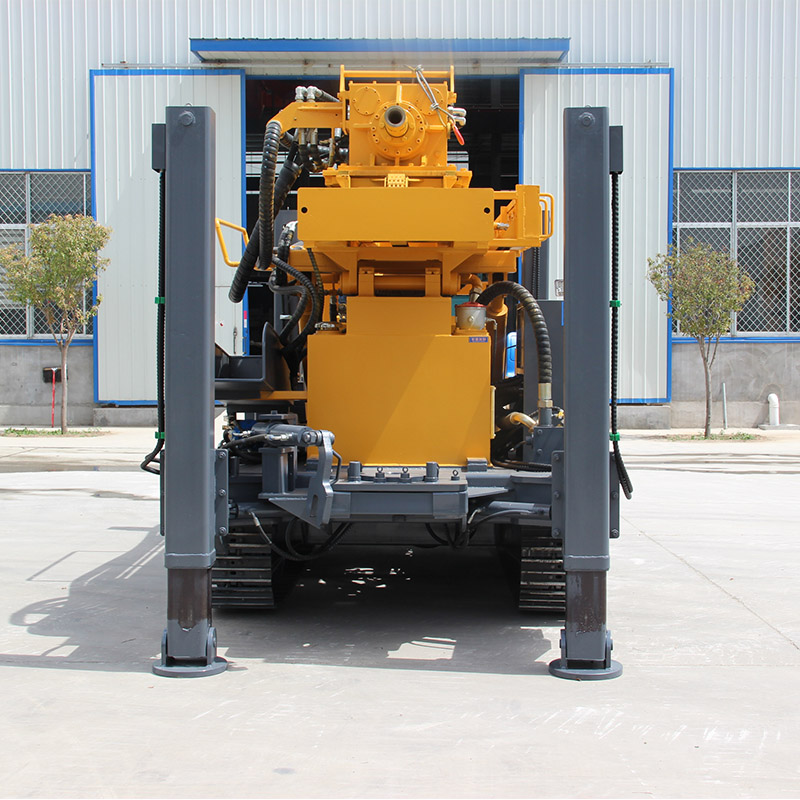

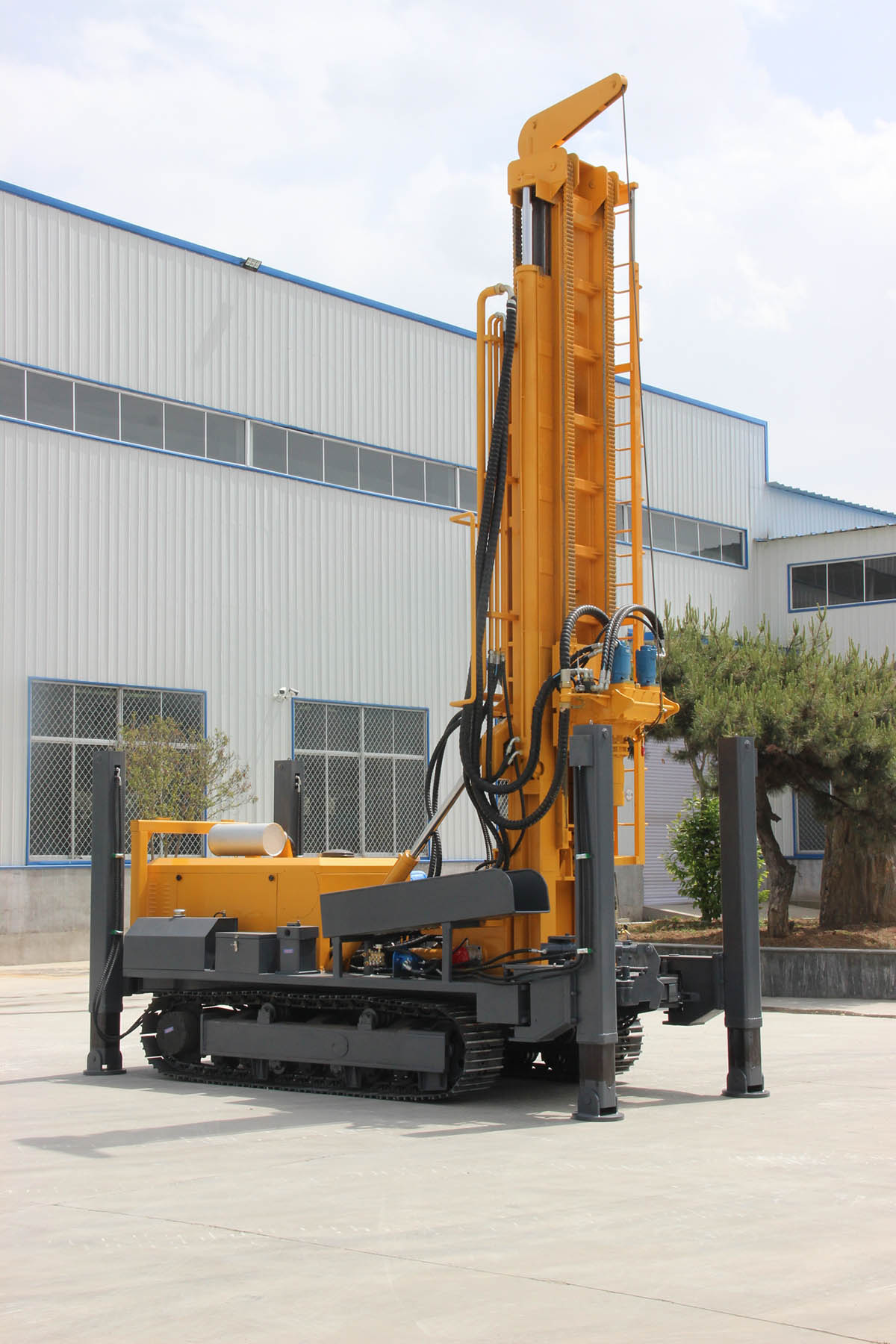

800m Crawler Water Drilling Rig
1. Strong Power – 153kW Cummins turbo engine for high performance and durability.
2. Efficient Drilling – Fast, deep, large-diameter hole drilling.
3. Durable Build – Reinforced boom and heavy-duty steel crawler chassis.
4. Reliable Systems – Advanced hydraulics and dual cooling for stable operation.
5. Dual Modes – Supports both air and mud drilling systems.
Product Description of 800m Water Drilling Rig:
800 meter diesel hydraulic crawler portable water well drilling rig. 6.6m tower Cummins Engine 153KW Just send an inquiry and you will get our catalog. Now some products have big discounts!
FY800 Water well drilling rig | |||
Model | FY800 | Walking Speed | 2.5km/h |
Weight | 13000Kg | Climbing Angles | 30Max. |
Hole Diameter | 140-400mm | Using Air Pressure | 1.7-3.5MPA |
Engine | Diesel Engine | Air Consumption | 17-42m³/min |
Drilling Depth | 800m | Swing Speed | 45-140rpm |
Engine Power | 153KW(Cummins engine) | The Penetration Efficiency | 15-35m/h |
Dimension | 6300*2300*2950mm | Rig Lifting Force | 30T |
Hoisting force of winch | 2T | Rapid Rise Speed | 20m/min |
Tower | 6.6m | Fasting Feeding Speed | 40m/min |
Drill rod Diameter | 102mm 108mm 114mm | Width of Loading | 2.95m |
Drill rod Length | 1.5m 2.0m 3.0m 6.0m | Swing Torque | 9000-14000N.m |
Main Features:
1. Equipped with a 153KW Cummins brand 6-cylinder turbo engine with strong power and long service life;
2. Patented design compound boom, double oil cylinder lift, strengthen the tower;
3. (Italy imported oil pump) 3 oil pumps, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder;
4. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
5. The diameter of the hole is large, the hole is deep, and the advancing speed is fast.
6. Drilling rig chassis: Reinforced steel crawler, large chassis, strong and durable, heavy bearing, wide chain plate, large tonnage.
7. Parallel transmission design, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
8. The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life
9. Equipped with dual systems: 1. Air power system with air compressor 2. Mud pump system with mud pump.

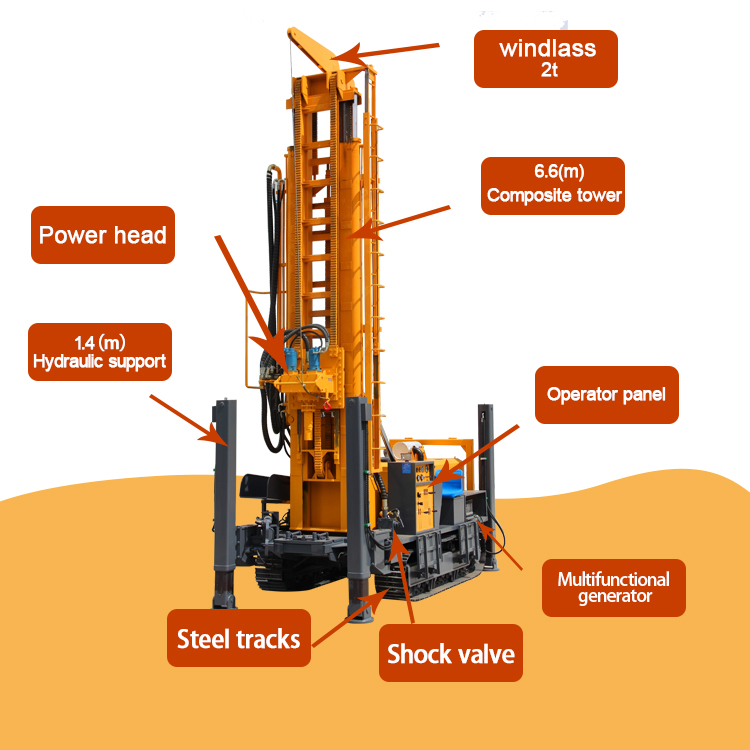

Product Show

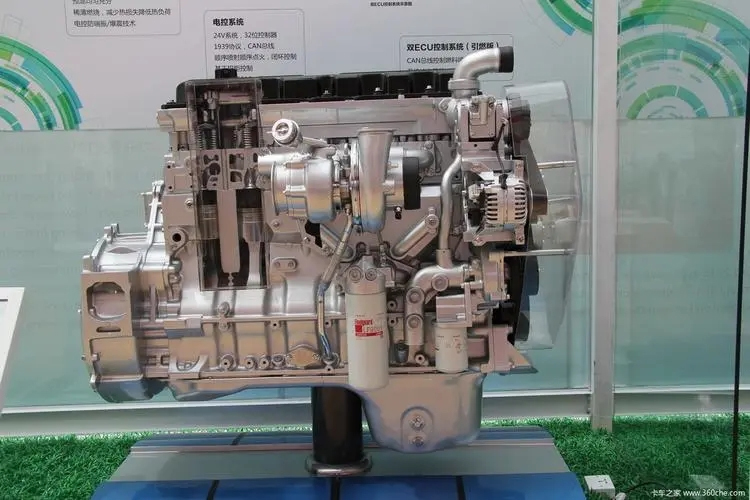

Cummins Engine Famous international brand, 153KW generator, strong power, long service life.
|
|

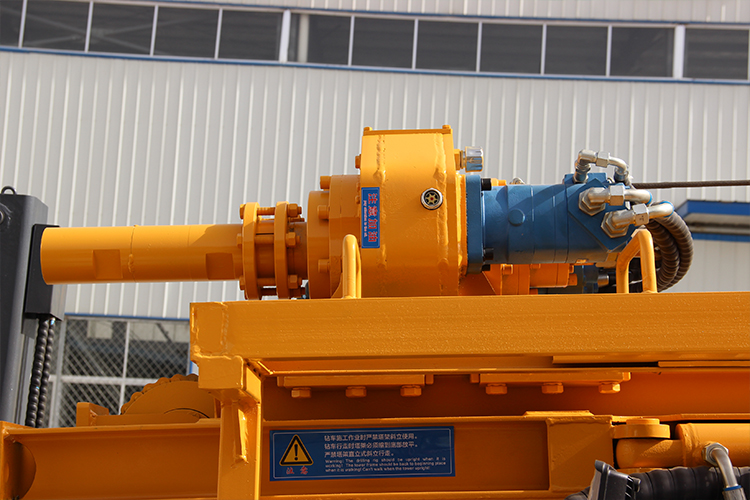

 | Power Head Device Send the oil to the friction parts of the engine to lubricate the engine |
Control Stage Play a control role, easy to operate, save time and effort.
|  |

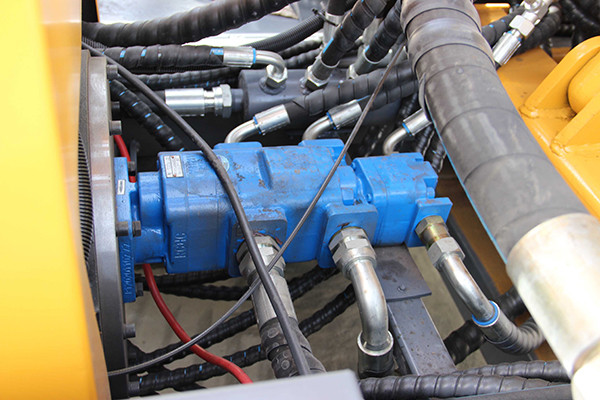

 | Oil Pump Send the oil to the friction parts of the engine to lubricate the engine.
|

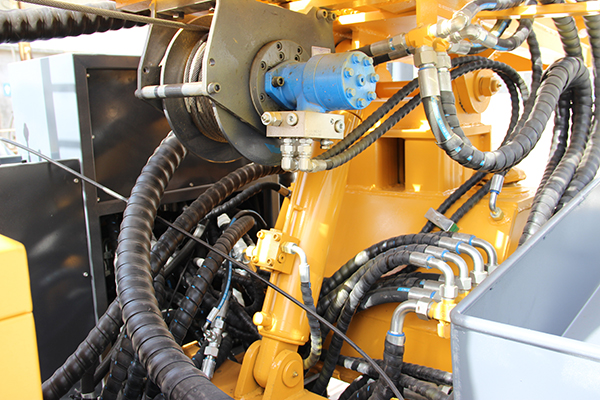

Winch 1500kg pulling force can assist the driller in loading and unloading drill pipe, drill bit and impactor, which saves time and labor
|
|

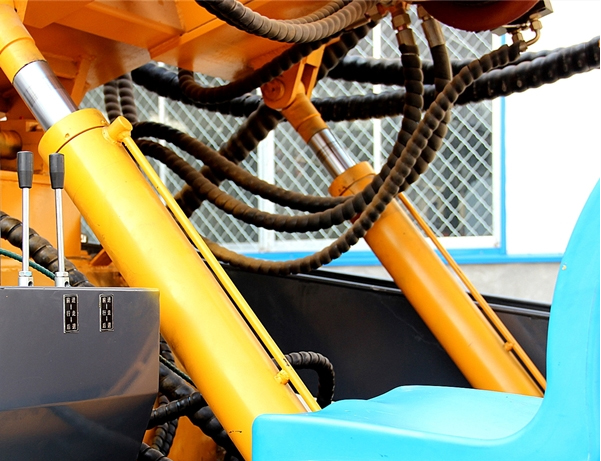

| Strut Cylinder Hold up the arms of the tower.
|

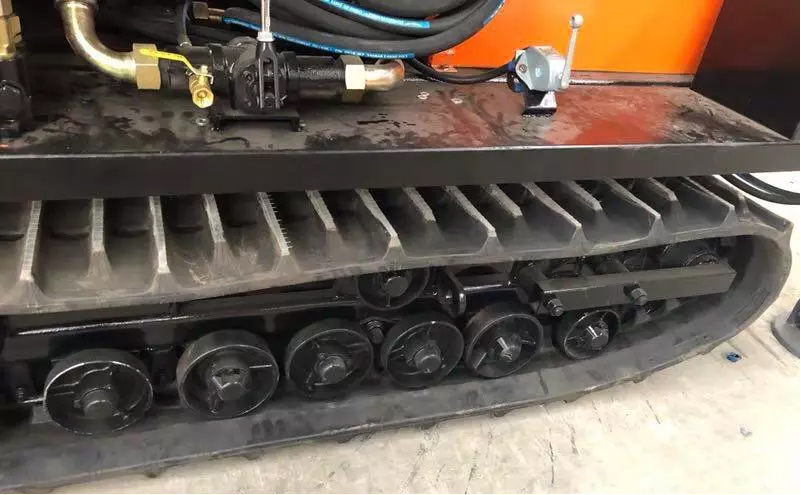

Rubber Crawler Steel and Rubber track for optional which adaptable to all terrains.
|
|

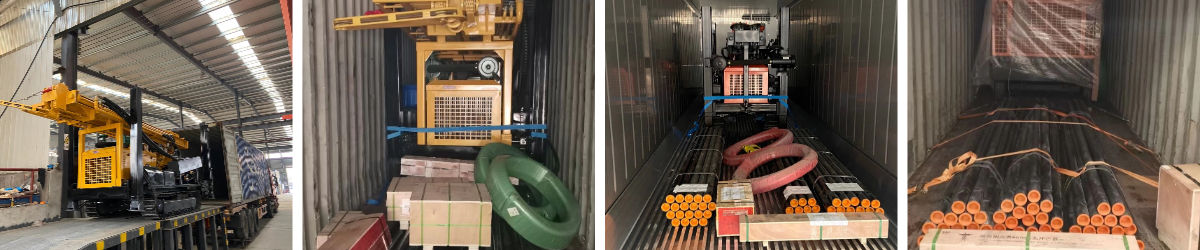

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided

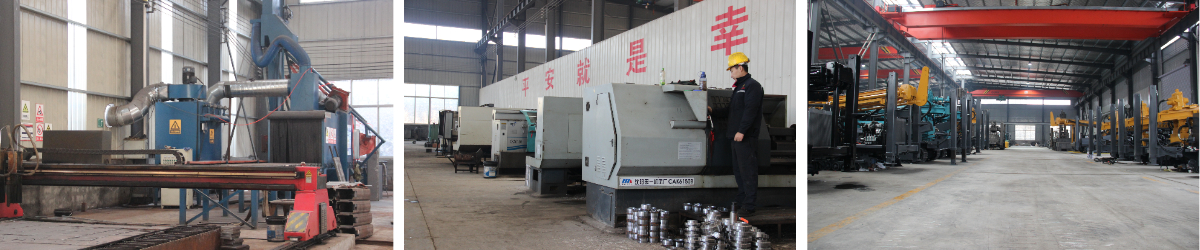

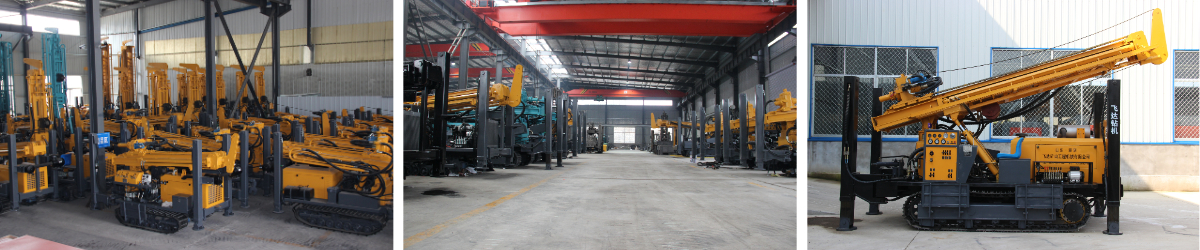

Company Profile

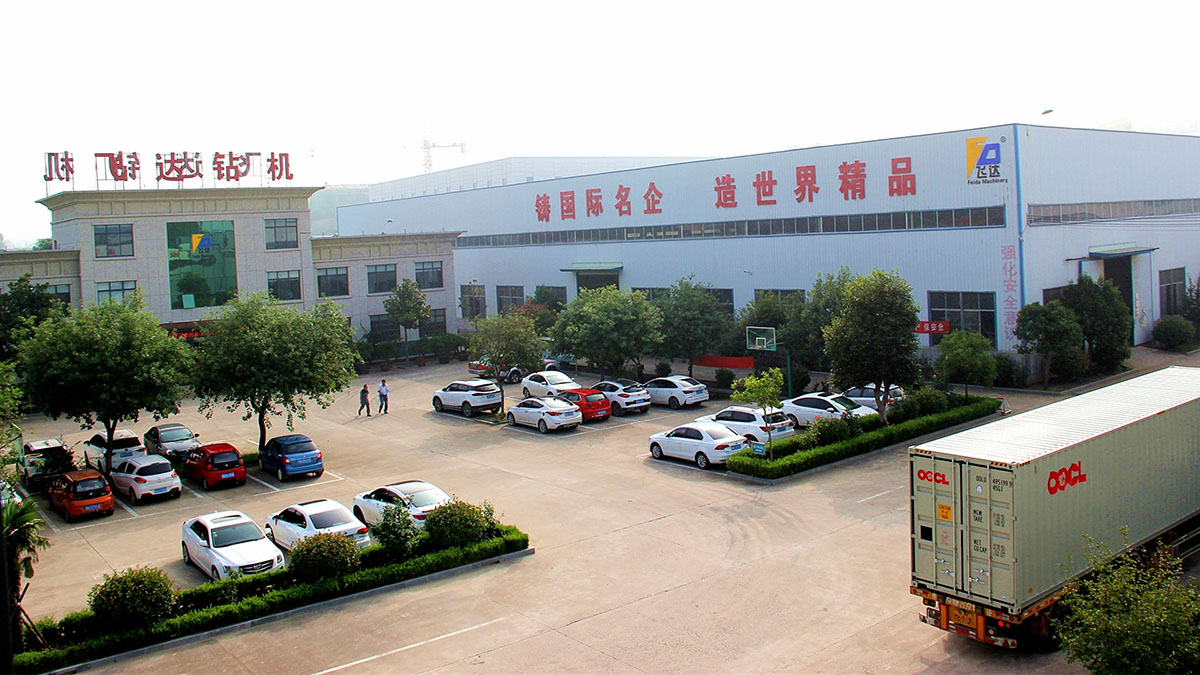

Mengyin Feida Mining Construction Machinery Co., Ltd. is the largest producer of well drilling rig and DTH drilling rig in Shandong Province. For more than 20 years since its establishment, the company has been committed to the development of professional production of submersible drilling rig, water well drilling rig, drilling tools and air compressor, and has obtained a number of national intellectual property rights patents. Feida drilling rig has passed ISO9001 international quality management system certification.
