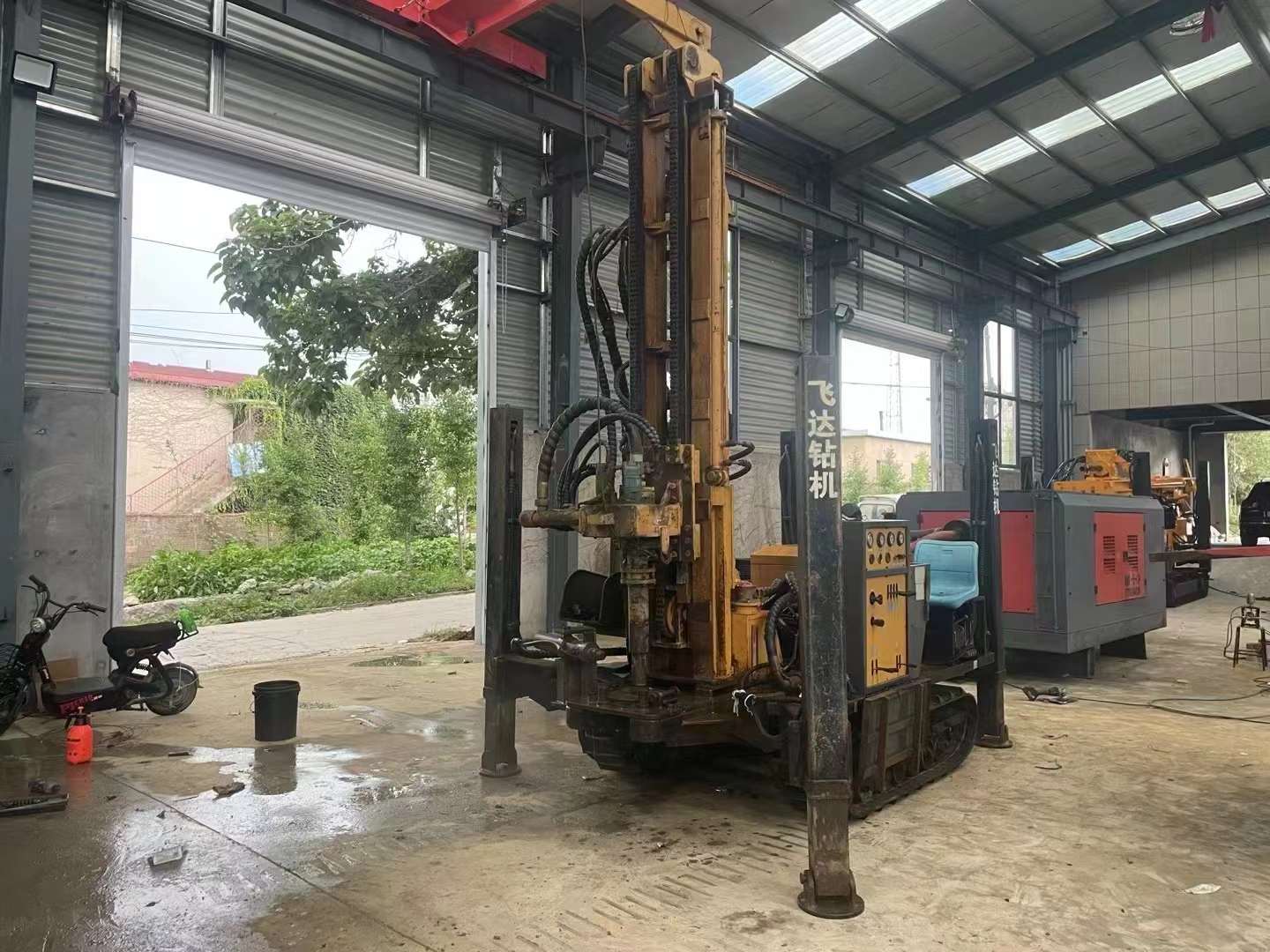

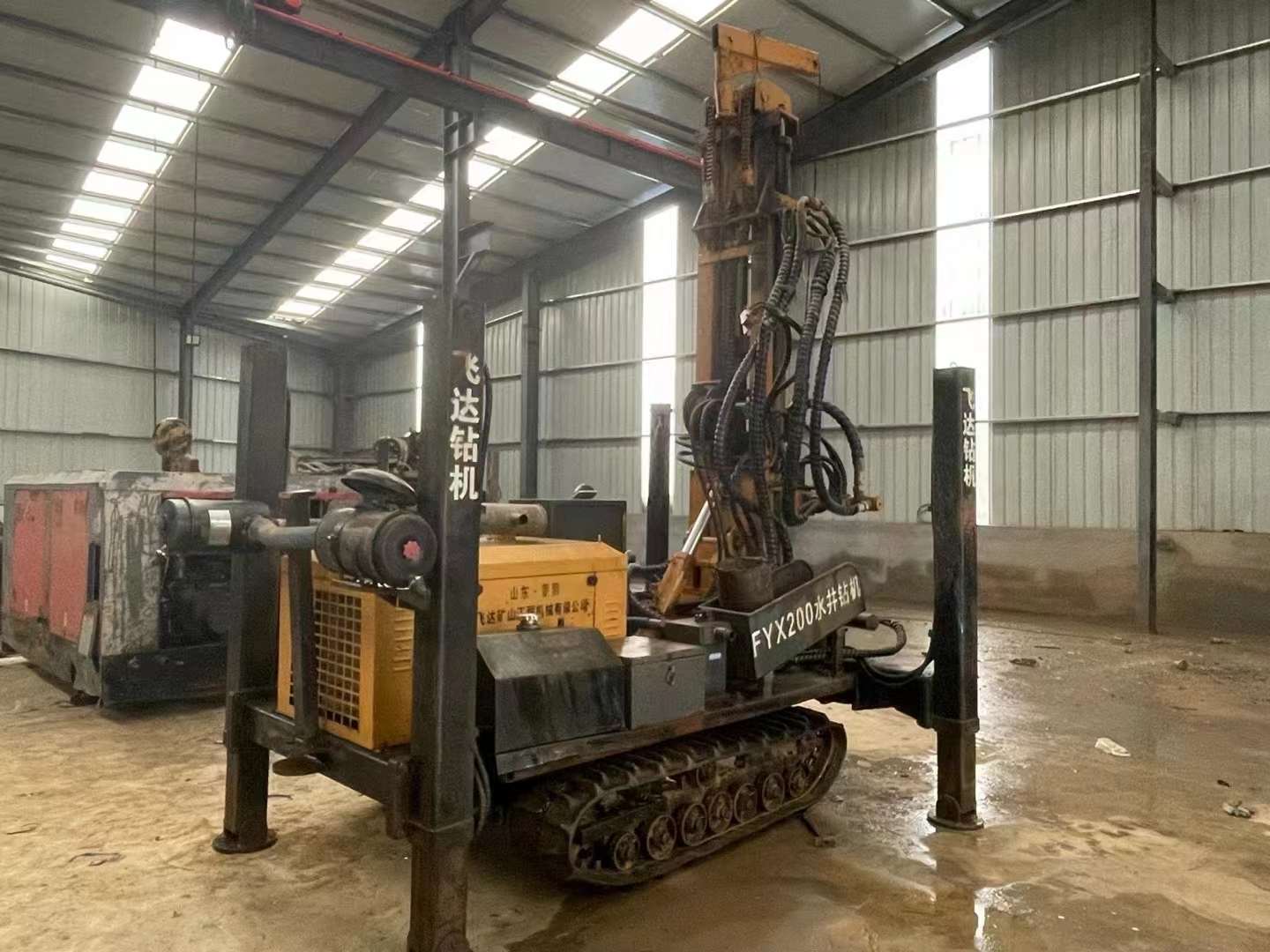

Water Drilling Machine
High Drilling Efficiency – Top drive system with full hydraulic control ensures fast, stable drilling.
Strong & Durable Power – Equipped with a reliable brand-name engine and reinforced boom structure.
Adaptable to Complex Terrain – Steel tracked chassis offers high mobility on rough roads.
Versatile Drilling Methods – Supports slurry, air, and foam drilling for various strata.
Fully Equipped System – Includes Italian oil pump, foam pump, winch, generator, and swing arm outriggers.
Product Description of FYX200 Water Well Drilling Rig
FY series deep(water) well drlling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Adopt steel tracked chassis，Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.
The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling,meeting the demands of well-drilling in different terrain strata.
FYX200 Water Well Drilling Rig features
1. Equipped with brand-name engine, strong power and long service life 2. Patented design compound boom, double oil cylinder lifting, strengthened tower 3. The drilling diameter is large, the drilling depth is deep, and the advancing speed is fast 4. (Oil pump imported from Italy) 3-way oil pump, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder
Specification of FYX200 Water Well Drilling Rig
Factory direct sales of various water well drilling rigs | |||||
Model | FYX200 | FY260 | FY280 | FY350 | FY580 |
The weight(T) | 5 | 6.5 | 7.6 | 8.6 | 12 |
Drill pipe diameter(mm) | 76/89 | 76/89 | 76/89 | 89/102 | 102/108/114 |
The hole diameter(mm) | 140-254 | 140-305 | 140-305 | 140-325 | 140-350 |
Drill pipe lenght(m) | 1.5m/2.0m/3.0m | 1.5m/2.0m/3.0m | 1.5m/2.0m/3.0m | 1.5m/2.0m/3.0m/6.0m | 1.5m/2.0m/3.0m/ 6.0m |
Drilling depth(m) | 200 | 260 | 280 | 350 | 600 |
Rig lifting force(T) | 13 | 15 | 17 | 22 | 28 |
One-tine advance length(m) | 3.3 | 3.3 | 6.6 | 6.6 | 6.6 |
Equipped capacitor(kw) | Quanchai 65 kW engine | Xi chai 70KW | YU chai 75KW | Cummins 93 kW engine | Cummins 132 kW engine |
Hoisting force of winch(T) | 1.5 | 1.5 | 2 | 2 | 2 |
Swing torque(N.m) | 3200-4600 | 4000-5300 | 4500-6000 | 6200-8500 | 8500-11000 |
Dimension(mm) | 3950*1750*2250 | 4000*1850*2300 | 5900*1850*2360 | 6000*2000*2550 | 6200*2200*2650 |
Swing speed(rpm) | 45-70 | 45-70 | 40-70 | 66-135 | 45-140 |
The penetration effciency(m/h) | 10-35 | 10-35 | 15-35 | 15-35 | 15-35 |
Rapid rise speed(m/min) | 20 | 24 | 25 | 18 | 20 |
Walking speed(km/h) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Fast feeding speed(m/min) | 40 | 28 | 30 | 33 | 40 |

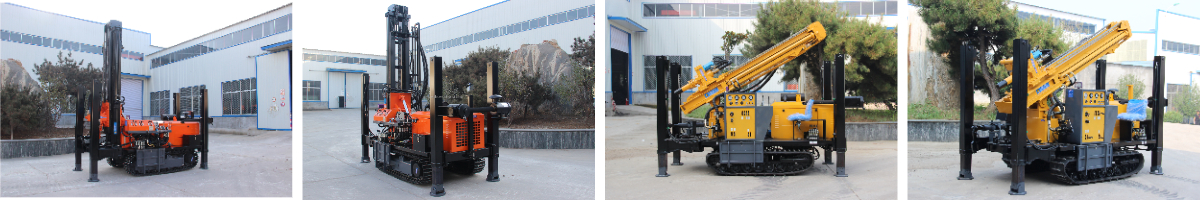

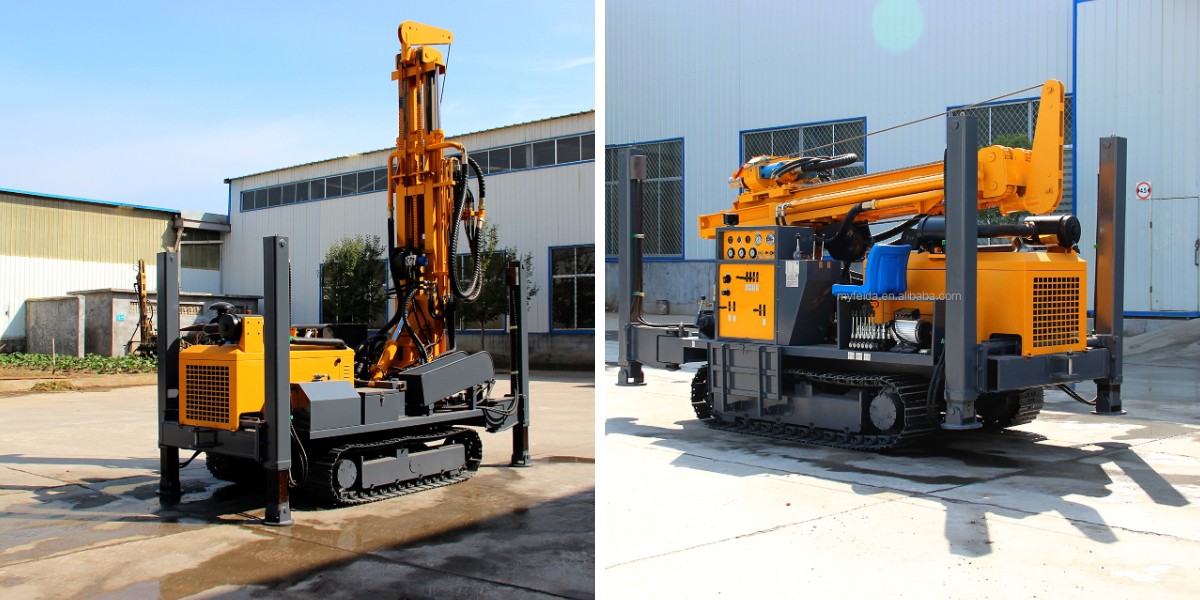

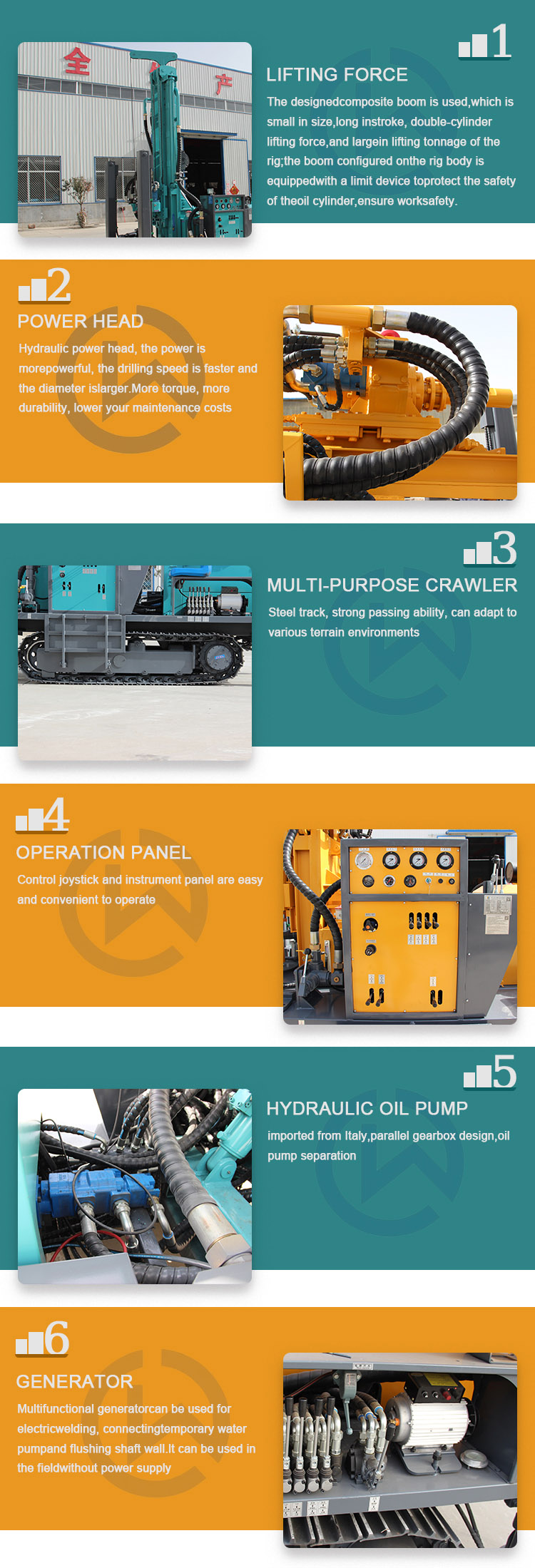

Detail Introduction of FYX200 Water Well Drilling Rig
Application of FYX200 Water Well Drilling Rig

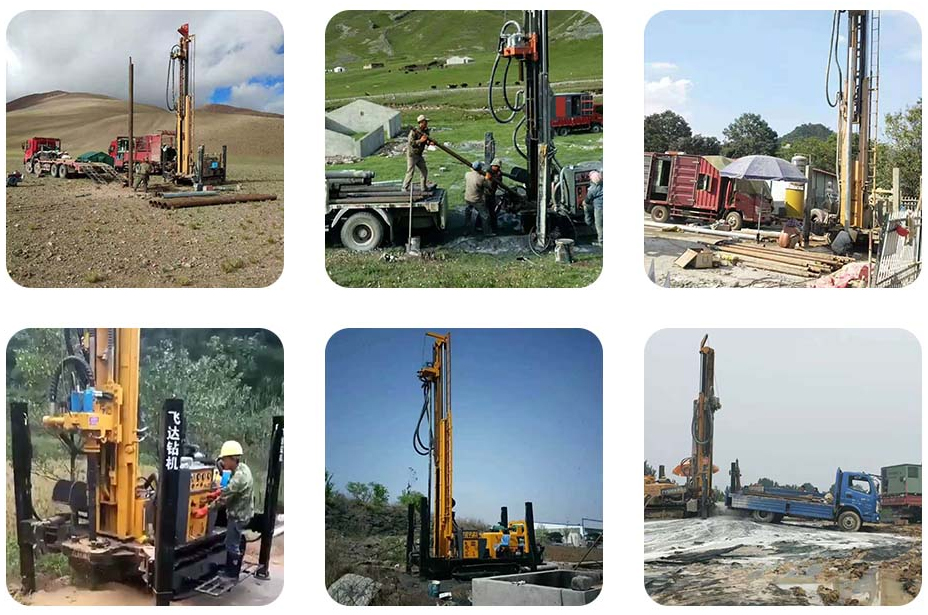

The following are feedback pictures from customers of water well drilling rigs, which are suitable for various working conditions

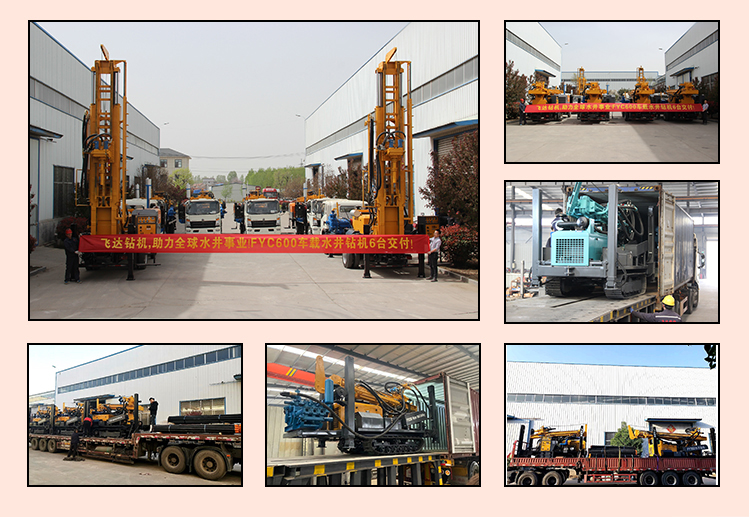

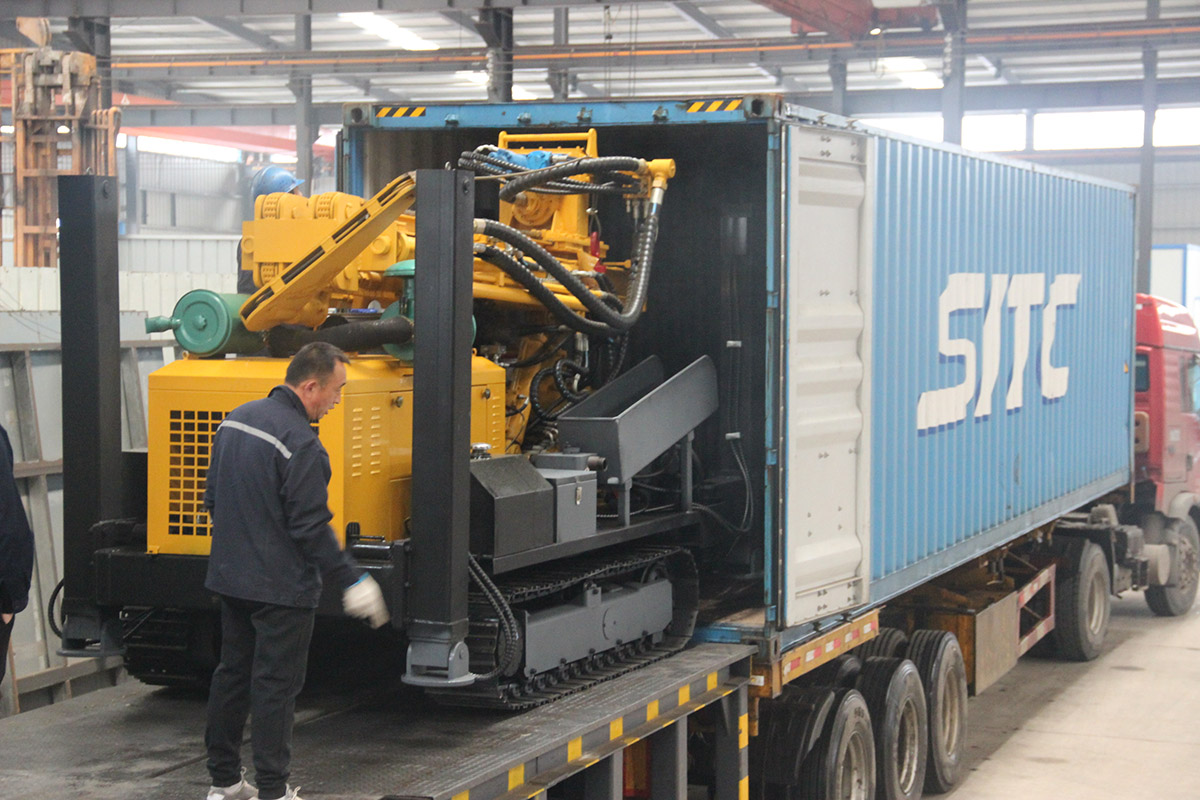

Packing & Delivery

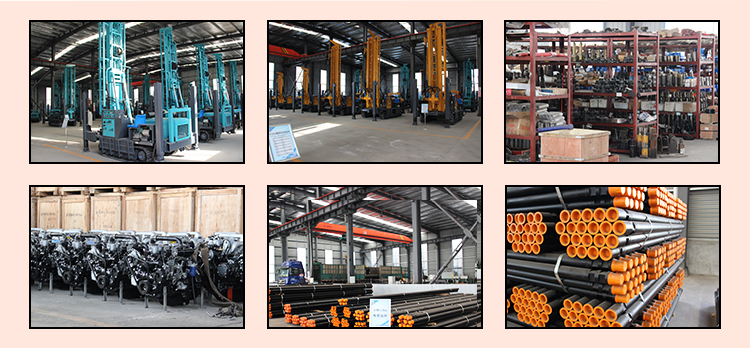

Warehouse to show
Real photos of Feida drilling rig factory
